166 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Operation
2. Touch the Stop button (1) to stop.
3. To reset the stopwatch to zero, touch the Reset button (1).

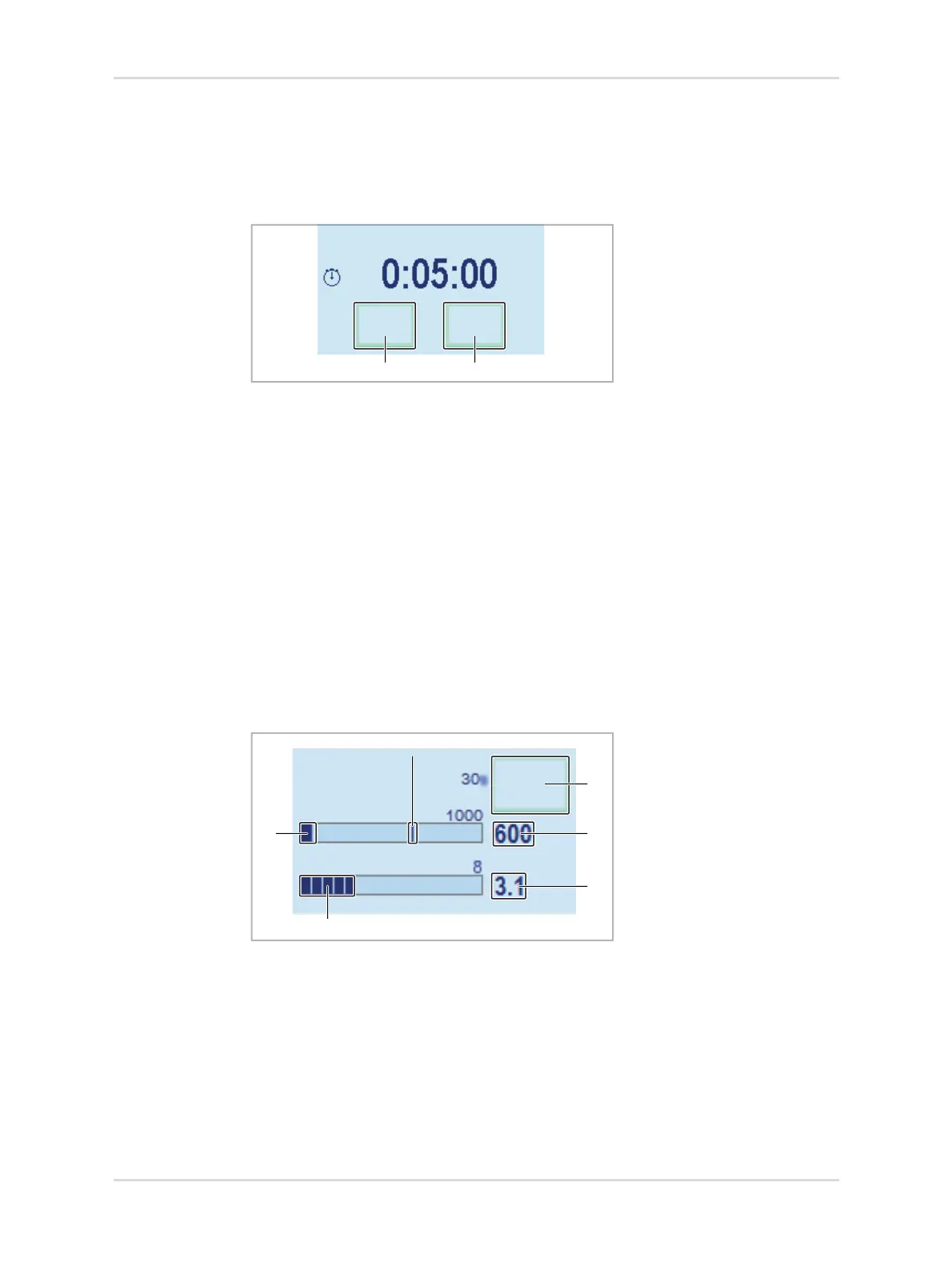

8.6.4 Timer
Setting the timer
1. Touch the Set button (1) or the parameter field.
2. Set the timer.
Using the timer
The timer always starts with the last time set.
1. Touch the Start button (1) to start.
2. Touch the Stop button (1) to stop.
3. To reset the timer to zero, touch the Reset button (1).
8.6.5 Volumeter
Prerequisite: The device has the "advanced ventilation monitoring" or "loops and
trends" software option.
The volumeter is used for observing and assessing the ventilation.
The bar graph indicates the inspiratory and expiratory tidal volume.
At the end of the inspiration, the delivered tidal volume is displayed as a bar (1).
At the end of the expiration, the difference between inspiratory and expiratory tidal
volumes (6) is displayed.
The expiratory tidal volume is displayed next to the bar graph (3).
Using the volumeter (minute volume measurement)
1. Touch the Start button (2) to start.
The bar graph displays the individual measured spontaneous breaths in
segments (5). The summed volume (4) is displayed next to the bar graph.
