Saving the reference loop:
● Touch the Save ref. button (1).
Deleting the reference loop:
● Touch the Delete ref. button (2).
For the area (3), these buttons are displayed in the Quick setup dialog.
8.7.5 Displaying mini-trends
Prerequisite: The device has the "advanced trends" or "loops and trends" software
option.

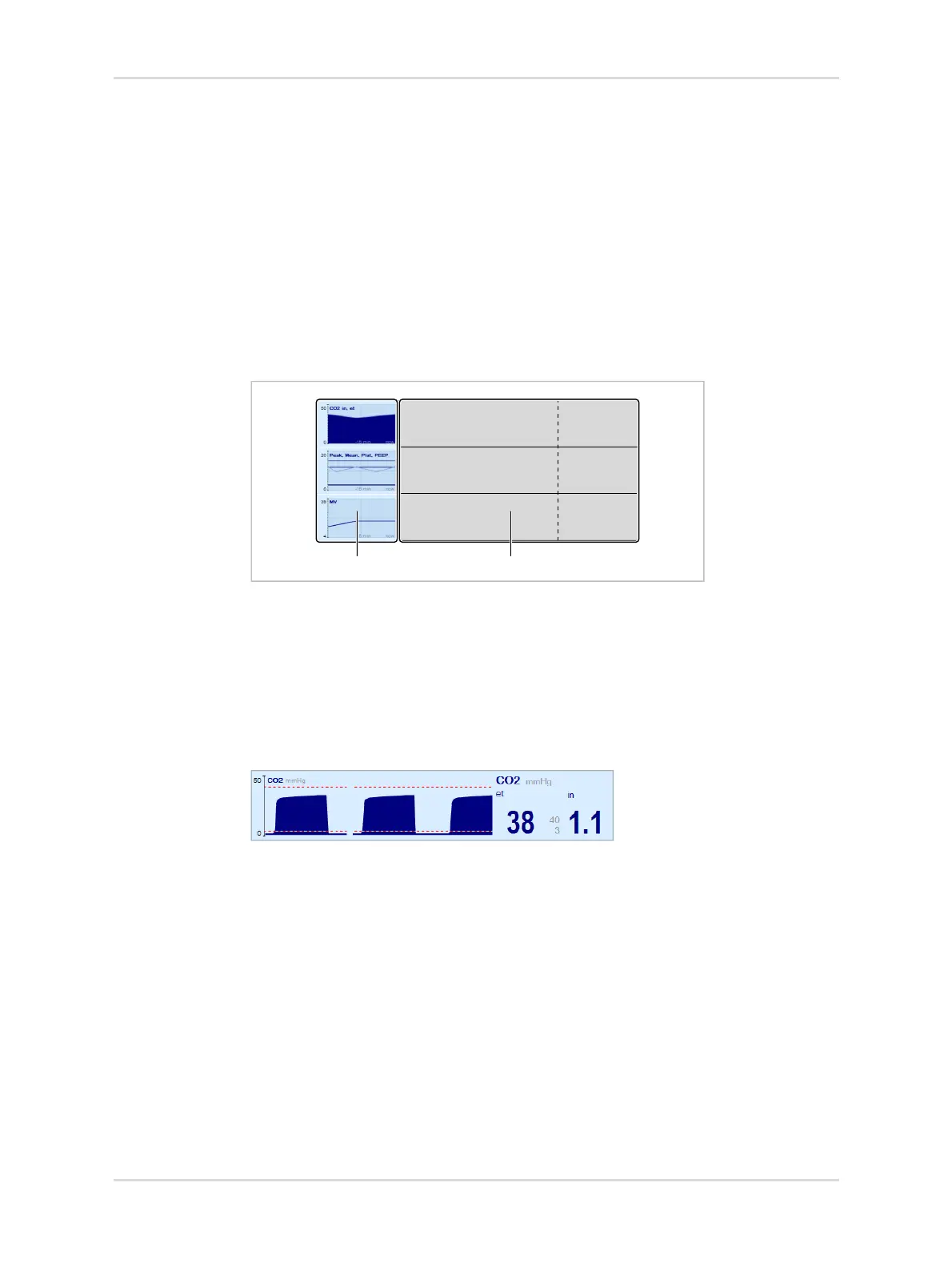

Mini-trends (2) can be displayed for the waveforms (1).
1. Open the Views dialog.
2. Touch the Mini-trends button.
For larger and more detailed graphical and numerical trends, see page 176.
8.7.6 Displaying alarm limits and units of measurement
The alarm limits and the units of measurement can also be displayed in the
waveform and parameter fields.
1. Open the Views dialog.
2. Touch the Limits & units button.
