20 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Overview

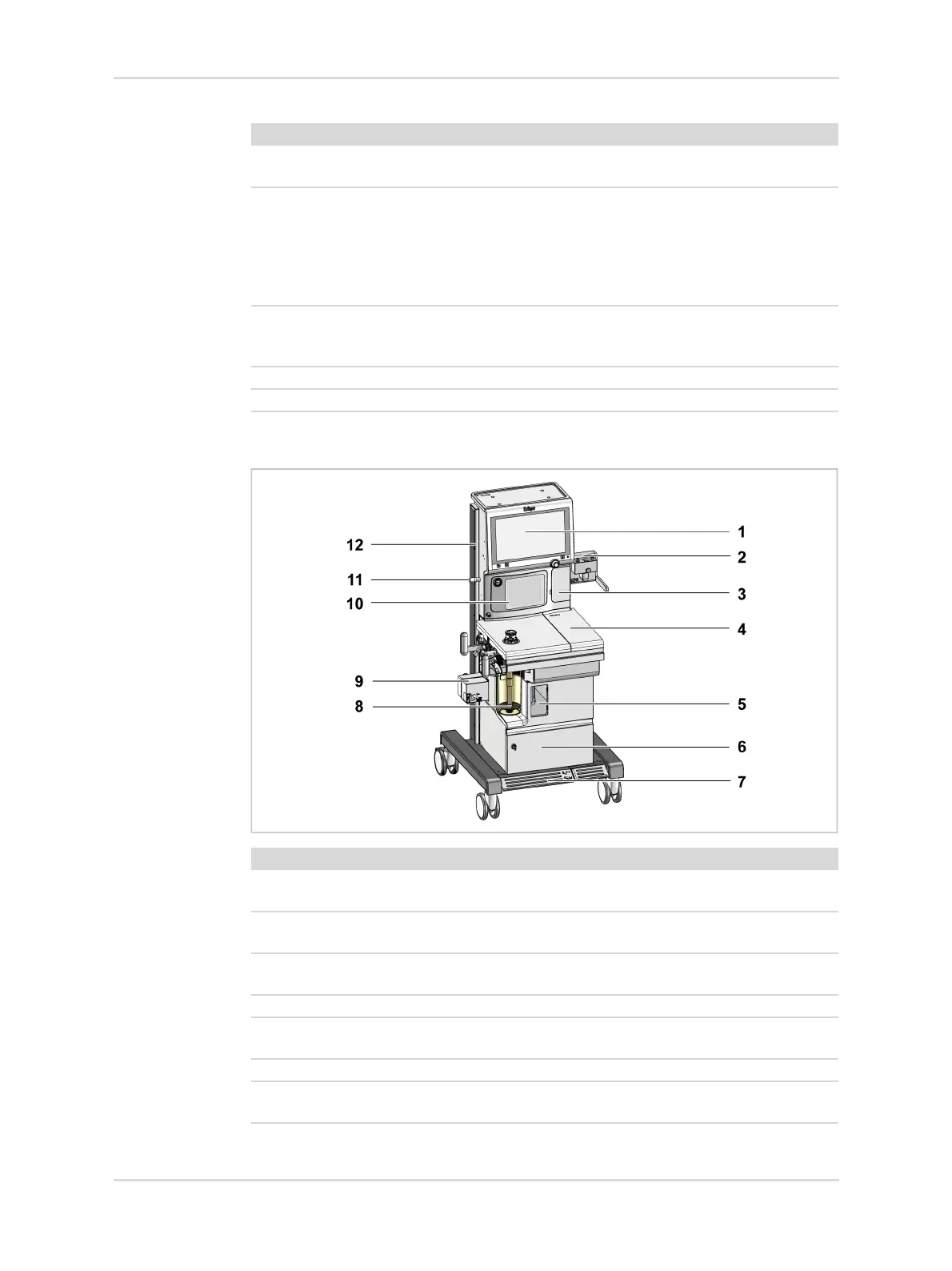

3.1.1.2 Compact version
10 CO
2 absorber Absorbs CO2 from the patient's expiratory
gas.
11 Anesthetic gas receiving sys-
tem
Used for scavenging excess anesthetic gas
and breathing gas. Used to reduce the
anesthetic gas concentration released into
the environment by the anesthesia machine
and to scavenge the sample gases from an
external anesthetic gas monitor.
12 External fresh-gas outlet Gas outlet for a mixture of fresh gas and
anesthetic gas which is fed to a non-
rebreathing system.
13 External O
2 flowmeter Supplies oxygen for O2 insufflation.
14 Rail Used for fastening additional components.
No. Designation Description
36438
No. Designation Description
1 Screen Enables user inputs by touchscreen and
rotary knob.
2 Plug-in connectors for vaporiz-
ers
Enable the connection of 1 or 2 vaporizers.
3 Backup manual switch (behind
the flap)
Used to switch to backup manual mode in
the event of malfunctions of the device.
4 Work surface Used for storage.
5 Viewing window for piston ven-
tilator
Allows visual checking of the movement of
the piston ventilator.
6 Lockable drawer Provides additional storage space.
7 Trolley with castors and cable
deflectors
Used for moving the device. The central
brake locks the two front castors.
