Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 21
Overview

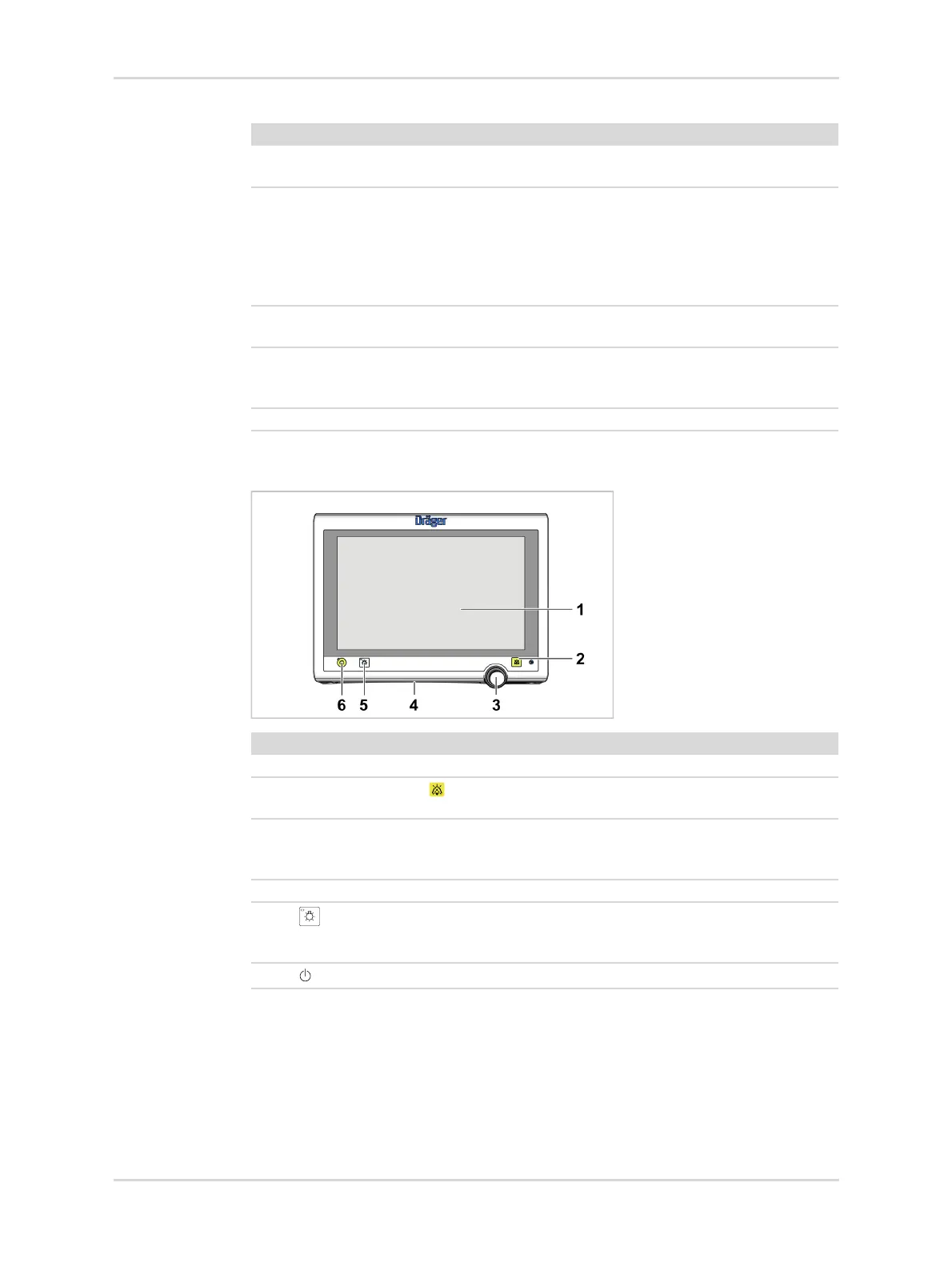

3.1.2 Screen
8CO2 absorber Absorbs CO2 from the patient's expiratory
gas.
9 Anesthetic gas receiving sys-
tem
Used for scavenging excess anesthetic gas
and breathing gas. Used to reduce the
anesthetic gas concentration released into
the environment by the anesthesia machine
and to scavenge the sample gases from an
external anesthetic gas monitor.
10 Gas mixing unit Produces a gas mixture from the selected
gases (e.g., O
2 and Air).
11 External fresh-gas outlet Gas outlet for a mixture of fresh gas and
anesthetic gas which is fed to a non-
rebreathing system.
12 Rail Used for fastening additional components.
No. Designation Description
36441
No. Designation Description
1 Touchscreen Calls up functions or dialogs when touched.
2
Alarm silence key
Suppresses the alarm tones of all active
alarms for 2 minutes.
3 Rotary knob Used for selecting, adjusting, and confirm-
ing settings. Lights up in color in certain sit-
uations.
4 Working light Illuminates the work surface.
5
key
Turns the working light on or off. Dims the
illuminance in 3 steps (dark, medium, and
bright).
6
key
Turns the device on or off.
