22 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Overview
3.1.3 Breathing system and other components
3.1.3.1 Overview

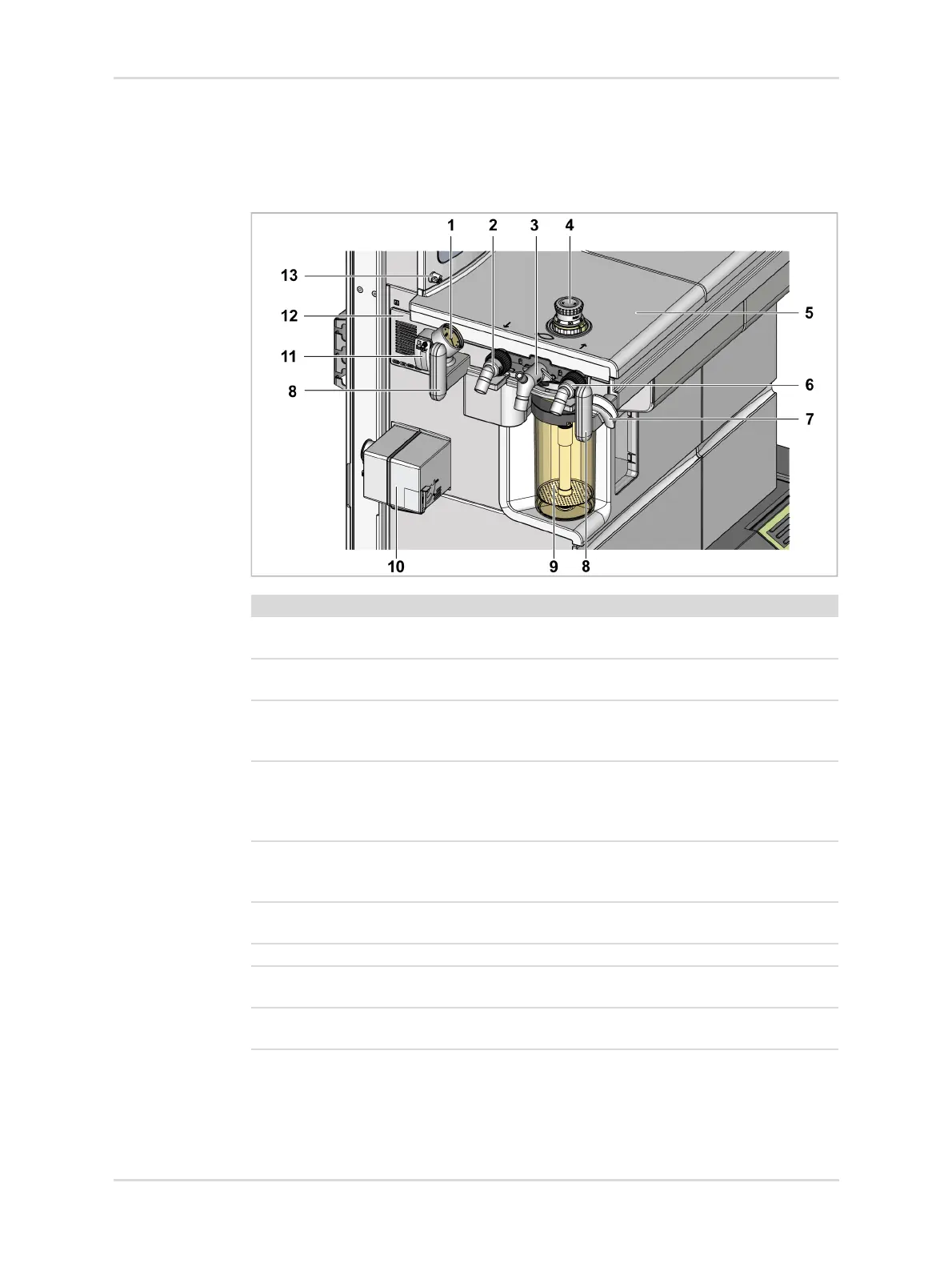

The following illustration shows the device and the breathing system.
36446
No. Designation Description
1 Airway pressure gauge Mechanically measures the airway pressure
and displays it on an analog indicator.
2 Inspiratory port Used to connect the inspiratory hose to the
device.
3 Bag elbow with circuit plug Used to connect the breathing bag hose.
The circuit plug is used to seal the Y-piece
during an automatic test.
4 APL valve In the Man/Spon mode: Limits the maxi-
mum airway pressure to the set value
(during manual ventilation: Man) or enables
spontaneous breathing when set to Spont.
5 Breathing system cover Protects the breathing system underneath
and provides climate control for the breath-
ing system.
6 Expiratory port Used to connect the expiratory hose to the
device.
7 Holder Used for parking the breathing bag hose.
8 Handles Used for positioning the device and for
stowing used breathing hoses.
9CO
2 absorber Absorbs CO2 from the patient's expiratory
gas.
