Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n 77
Assembly and preparation

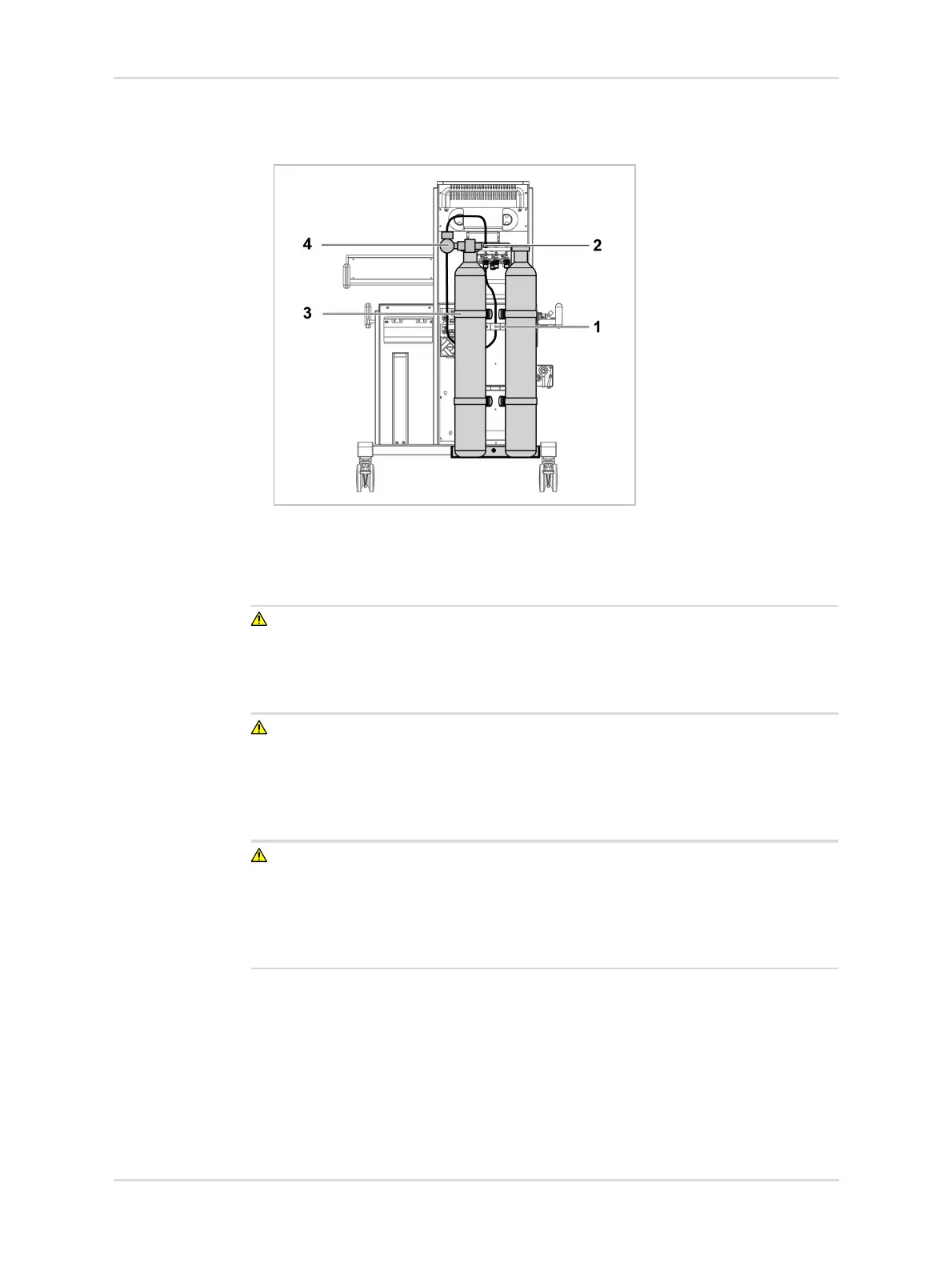

1. Insert the compressed gas hoses into the strain relief (1). Tighten the strain
relief.
2. Check that the pressure measuring lines above the gas inlets are correctly
connected (2).
3. Place the gas cylinders (3) in the gas cylinder holders. Secure with hook-and-
loop straps.
WARNING
Risk of personal injury and damage to the device
Pressure reducers have an internal release valve. If a fault occurs, gas may escape
into the ambient air.
► Do not block or cover the release valve.
WARNING
Risk of fire
If the device collides with an obstacle during transport, the pressure reducers may
be damaged.
► When connecting the pressure reducers, ensure that they do not protrude
beyond the device.
WARNING
Risk of fire
The connectors on the gas cylinders and pressure reducers must be undamaged
and free from dust, particles, and grease. Otherwise, there is risk of fire.
► When handling pressure reducers, follow the relevant national laws and
regulations.
4. Tightly screw the pressure reducers (4) to the gas cylinder valves. The
connectors must fit each other directly. Do not use an adapter.
5. If no gas cylinders are connected, secure the pressure reducers (4) with the
hook-and-loop straps (3) so they do not bang against the rear of the device.
