Assembly and preparation
4.5.2.2 Connecting suspended gas cylinders with pin-index connectors

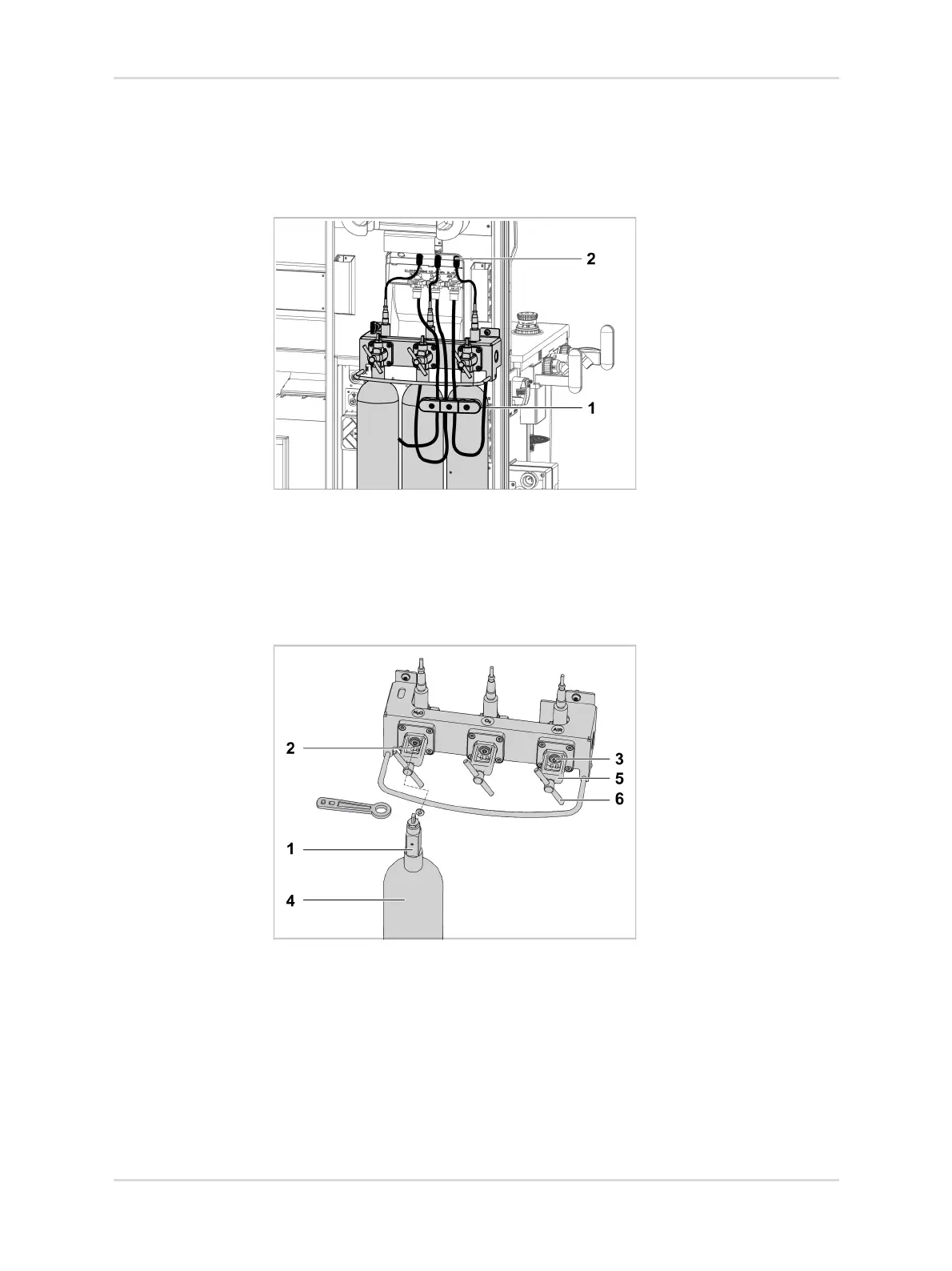

Before first use
1. Insert the compressed gas hoses into the strain relief (1) on the rear of the
device. Tighten the strain relief.
2. Connect the pressure measurement lines to the connectors (2).
3. The gas cylinder holder can be fastened at 2 different heights (not shown in this
illustration). Adjust the position of the gas cylinder holder to the size of the gas
cylinder in use. Contact service personnel to do this.
Fitting the gas cylinders
1. Remove the protection cap from the head of the cylinder (1).
2. Make sure that both pin-index pins (2) are present below the gas inlet (3).
3. Align the gas cylinder (4) so that the pin-index holes on the head of the
cylinder (1) are pointing towards the pin-index pins (2).
4. Insert the head of the cylinder (1) into the cylinder holder (5) from below.
5. Allow the pin-index pins (2) to engage in the pin-index holes.
6. Turn the handle (6) clockwise until the threaded stud is slightly screwed into the
visible recess on the head of the cylinder.
Align the gas cylinder (4) so that it is hanging vertically.
7. Tighten the handle (6).
3649236491
