96 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Assembly and preparation

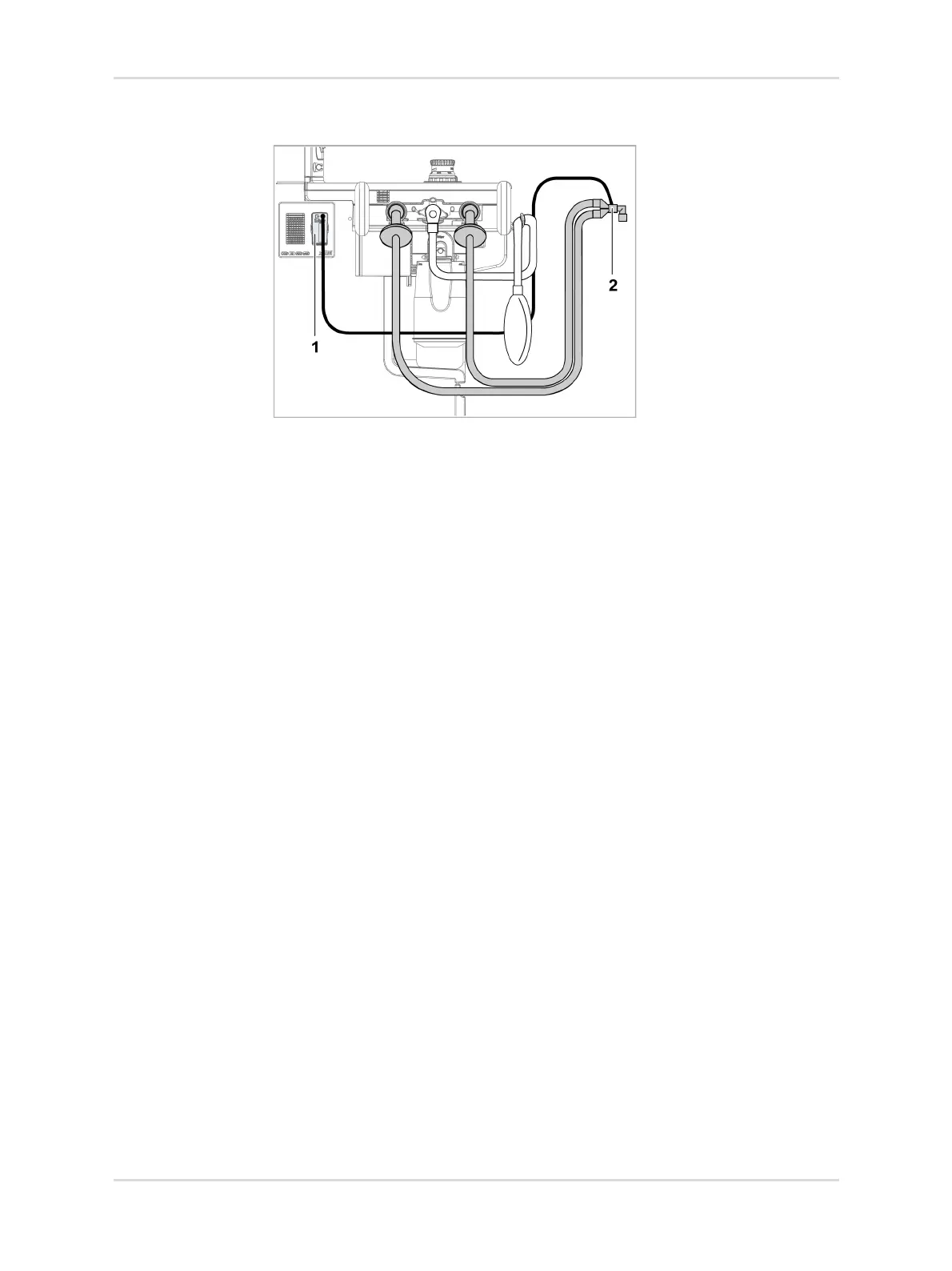

1. Connect one end of the sample line to the water trap (1).
2. Connect the other end of the sample line to a suitable port (2), e.g., on a filter,
HME, Y-piece, tube adapter, or hose adapter (see "Permissible hose
configurations", page 87).
3. Ensure the following:
– Ensure the correct course of the sample line.
– Particularly when ventilating pediatric patients and neonates, a sample line
connection close to the patient can improve the quality of the measured CO
2
values. Observe the following information: "CO
2 measurement with pediatric
patients and neonates", page 321.
– Particularly when ventilating pediatric patients and neonates, ensure a small
volume (dead space) (e.g., for HMEs or for tube adapters for connecting the
sample line).
37741
