98 Instructions for use | Atlan A100 (XL), A300 (XL), A350 (XL) SW 2.1n
Operating concept

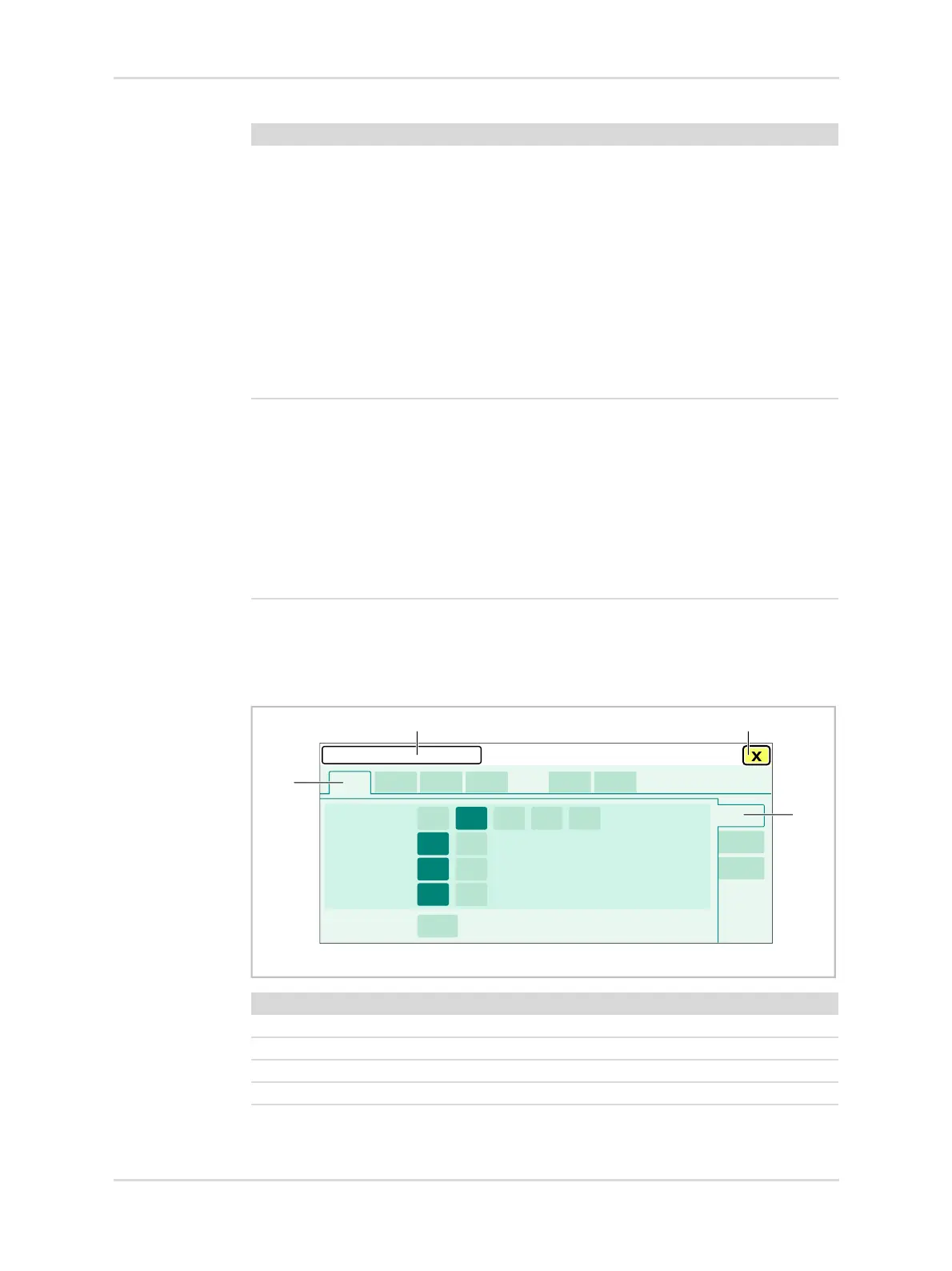

5.1.2 Dialogs
Dialogs consist of one or more pages which are displayed by touching the
corresponding horizontal or vertical tab.
3 Monitoring area The following information can be displayed in the moni-
toring area if the device has the corresponding equip-
ment:
– Gas measurement
– Waveforms
– Parameter fields
– Loops (Pressure-Volume and Flow-Volume)
– Mini-trends
– Virtual flow tubes
The current view can be adapted (see "Customizing the
current view", page 171).
4 Therapy bar The therapy settings can be adjusted in the therapy bar.
Electronically controlled gas mixer:
– Ventilation modes
– Ventilation parameters
– Fresh-gas delivery
Mechanically controlled gas mixer:
– Ventilation modes
– Ventilation parameters
No. Designation
34766
No. Designation
1 Title of the dialog
2 Button for closing the dialog
3 Vertical tab to open subordinate structures
4 Horizontal tab to open a page
