Dräger VarioGard User Manual

03223572en 03123572en 03023572en

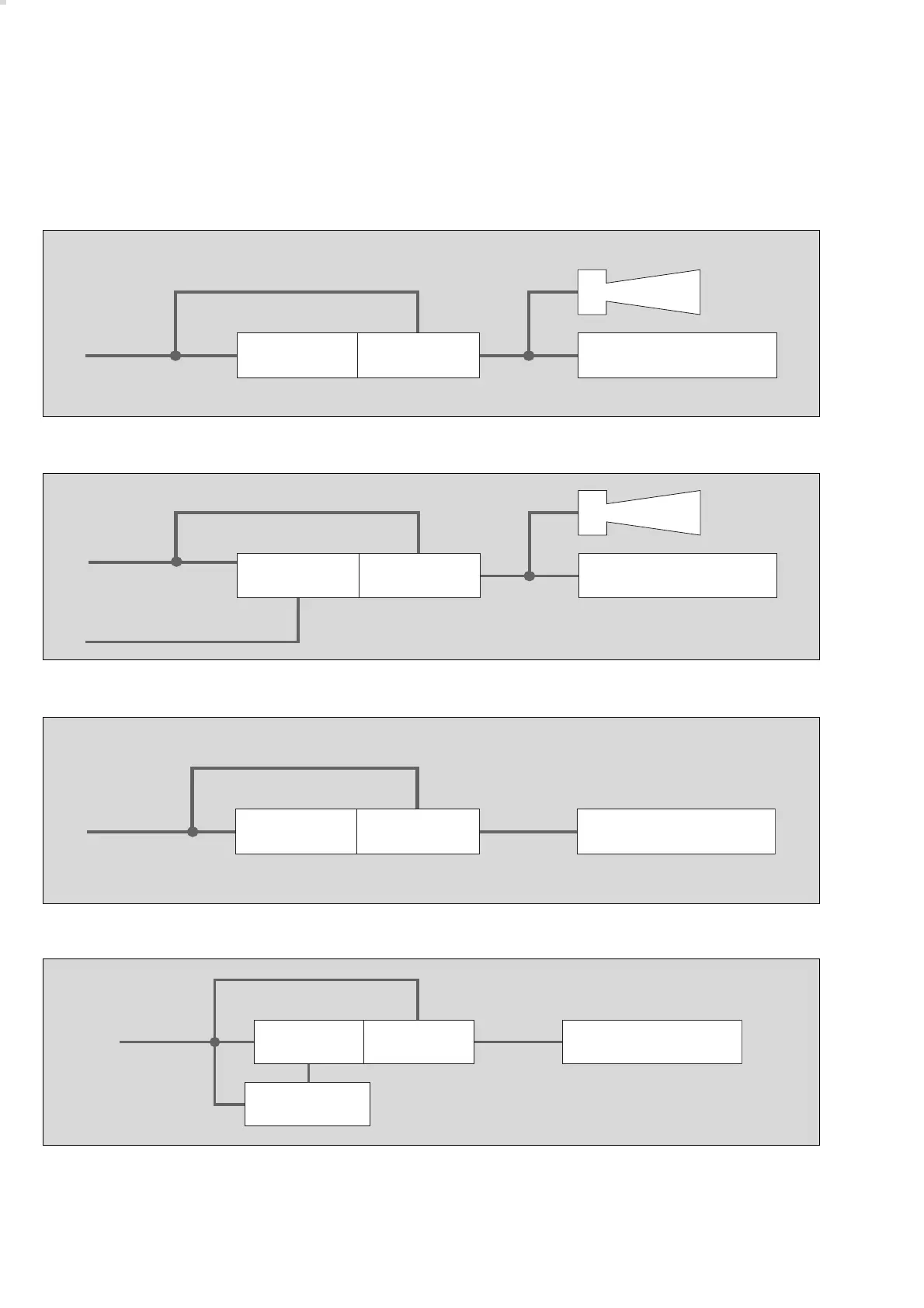

(Emergency power) installation layouts for car parks:
Customer's emergency power supply 115 / 230 V:
28 volt UPS supply with buffer time over 60 minutes:
Decentralised small system buffering without measuring function:
VarioGard battery module:
VarioGard Relay Module and VarioGard Converter Module
Installation according the installation instructions 90 23 577 or 90 23 578.
52
Installing the VarioGard system
Electrical installation
Central
unit
Relay
Warning panel 230 V
Siren 230 V
Emergency
supply
230 V
UPS 28 V
over 1 hour
Mains 230 V
Central
unit
Relay
Warning panel 24 V
Siren 24 V
Warning panel 24 V
with battery for 1 hour
Mains 230 V
Central
unit
Relay
05123572en
Central
unit
Battery module
28 V
Relay
Warning panel 24 V
with battery for 1 hour
Mains
115 / 230 V
