Vigor2120 Series User’s Guide
134
traffic flowing on each channel will be identified by the
system via their VLAN Tags. Channels using the same
WAN type may not configure the same VLAN tag value.
Priority – Choose the number to determine the packet
priority for such VLAN. The range is from 0 to 7.
Open Port-based Bridge
Connection for this
Channel
The settings here will create a bridge between the LAN
ports selected and the WAN. The WAN interface of the
bridge connection will be built upon the WAN type selected
using the VLAN tag configured.
Physical Members – Group the physical ports by checking
the corresponding check box(es) for applying the port-based
bridge connection.
Open WAN Interface for
this Channel
Check the box to enable relating function.
WAN for Router-borne Application - Management can
be specified for general management (Web
configuration/telnet/TR069). If you choose Management,
the configuration for this VLAN will be effective for Web
configuration/telnet/TR069.
IPTV - The IPTV configuration will allow the WAN
interface to send IGMP packets to IPTV servers.

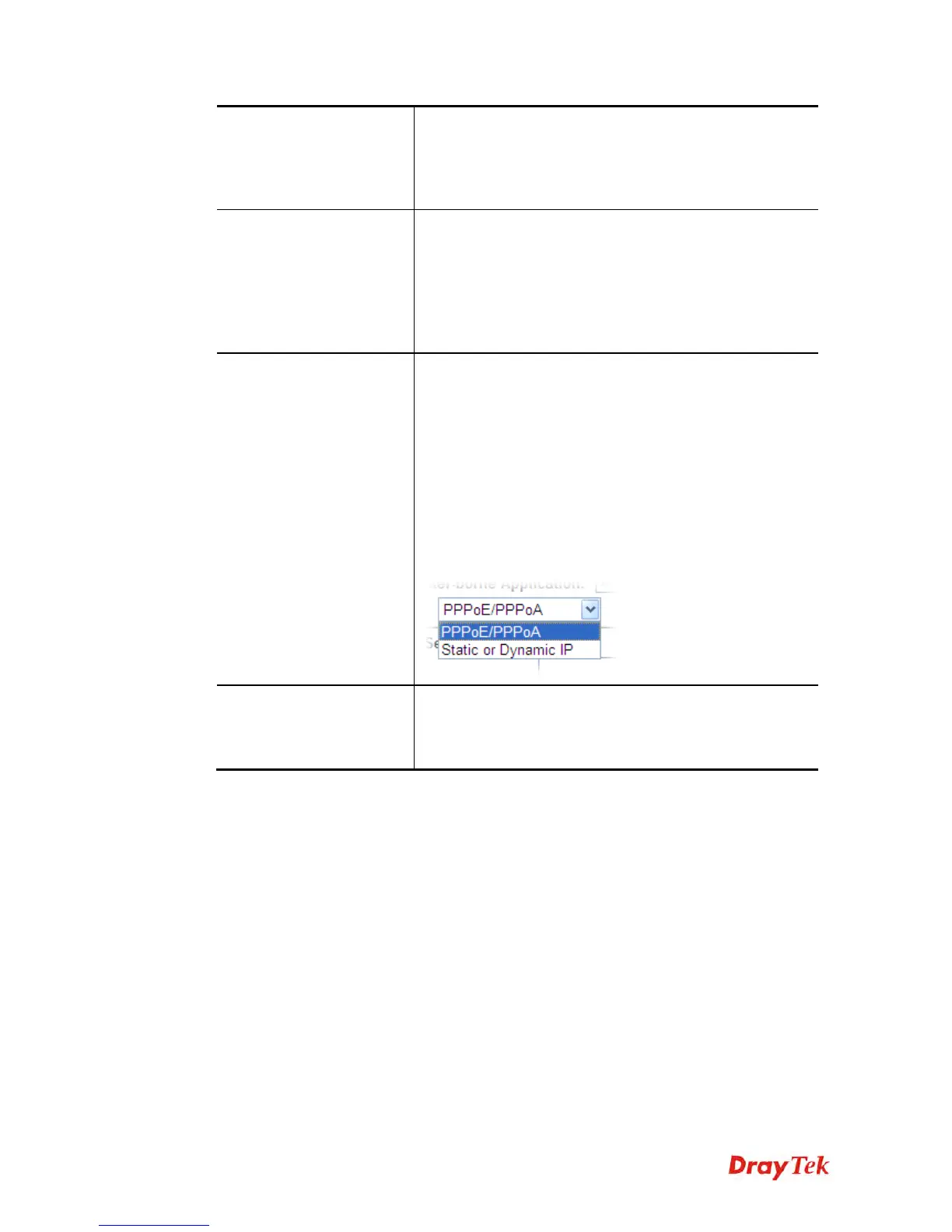

WAN Setup – Choose PPPoE/PPPoA or Static or
Dynamic IP to determine what WAN settings must be
configured.
ISP Access Setup, IP
Address From ISP, WAN
IP Network Settings, DNS
Server IP Address
For other settings, refer to Details Page for PPPoE / Static
or Dynamic IP in WAN1.
After finished the above settings, click OK to save the settings.
