Vigor2620 Series User’s Guide
259
8.

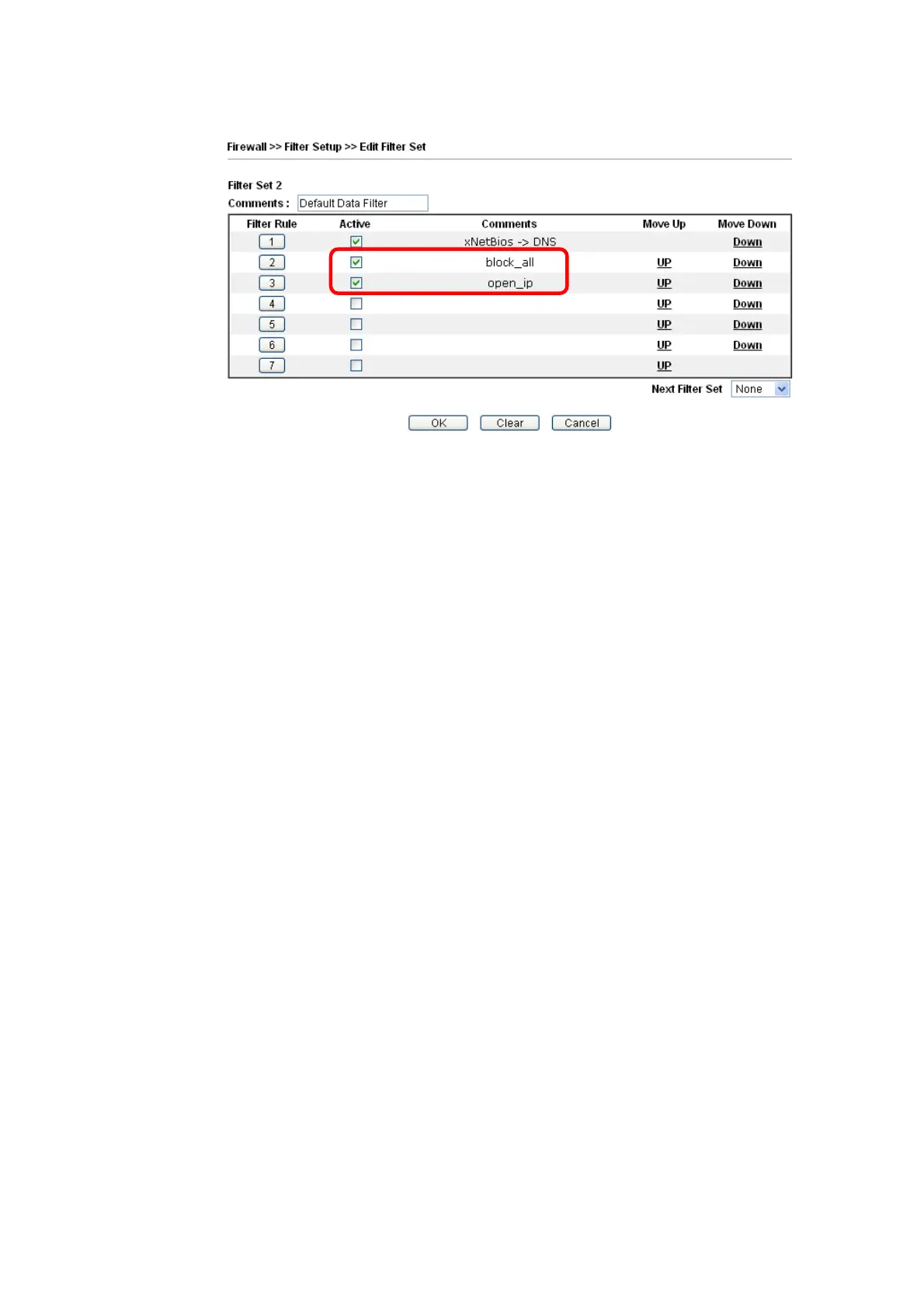

Both filter rules have been created. Click
OK
.
Now, all the settings are config
ured well. Only the computers with the IP addresses within
192.168.1.10
~ 192.168.1.
20 can access to Internet.
270
272
Table of Contents
Default Chapter
4
Table of Contents
4
Part I Installation
11
Introduction
13
I-1-1 Indicators and Connectors
14
Hardware Installation
18
I-2-1 Network Connection Via LTE
18
I-2-2 Network Connection Via DSL
19
I-2-3 Wall-Mounted Installation
20
Accessing Web Page
21
Changing Password
23
Dashboard
24
I-5-1 Virtual Panel
25
I-5-2 Name with a Link
25
I-5-3 Quick Access for Common Used Menu
26
I-5-4 GUI Map
27
I-5-5 Web Console
28
I-5-6 Config Backup
28
I-5-7 Logout
29
I-5-8 Online Status
29
I-5-8-1 Physical Connection
29
I-5-8-2 Virtual WAN
31
Quick Start Wizard
32
I-6-1 Lte
33
I-6-2 Wan1 (Adsl/Vdsl2)
35
I-6-3 WAN2 (Ethernet)
41
Service Activation Wizard
50
Registering Vigor Router
52
Part II Connectivity
55
Lte
56
Web User Interface
57
II-1-1 General Settings
57
II-1-1-1 SMS Quota
57
II-1-1-2 SMS Inbox
58
II-1-2 SMS Inbox
59
II-1-3 Send SMS
62
II-1-4 Router Commands
63
II-1-5 Status
65
Wan
67
Web User Interface
68
II-2-1 General Setup
68
II-2-1-1 Wan1
68
II-2-1-2 Lte
70
II-2-2 Internet Access
71
II-2-2-1 Details Page for Pppoe/Pppoa in WAN1 (Physical Mode: ADSL)
72
II-2-2-2 Details Page for Mpoa/Static or Dynamic IP in WAN1 (Physical Mode: ADSL) .64 II-2-2-3 Details Page for Pppoe in WAN1 (Physical Mode: VDSL2)
80
II-2-2-4 Details Page for Mpoa/Static or Dynamic IP in WAN1 (Physical Mode: VDSL2) 71 II-2-2-5 Details Page for Pppoe in WAN2 (Physical Mode: Ethernet)
86
II-2-2-6 Details Page for Static or Dynamic IP in WAN2 (Physical Mode: Ethernet)
88
II-2-2-7 Details Page for PPTP
92
II-2-2-8 Details Page for Ipv6 - Offline
94
II-2-2-9 Details Page for Ipv6 - PPP
94
II-2-2-10 Details Page for Ipv6 - TSPC
95
II-2-2-11 Details Page for Ipv6 - AICCU
97
II-2-2-12 Details Page for Ipv6 - Dhcpv6 Client
98
II-2-2-13 Details Page for Ipv6 - Static Ipv6
99
II-2-2-14 Details Page for Ipv6 - 6In4 Static Tunnel
100
II-2-2-15 Details Page for Ipv6 - 6Rd
102
II-2-3 Multi-PVC/VLAN
104
Application Notes
109
How to Configure Ipv6 on WAN Interface
109
Lan
114
Web User Interface
116
II-3-1 General Setup
116
II-3-1-1 Details Page for LAN1 - Ethernet TCP/IP and DHCP Setup
118
II-3-1-2 Details Page for LAN2
120
II-3-1-3 Details Page for IP Routed Subnet
122
II-3-1-4 Details Page for LAN Ipv6 Setup
124
II-3-1-5 Advanced DHCP Options
127
II-3-2 Vlan
129
II-3-3 Bind IP to MAC
132
Nat
136
Web User Interface
137
II-4-1 Port Redirection
137
II-4-2 DMZ Host
141
II-4-3 Open Ports
144
II-4-4 Alg
146
Applications
148
Web User Interface
149
II-5-1 Dynamic DNS
149
II-5-2 Schedule
152
II-5-3 Radius
155
II-5-4 Upnp
156
II-5-5 Igmp
157
II-5-5-1 General Setting
157
II-5-5-2 Working Group
158
II-5-6 SMS Alert Service
159
Application Notes
160
How to Use Drayddns
160
How to Configure Customized DDNS
165
Routing
169
Web User Interface
170
II-6-1 Static Route
170
Part III Wireless LAN
175
Wireless LAN
176
Web User Interface
180
III-1-1 Wireless Wizard
180
III-1-2 General Setup
183
III-1-3 Security
185
III-1-4 Access Control
187
III-1-5 Wps
188
III-1-6 Wds
190
III-1-7 Advanced Setting
193
III-1-8 AP Discovery
196
III-1-9 Station List
197
Part IV VPN
199
VPN and Remote Access
200
Web User Interface
201
IV-1-1 VPN Client Wizard
201
IV-1-2 VPN Server Wizard
207
IV-1-3 Remote Access Control
211
IV-1-4 PPP General Setup
212
IV-1-5 Ipsec General Setup
214
IV-1-6 Ipsec Peer Identity
216
IV-1-7 Remote Dial-In User
218
IV-1-8 LAN to LAN
221
IV-1-9 Connection Management
231
Ssl Vpn
232
Web User Interface
233
IV-2-1 General Setup
233
IV-2-2 User Account
234
IV-2-3 SSL Portal Online User
238
Certificate Management
239
Web User Interface
240
IV-3-1 Local Certificate
240
IV-3-2 Trusted CA Certificate
244
IV-3-3 Certificate Backup
246
Part V Security
247
Firewall
248
Web User Interface
250
V-1-1 General Setup
250
V-1-2 Filter Setup
255
V-1-3 Dos Defense
264
V-1-3-1 Dos Defense
264
V-1-3-2 Spoofing Defense
267
Application Notes
268
How to Configure Certain Computers Accessing to Internet
268
Central Security Management (CSM)
272
Web User Interface
273
V-2-1 APP Enforcement Profile
273
V-2-2 URL Content Filter Profile
275
V-2-3 Web Content Filter Profile
279
Application Notes
283
How to Create an Account for Myvigor
283
How to Block Facebook Service Accessed by the Users Via Web Content Filter / URL Content Filter
288
Part VI Management
295
System Maintenance
296
Web User Interface
297
VI-1-1 System Status
297
VI-1-3 Administrator Password
301
VI-1-4 User Password
302
VI-1-5 Configuration Backup
304
VI-1-6 Syslog/Mail Alert
306
VI-1-7 Time and Date
308
VI-1-8 Snmp
309
VI-1-9 Management
311
VI-1-10 Panel Control
314
VI-1-11 Self-Signed Certificate
315
VI-1-12 Reboot System
317
VI-1-13 Firmware Upgrade
318
VI-1-14 Activation
319
Bandwidth Management
321
Web User Interface
323
VI-2-1 Sessions Limit
323
VI-2-2 Bandwidth Limit
325
VI-2-3 Quality of Service
327
Application Notes
334
How to Optimize the Bandwidth through Qos Technology
334
Central Management (AP)
338
Web User Interface
339
VI-3-1 Dashboard
339
VI-3-2 Status
340
VI-3-3 WLAN Profile
341
VI-3-4 AP Maintenance
346
VI-3-5 Traffic Graph
347
VI-3-6 Temperature Sensor
348
VI-3-7 Event Log
348
VI-3-8 Total Traffic
349
VI-3-9 Station Number
349
VI-3-10 Load Balance
350
Part VII Others
353
Objects Settings
354
Web User Interface
355
VII-1-1 IP Object
355
VII-1-2 IP Group
359
VII-1-3 Ipv6 Object
360
VII-1-4 Ipv6 Group
362
VII-1-5 Service Type Object
363
VII-1-6 Service Type Group
365
VII-1-7 Keyword Object
367
VII-1-8 Keyword Group
369
VII-1-9 File Extension Object
370
VII-1-10 SMS Service Object
372
VII-1-11 Notification Object
375
VII-1-12 String Object
377
Application Notes
378
How to Send a Notification to Specified Phone Number Via SMS Service in WAN Disconnection
378
Part VIII Troubleshooting
383
VIII-1 Diagnostics
384
Web User Interface
385
VIII-1-1 Dial-Out Triggering
385
VIII-1-2 Routing Table
386
VIII-1-3 ARP Cache Table
387
VIII-1-4 Ipv6 Neighbour Table
388
VIII-1-5 DHCP Table
389
VIII-1-6 NAT Sessions Table
390
VIII-1-7 DNS Cache Table
391
