Vigor2920 Series User’s Guide

102

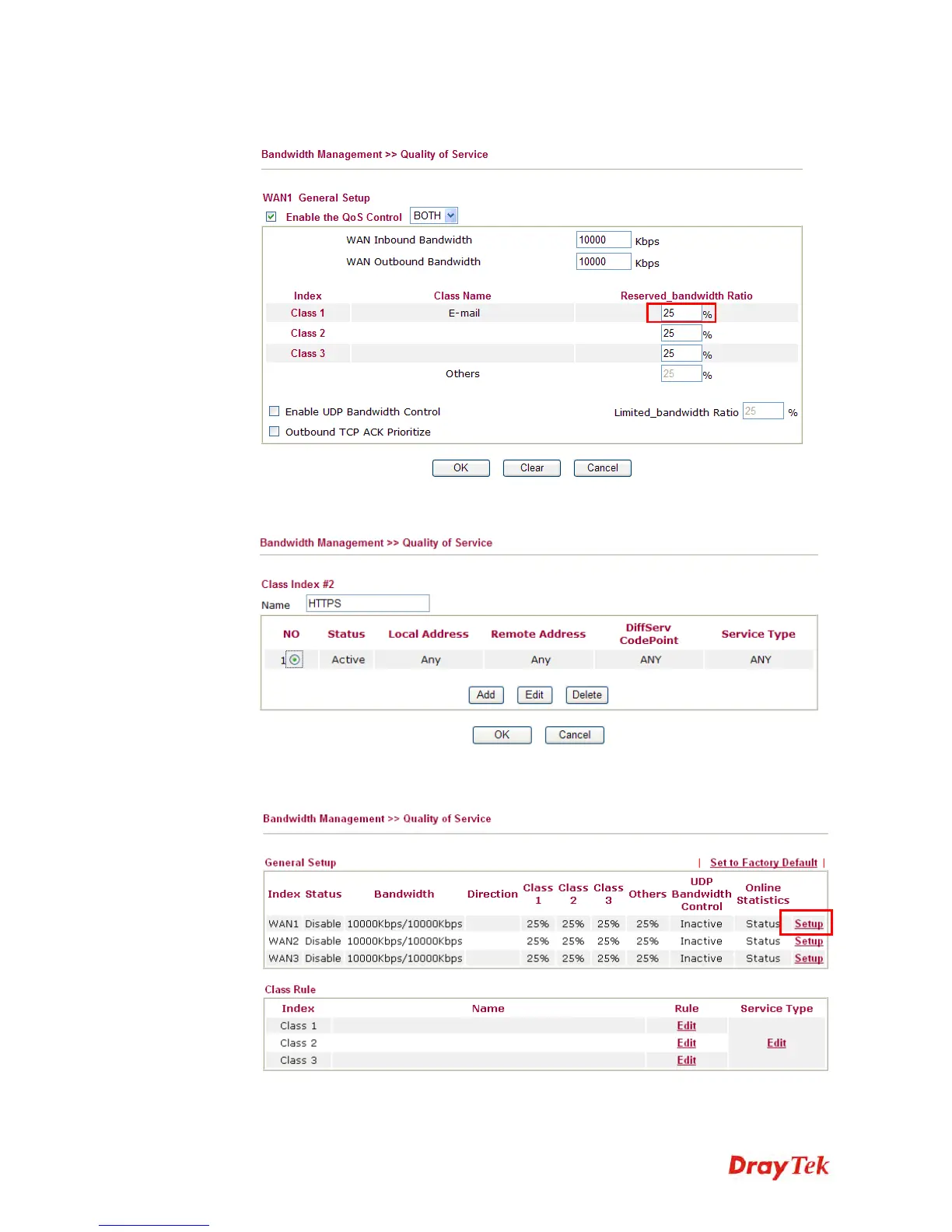

5. For this index, the user will set reserved bandwidth (e.g., 25%) for E-mail using protocol

POP3 and SMTP.

6. Return to previous page. Type the Name of Index Class 2 by clicking Edit link. In this

index, the user will set reserved bandwidth for HTTPS. And click OK.

7. Click Setup link for WAN.
