Draytek Vigor2920 Series User Manual

Vigor2920 Series User’s Guide
78
3
3
.
.
4
4
H
H
o
o
w
w
t
t
o
o
c
c
o
o
n
n
f
f
i
i
g
g
u
u
r
r
e
e
M
M
u
u
l
l
t
t
i
i
-
-
S
S
u
u
b
b
n
n
e
e
t
t
f
f
o
o
r
r
V
V
i
i
g
g
o
o
r
r
R
R
o
o
u
u
t
t
e
e
r
r
There are two types of VLAN. One is Port Based VLAN; the other is Tag Based VLAN. Refer
to the following sections for learning the usage of VLAN.
I
I
.
.
P
P
o
o
r
r
t
t
B
B
a
a
s
s
e
e
d
d
V
V
L
L
A
A
N
N

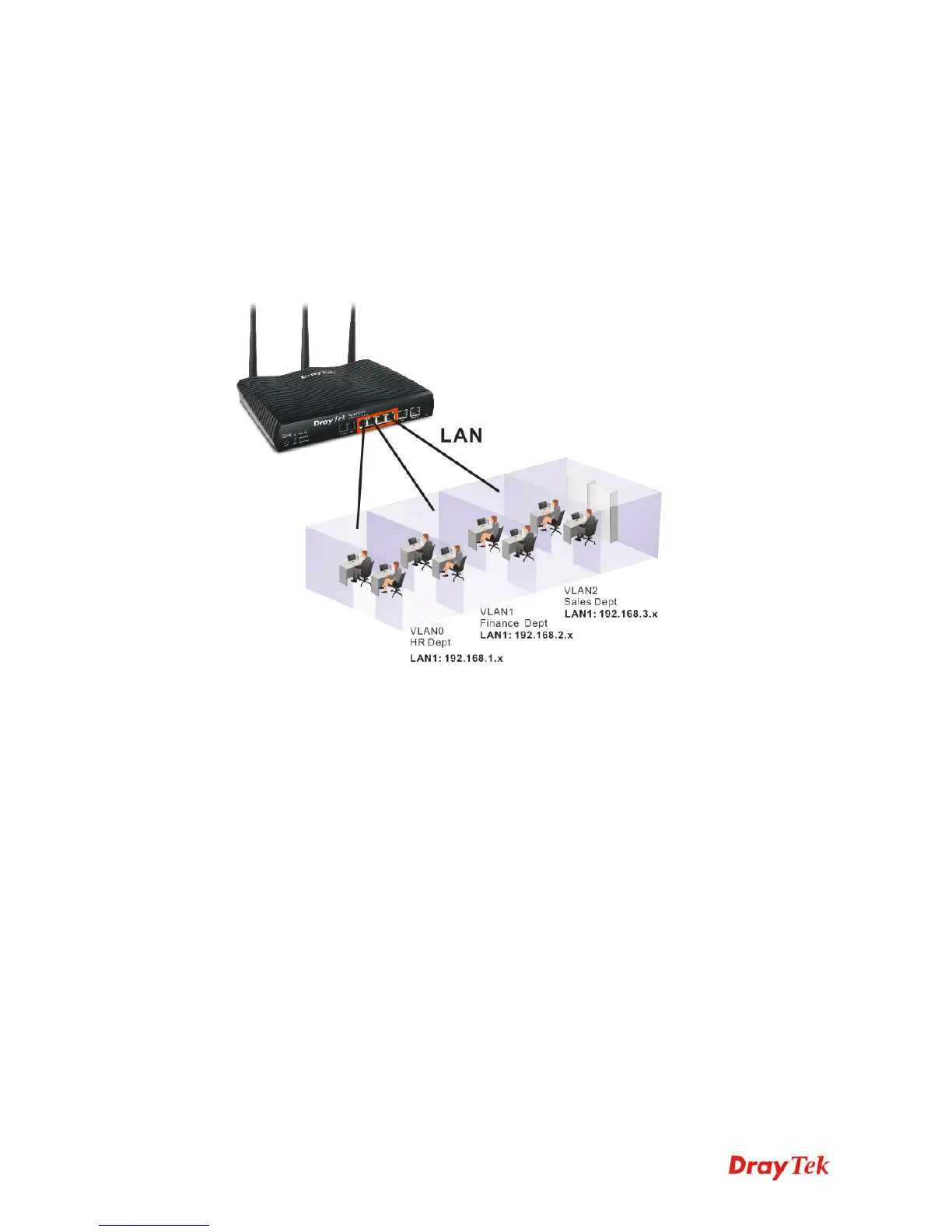

Vigor2920 can divide the physical LAN ports into several groups. For example, it can divide
the internal departments of a company into three different groups. Each group uses different
network segment. See the following graphic for an example.
Group 0 (VLAN0)(Human Resource): LAN Port 1 IP: 192.168.1.0/24
Group 1 (VLAN1)(Finance Dept): LAN Port 2 IP: 192.168.2.0/24
Group 2 (VLAN2)(Sales Dept.): LAN Port 3/Port 4 IP: 192.168.3.0/24
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
a
a
t
t
i
i
o
o
n
n
:
:
1. In the page of LAN >> VLAN Configuration, check the box of Enable to enable the
function of VLAN Configuration.
2. For VLAN0 setting, check P1 and set LAN1 as the Subnet.
3. For VLAN1 setting, check P2 and set LAN2 as the Subnet.
4. For VLAN2 setting, check P3 and P4, and set LAN3 as the Subnet.
