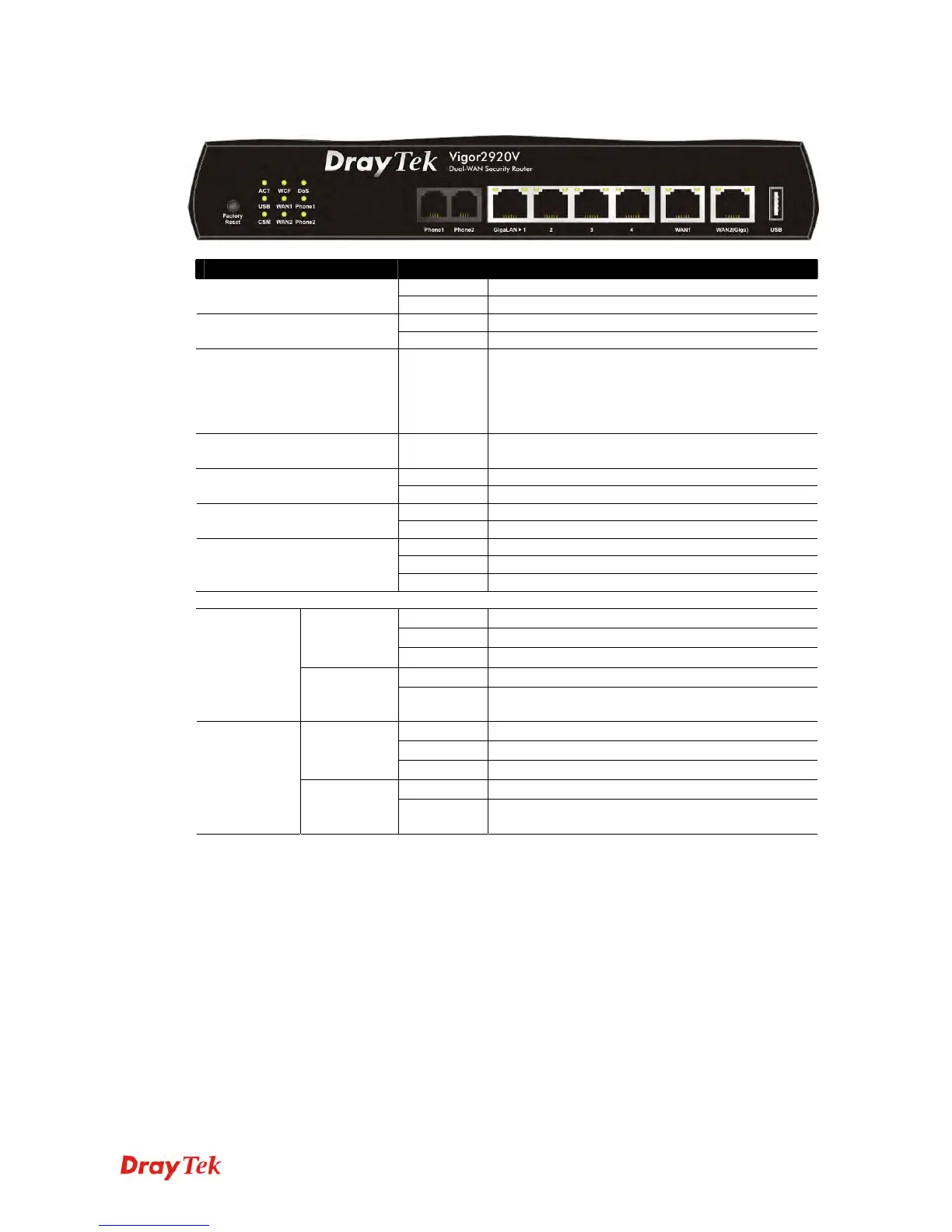

LED Status Explanation
Blinking The router is powered on and running normally. ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use. USB
Blinking The data is transmitting.
CSM On The profile(s) of CSM (Content Security
Management) for IM/P2P, URL/Web Content Filter
application can be enabled from Firewall
>>General Setup. (Such profile must be established
under CSM menu).
WCF On The Web Content Filter is active. (It is enabled from
Firewall >> General Setup).
On The WAN1 or WAN2 connection is ready. WAN1/2
Blinking It will blink while transmitting data.
On The DoS/DDoS function is active. DoS
Blinking It will blink while deleting an attack.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone 1/2
Blinking A phone call comes.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN 1/
WAN2 (Giga)
Right LED
(Green)
Off The port is connected with 10/100Mbps when left
LED is on.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1/2/3/4
Right LED
(Green)
Off The port is connected with 10/100Mbps when left
LED is on.
