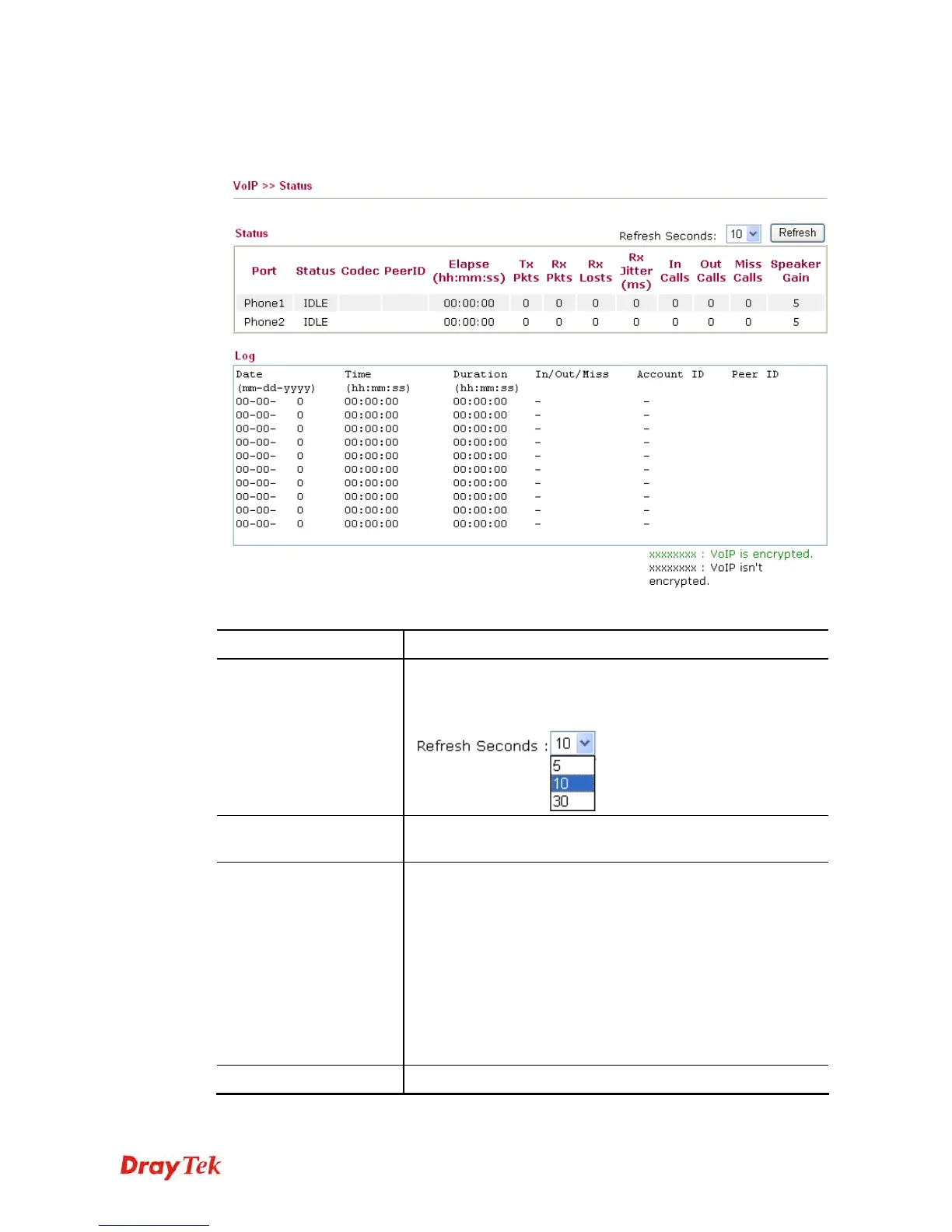

From this page, you can find codec, connection and other important call status for each port.
Each item is explained as follows:
Item Description
Refresh Seconds
Specify the interval of refresh time to obtain the latest VoIP
calling information. The information will update immediately
when the Refresh button is clicked.
Port
It shows current connection status for Phone(s) and ISDN
ports.
Status
It shows the VoIP connection status.
IDLE - Indicates that the VoIP function is idle.
HANG_UP - Indicates that the connection is not established
(busy tone).
CONNECTING - Indicates that the user is calling out.
WAIT_ANS - Indicates that a connection is launched and
waiting for remote user’s answer.
ALERTING - Indicates that a call is coming.
ACTIVE-Indicates that the VoIP connection is launched.
Codec
Indicates the voice codec employed by present channel.
