Vigor2920 Series User’s Guide

138

Item Description

Ping IP – If you choose Ping Detect as detection mode, you

have to type IP address in this field for pinging.

TTL (Time to Live) – Displays value for your reference. TTL

value is set by telnet command.

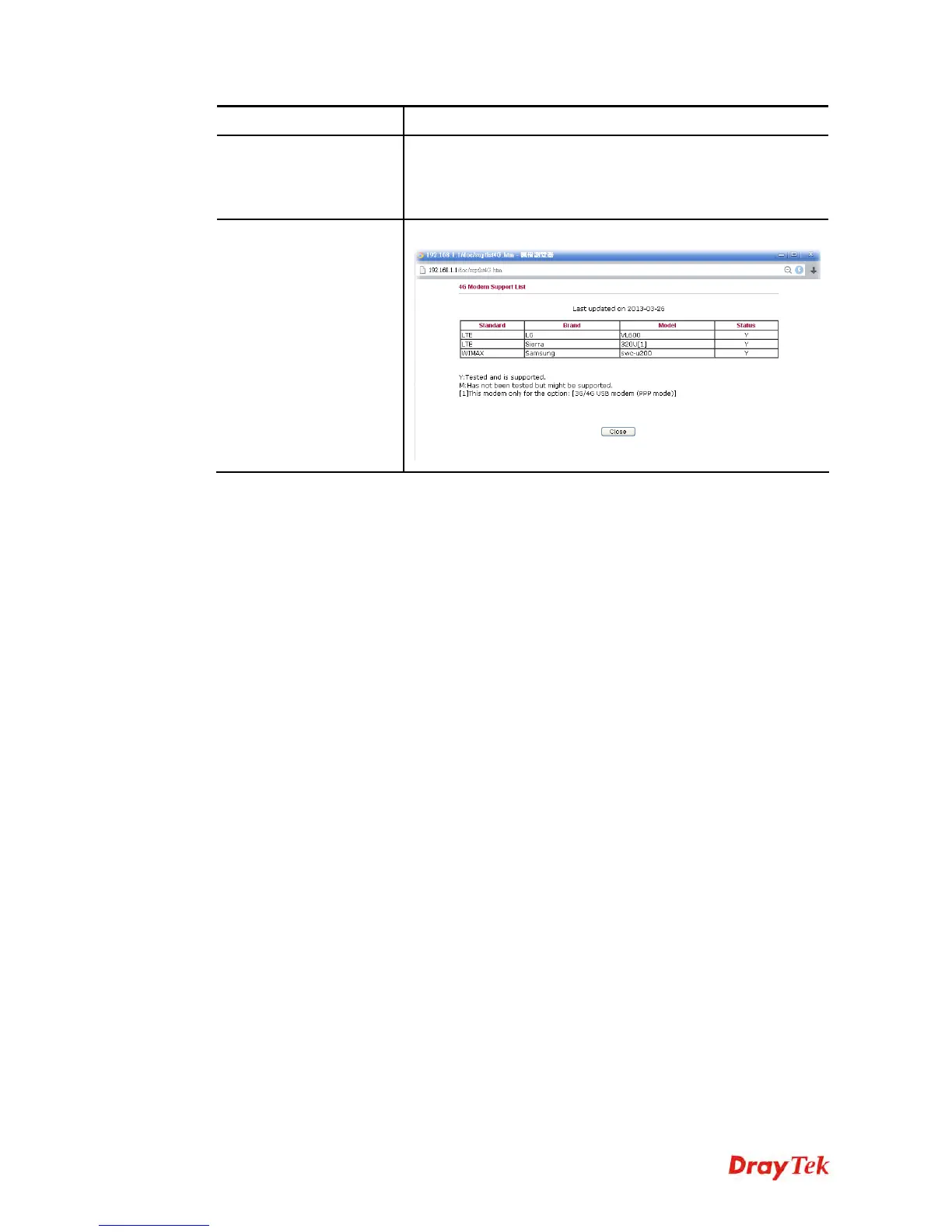

Modem Support List

It lists all of the modems supported by such router.

After finishing all the settings here, please click OK to activate them.
