Vigor2920 Series User’s Guide
375
3.

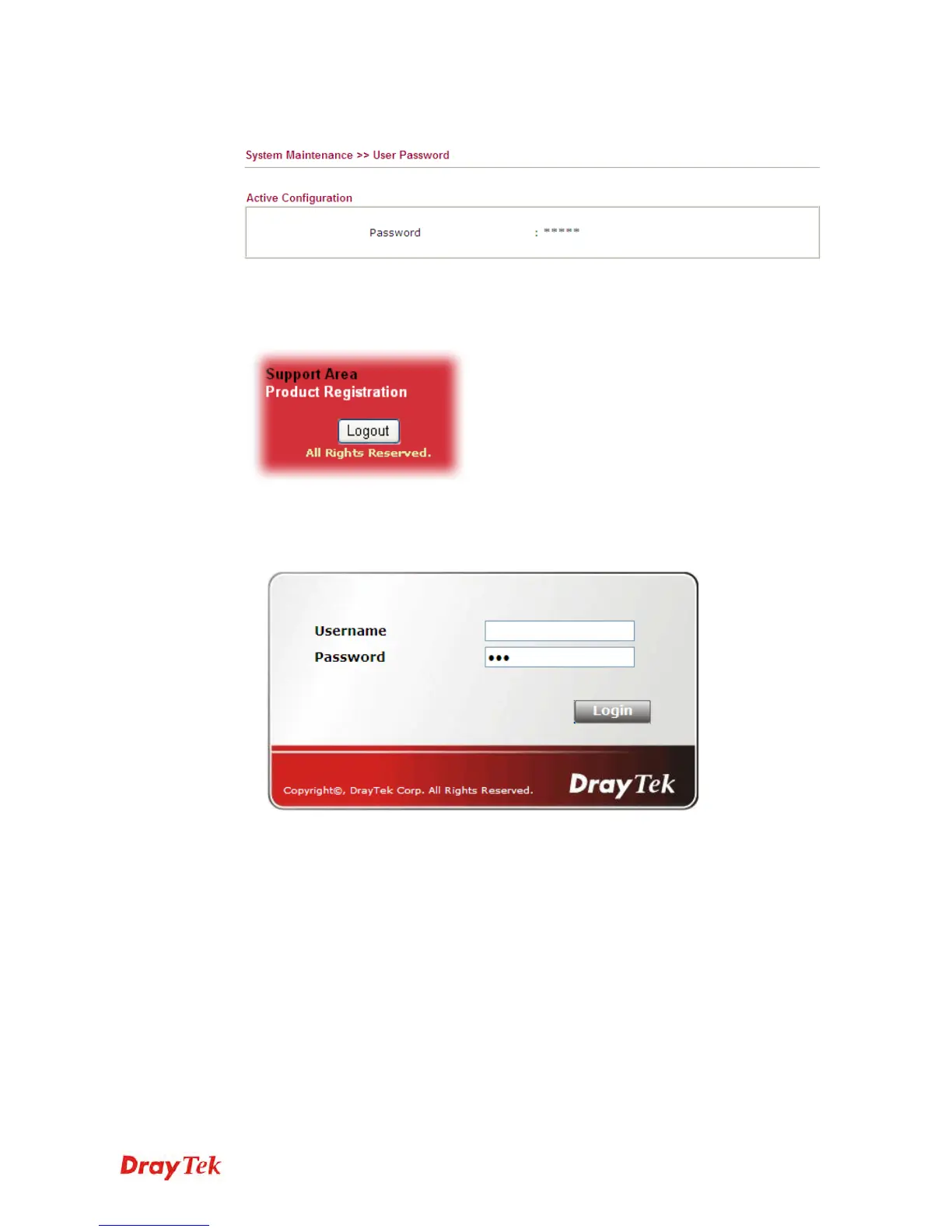

The following screen will appear. Simply click
OK
.
4.
Log out Vigor router Web user interface.
5.
The following window will be open to ask for
username and password. Type the new user
password in the filed of
Password
and click
Login
.
6.
The main screen with User M
ode will be shown as follows.
384
386
Table of Contents
Regulatory Information
4
Table of Contents
5
Introduction
11
Web Configuration Buttons Explanation
12
LED Indicators and Connectors
13
For Vigor2920
13
For Vigor2920N
15
For Vigor2920Vn
17
For Vigor2920V
19
Hardware Installation
21
Printer Installation
22
Accessing Web User Interface
29
Changing Password
30
Online Status
31
Physical Connection
31
Virtual WAN
34
Saving Configuration
34
Quick Setup
35
Quick Start Wizard
35
For WAN1/WAN2 (Ethernet)
36
For WAN3 (USB)
45
Service Activation Wizard
47
VPN Client Wizard
51
VPN Server Wizard
57
Wireless Wizard
62
Voip Wizard
65
Registering Vigor Router
66
Tutorials and Applications
71
How to Configure Settings for Ipv6 Service
71
How to Send a Notification to Specified Phone Number Via SMS Service in WAN Disconnection
81
How Can I Get the Files from USB Storage Device Connecting to Vigor Router
85
How to Configure Multi-Subnet for Vigor Router
88
How to Customize Your Login Page
95
How to Use Smartmonitor with Vigor2920 Series
97
Create a LAN-To-LAN Connection between Remote Office and Headquarter
98
Create a Remote Dial-In User Connection between the Teleworker and Headquarter
106
Qos Setting Example
110
Request a Certificate from a CA Server on Windows CA Server
115
Request a CA Certificate and Set as Trusted on Windows CA Server
119
Creating an Account for Myvigor
121
Creating an Account Via Vigor Router
121
Creating an Account Via Myvigor Web Site
125
Advanced Web Configuration
129
Wan
129
Basics of Internet Protocol (IP) Network
129
General Setup
131
Internet Access
136
Multi-VLAN
156
Lan
159
Basics of LAN
159
General Setup
161
Static Route
169
Vlan
174
Bind IP to MAC
177
LAN Port Mirror
178
Wired 802.1X
179
Web Portal Setup
180
Load-Balance /Route Policy
181
Nat
186
Port Redirection
186
DMZ Host
190
Open Ports
193
Port Triggering
195
Firewall
198
Basics for Firewall
198
General Setup
200
Filter Setup
204
Dos Defense
213
User Management
216
General Setup
217
User Profile
218
User Group
223
User Online Status
224
Objects Settings
225
IP Object
225
IP Group
228
Ipv6 Object
230
Ipv6 Group
232
Service Type Object
234
Service Type Group
236
Keyword Object
238
Keyword Group
240
File Extension Object
242
Sms/Mail Service Object
247
Notification Object
249
CSM Profile
251
APP Enforcement Profile
252
URL Content Filter Profile
256
Web Content Filter Profile
260
DNS Filter
263
APPE Support List
265
Bandwidth Management
266
Sessions Limit
266
Bandwidth Limit
268
Quality of Service
270
APP Qos
278
Applications
280
Dynamic DNS
280
Lan Dns
283
Schedule
285
Radius
288
Active Directory/Ldap
288
Upnp
291
Igmp
294
Wake on LAN
295
Sms/Mail Alert Service
296
VPN and Remote Access
298
Remote Access Control
298
PPP General Setup
298
Ipsec General Setup
300
Ipsec Peer Identity
302
Remote Dial-In User
304
LAN to LAN
308
VPN TRUNK Management
318
Connection Management
323
Certificate Management
325
Local Certificate
325
Trusted CA Certificate
328
Certificate Backup
329
Voip
329
Dialplan
331
SIP Accounts
341
Phone Settings
345
Status
351
Wireless LAN
352
Basic Concepts
352
General Setup
354
Security
356
Access Control
358
Wps
359
Wds
362
Advanced Setting
365
WMM Configuration
367
AP Discovery
368
Station List
370
Bandwidth Management
371
USB Application
372
USB General Settings
372
USB User Management
373
File Explorer
375
USB Disk Status
376
Modem Support List
377
System Maintenance
377
System Status
378
HTTPS Encryption Setup
379
Tr-069
380
Administrator Password
381
User Password
384
Login
386
Configuration Backup
387
Syslog/Mail Alert
389
Time and Date
392
Snmp
393
Management
396
Reboot System
398
Firmware Upgrade
399
Activation
400
Diagnostics
401
Dial-Out Triggering
402
Routing Table
403
ARP Cache Table
404
Ipv6 Neighbour Table
404
DHCP Table
405
NAT Sessions Table
406
Data Flow Monitor
407
Traffic Graph
409
Ping Diagnosis
410
Trace Route
411
Syslog Explorer
412
TSPC Status
414
External Devices
415
Trouble Shooting
417
Checking if the Hardware Status Is OK or Not
417
Checking if the Network Connection Settings on Your Computer Is OK or Not
417
Pinging the Router from Your Computer
420
Checking if the ISP Settings Are OK or Not
422
Problems for 3G Network Connection
422
Backing to Factory Default Setting if Necessary
423
Contacting Your Dealer
424
Appendix I: Vlan Applications on Vigor Router
425
Appendix II: Release Note
433
