Vigor2920 Series User’s Guide

420

Port-based mode

Tag-based mode

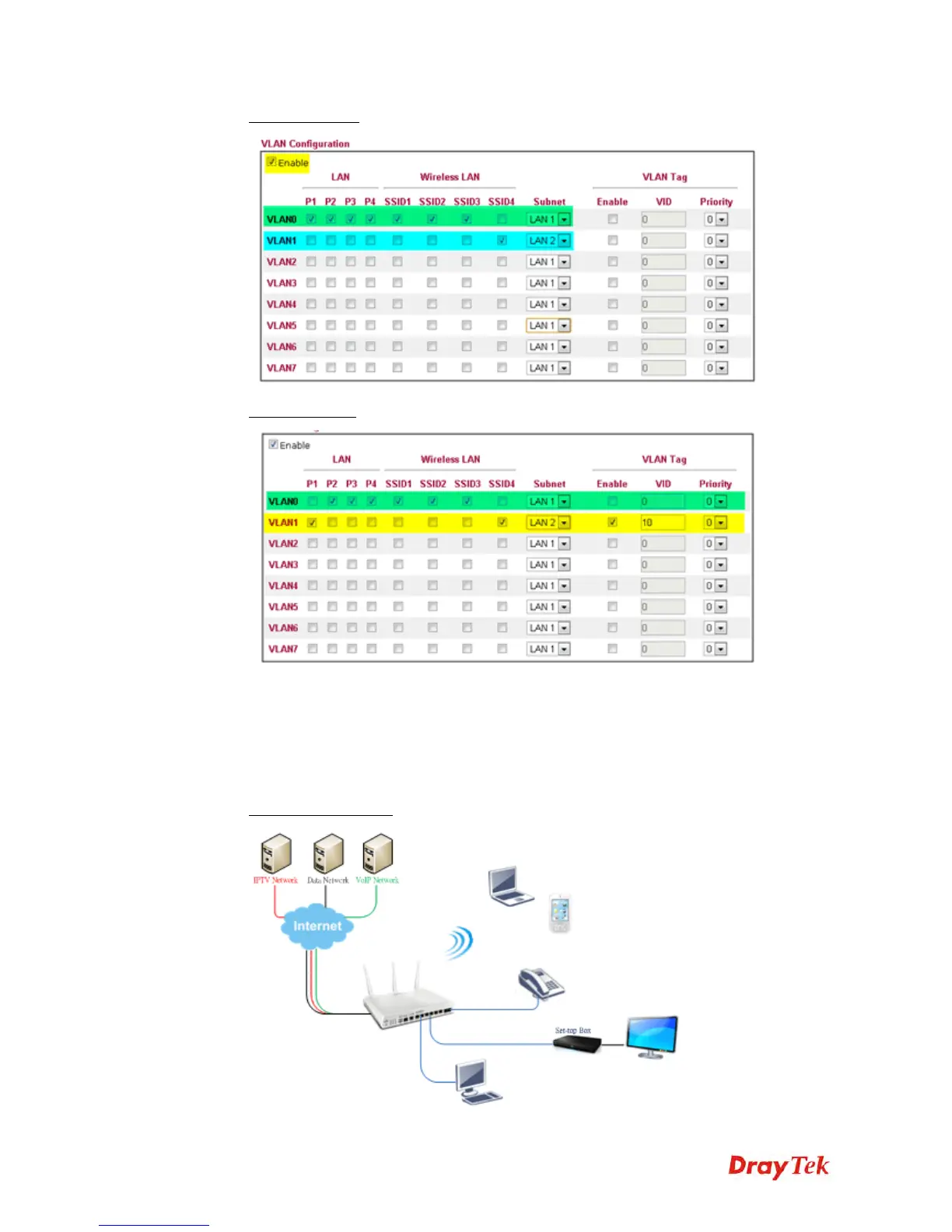

To deploy a guest network, which serves your guests the internet accessibility, but the

traffics have to be isolated from your private network due to the security considerations,

it can be done by above settings. However, a switch support VLAN function is need if

VLAN Tag enabled.

 Triple Play (Multi-WAN)

NAT mode with VLAN

Regulatory Information4
