Vigor2920 Series User’s Guide

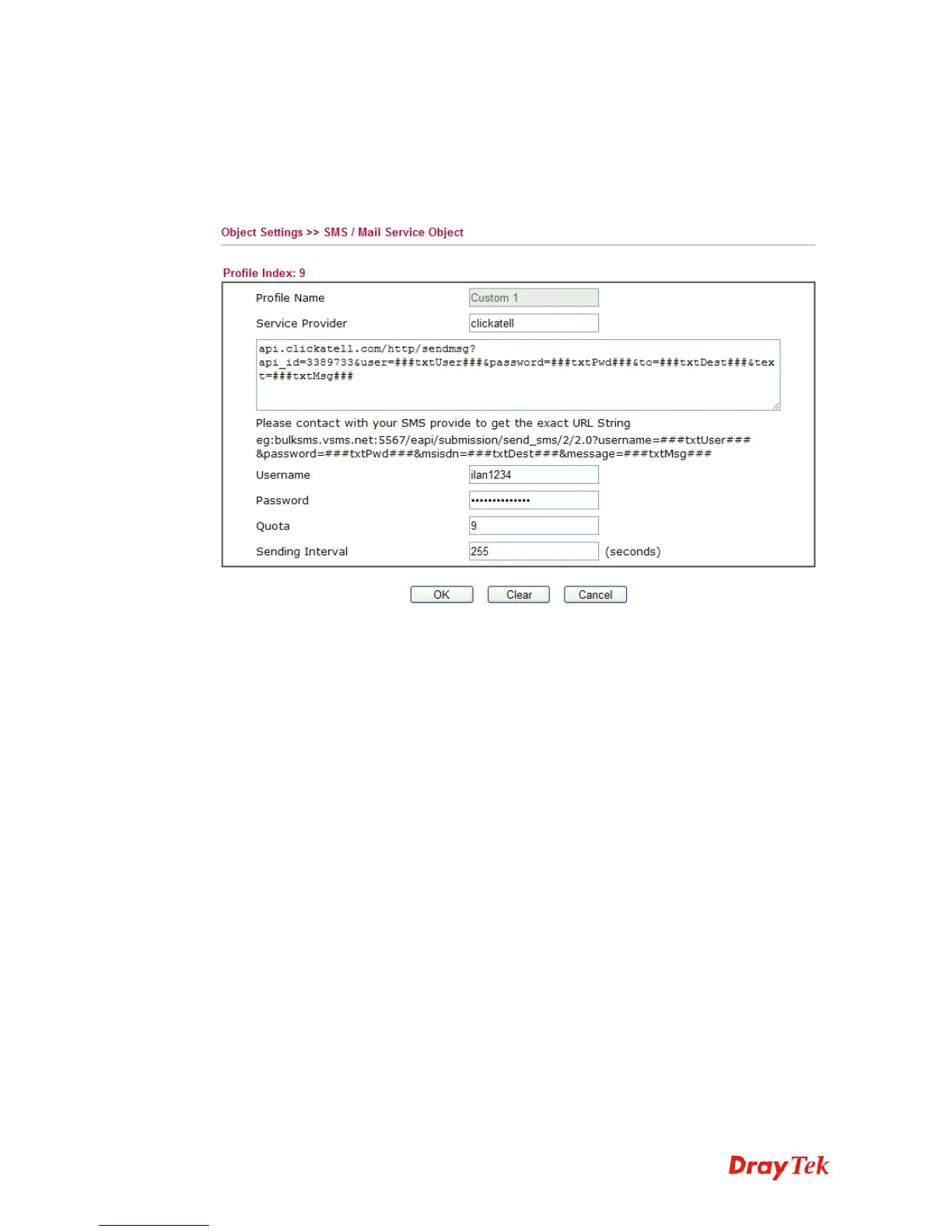

 Remark: How the customize the SMS Provider

Choose one of the Index numbers (9 or 10) allowing you to customize the SMS Provider. In

the web page, type the URL string of the SMS provider and type the username and password.

After clicking OK, the new added SMS provider will be added and will be available for you to

specify for sending SMS out.
