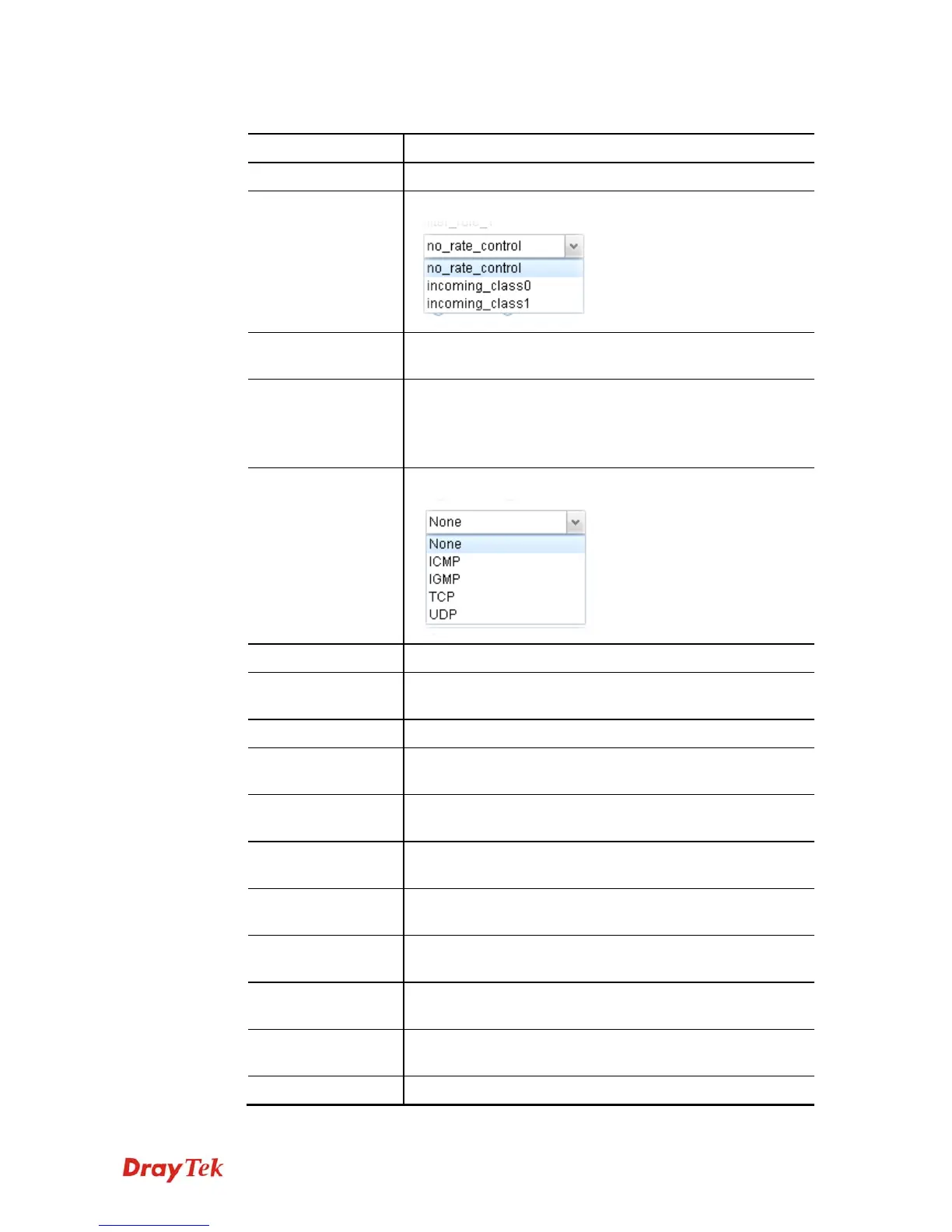

Available parameters are listed as follows:
Item Description
Filter Rule
Display the profile name of the filter rule.
Policer
Choose the QoS Policer profile to apply to such filter rule.
Drop
Choose Enable to discard the packets which satisfy the
condition of the filter rule.
Reserved
Choose Enable to keep the packets which satisfy the
condition of the filter rule, even the system is busy.
When both Drop and Reserved are set to Enable, the
priority of Drop is higher than Reserved.
IP Protocol
Choose a protocol for such filter rule.
Source IP Address
Type the source IP address for such incoming filter rule.
Source IP Address
Mask
Type the mask address for the source IP address.
Source Port Enable
Choose Enable to restrict the source port value.
Source Port Start
Type the starting port number (0 - 65535) in the range of the
source port.
Source Port End
Type the ending port number (0 - 65535) in the range of the
source port.
Destination IP
Address
Type the destination IP address for such incoming filter rule.
Destination IP
Address Mask
Type the mask address for the destination IP address.
Destination port
Enable
Choose Enable to restrict the destination port value.
Destination Port
Start
Type the starting port number (0 - 65535) in the range of the
destination port.
Destination Port
End
Type the ending port number (0 - 65535) in the range of the
destination port.
Apply
Click it to save the configuration and exit the page.
To Next Page
