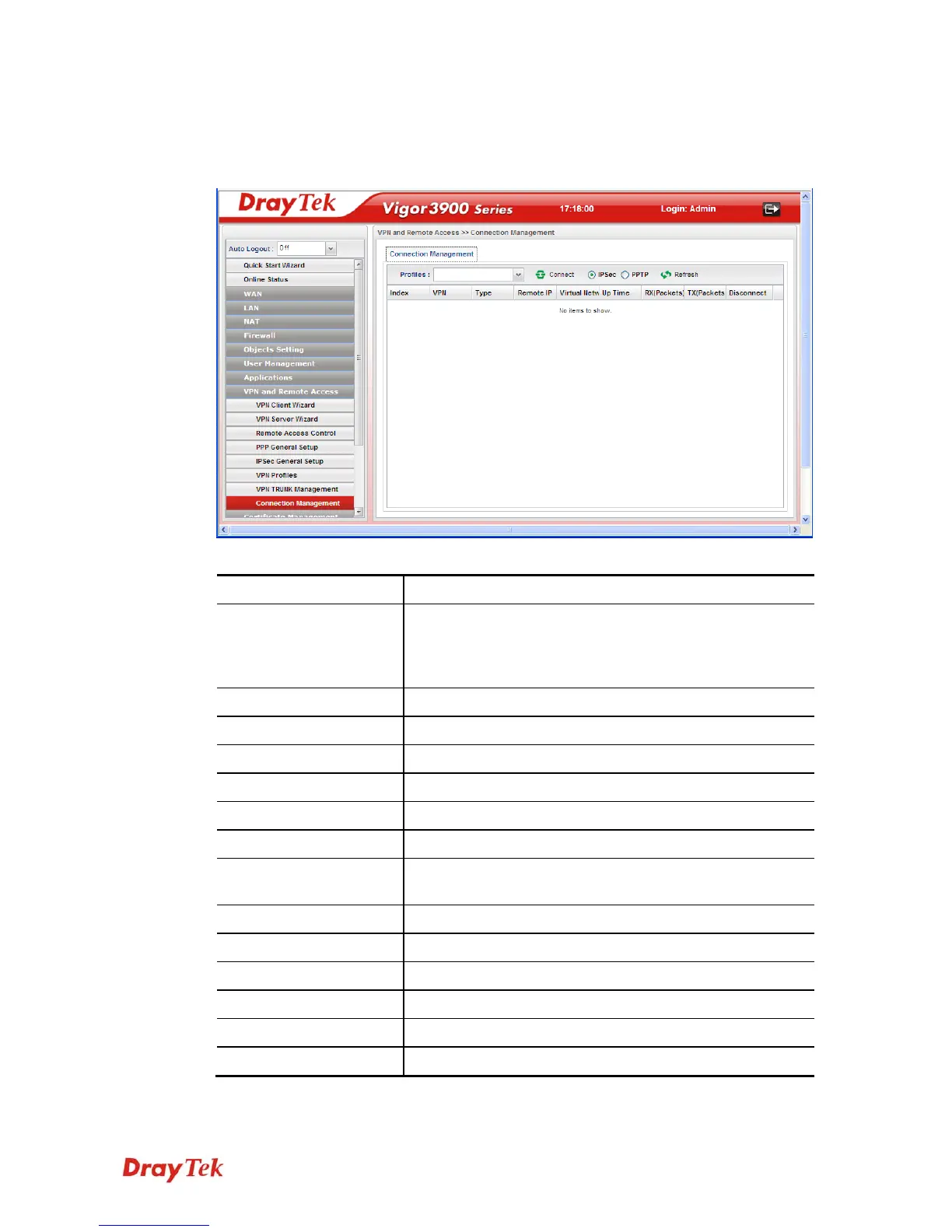

You can find the summary table of all VPN connections. You may disconnect any VPN
connection by clicking Disconnect button.
Each item will be explained as follows:
Item Description
Profile
This filed displays the profile configured in LAN-to-LAN
(with Index number and VPN Server IP address). The VPN
connection built by General Mode does not support VPN
backup function.
Connect
Click this button to execute dial out function.
IPSec
Click it to perform IPSec VPN connection.
PPTP
Click it to perform PPTP VPN connection.
Refresh
Renew current web page.
Index
Display the item number of the VPN profile.
VPN
Display the name of VPN profile.
Type
Display the connection type (PPTP or IPSec) for such VPN
profile.
Remote IP
Display the remote IP configure by VPN profile.
Virtual Network
Display the virtual network established by such VPN profile.
Up Time
Display the connection time of this VPN tunnel.
RX (Packets)
Display the total received packets through this VPN.
TX (Packets)
Display the total transmitted packets through this VPN.
Disconnect
Terminate the VPN connection.
