22
[035] PGM1 Enable/Disable
Default: 01
This PGM can be enabled (01) or disabled (00).
When the PGM is enabled, the output will activate when any of the trouble conditions enabled
in the T-Link Trouble Toggle Options are present. It will deactivate when all the selected trou-
ble conditions are cleared.
NOTE: If a trouble condition occurs that is not enabled in the T-Link Trouble Reporting
option, the PGM will not turn on for that trouble condition nor will it be required to
turn off the PGM.
PGM2-The PGM2 output is dedicated as an input follower that is triggered on any input alarm
(including Bell Follower which generates Burglary and Fire Alarms) except for key-
switch zones. The PGM2 output will only turn off when ALL violated zones are
restored.
NOTE: PGM2 is always enabled and follows all zones. It is the users option to connect
devices to the PGM.
[036]-[047] Digital input 1 through 12 configuration for TL250
Default: 00
Program a 2-digit code for the definition of the inputs. Select a definition from the list below.
[00] Null Input
The input is vacant. Unused inputs should be programmed as Null inputs. Any activity on
this input is ignored.
[03] Instant Input
This input type will reports if the T-Link is armed, it also supports force arming. When forced
armed the T-Link will arm even if the input is open. When the input is closed it is treated as a
normal instant input. SIA Reporting Code: BA/BH.
[08] Standard 24-hr. Fire Input
When this input is violated, the panel immediately communicates to the central station. SIA
Reporting Code: FA/FH.
[11] Standard 24-hr. Burglary
When this input is violated, the panel immediately communicates to the central station. SIA
Reporting Code: BA/BH.
[16] 24-hr. Panic Input
If this input is violated, when the system is armed or disarmed, the panel reports to the cen-
tral station. SIA Reporting Code: PA/PH.
PGM1-The PGM1 output is dedicated for
T-Link TL250 trouble indications.
Program this option as ‘01’ for Modes
2 & 3,.

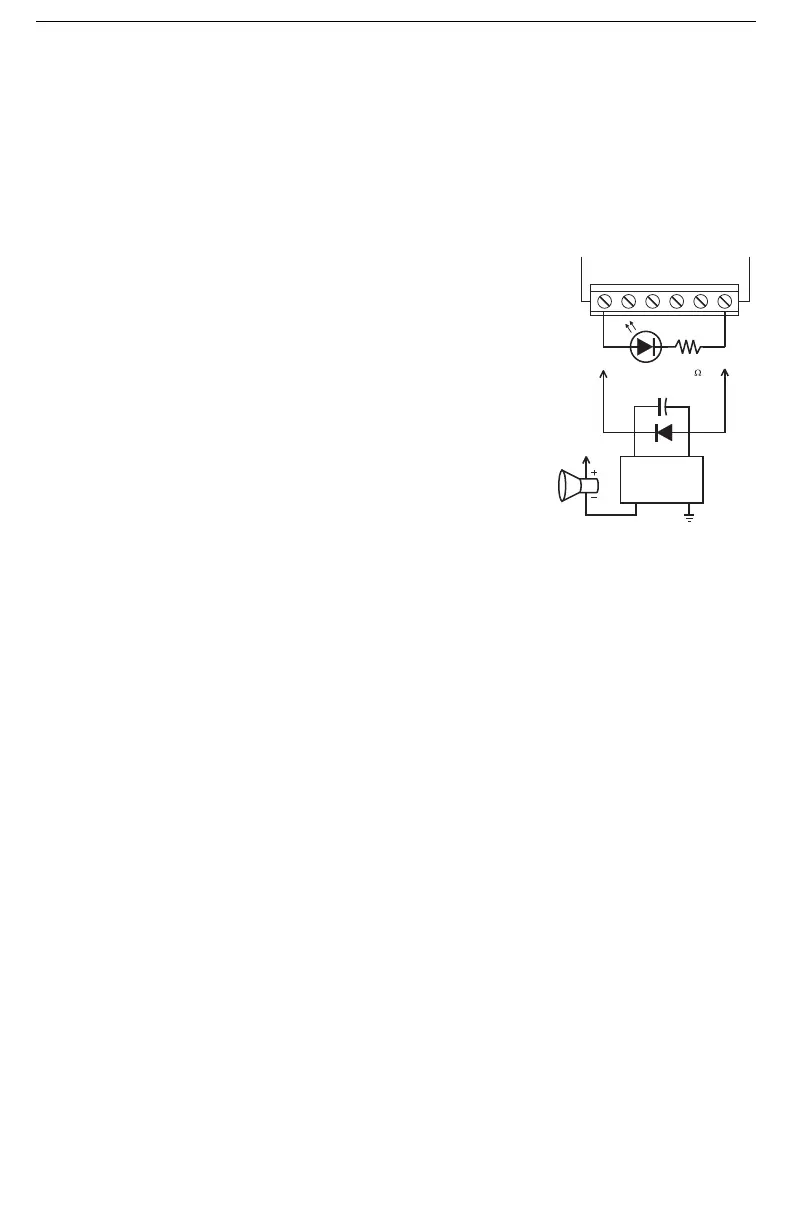

If a control panel is not monitoring the T-Link
TL250, an LED or a buzzer can be connected
between this terminal and the RED terminal
for trouble indication. The PGM terminal
switches low from an open-collector state.
NOTE: The PGM output can sink 50mA
(max.). For UL installations, use DSC
RM-1 Relay Module.
LED 560
LED Output with
current limiting
resistor
Optional rela y
driver output
+ Coil -
Relay
To External
Supply
NC Com
RED BLK YEL GRN COM PGM
