[21] 24-hr. Tamper
When this input is violated, the panel immediately communicates to the central station. SIA
Reporting Code: TA/TH.
[23] Maintained Keyswitch Arm Input (Input 2 Only)
When this input is violated, the system will arm. When this input is secured, the system will
disarm. All instant type inputs have force arming support.
SIA Reporting Code: CS/OS.
[98] 24-hr. Panel Absent.
When this input is violated, the T-Link immediately communicates to the central station
SIA Reporting Code: ET001/ER001.
[99] 24-hr. Bell Follower Input
Input 1 can only be programmed to follow the Bell output for burg/fire monitoring. Connect
Input 1 to the Control Panel Bell+ output.
This will disable signal sending when arm and disarm squawks are generated. Refer to
options [062] through [065].
Mode 1 - Bell Follower Operation
[048] Input 1 Configuration
Default: 0
Set to 0 for normally open inputs.
Set to 1 for normally closed inputs.
NOTE: Select this option when Normally Closed (NC) detection devices or contacts are being
used on Input 1.
[049] Input 2 to 4 Configuration
Default: 0
Set to 0 for normally open contacts.
Set to 1 for normally close contacts.
[050]-[061] SIA Reporting Input
If '00' is entered, central station reporting is disabled. All other actions for PGM outputs and
status are still activated.
If 'FF' is entered, default reporting code is enabled using the input definitions, with the hard
coded input number.
If anything between 01 and 99 is programmed, the hard coded input number will be replaced
by the programmed value.

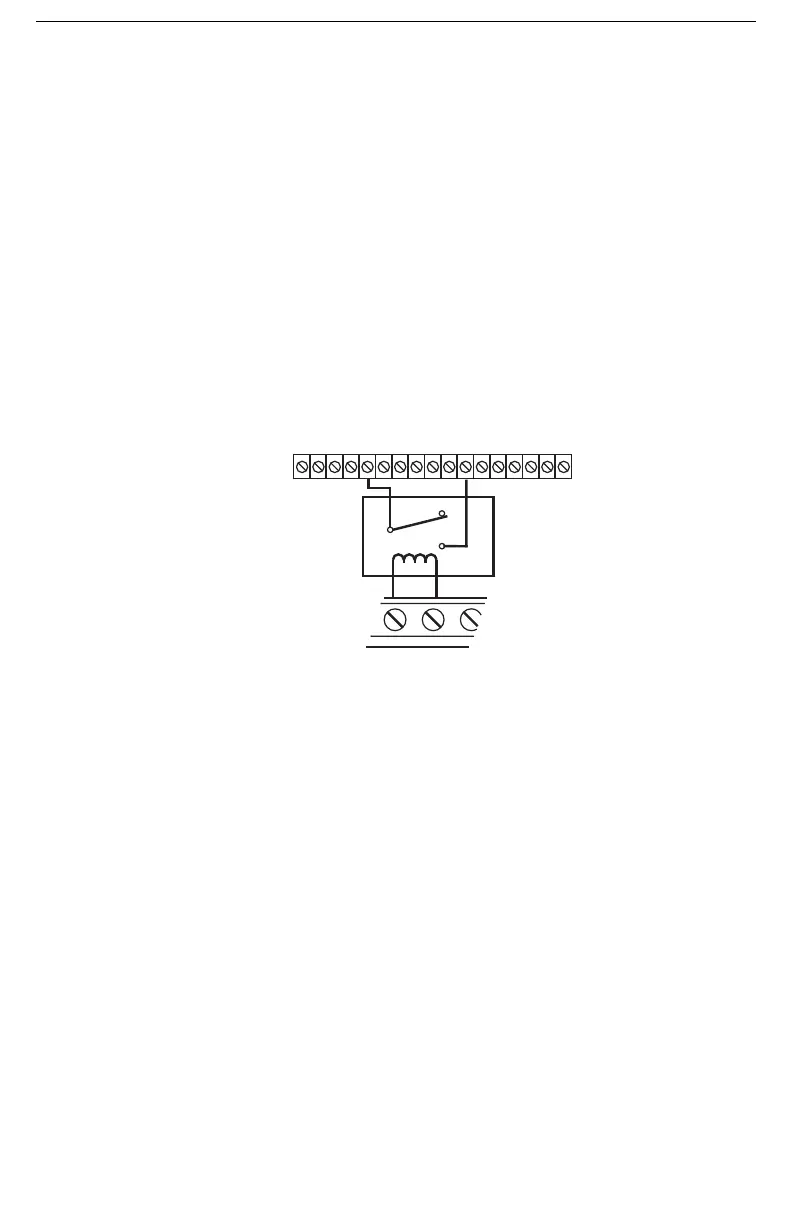

BELL+ BELL-
Alternate connection for
Control Panels where Bell
switches High
Relay
Com
NC
NO
+12V GND YX RX GND RED YEL GRN PGM1 PGM2 IN1 GND GNDIN2 IN3 IN4 EARTH
