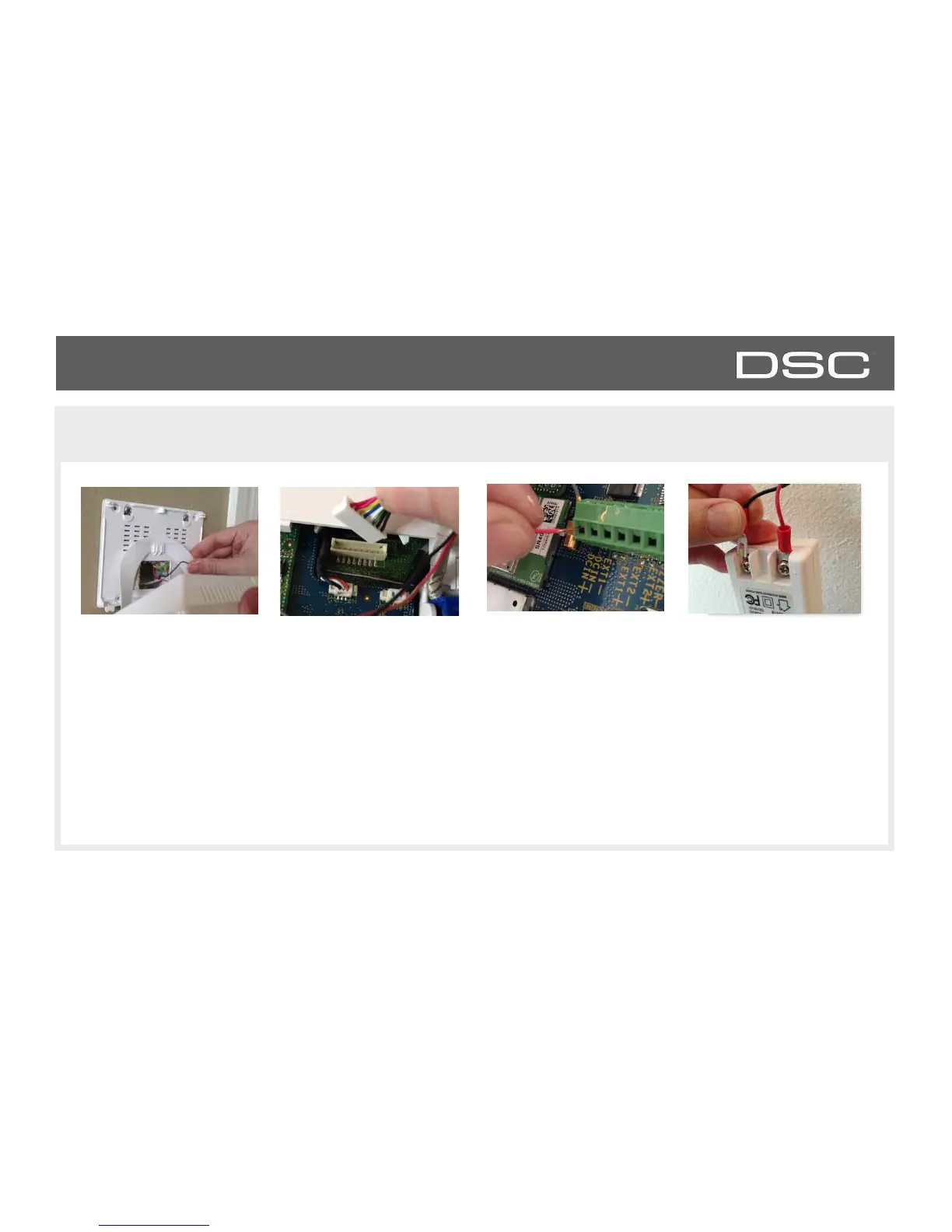

Hang the panel’s
suspension strap on the
hook mounted to the back
plate.
Connect power supply
wire to terminal block.
Red- DCIN +
Black- DCIN-
Plug in battery connector
CAUTION: Once connected, DO NOT unplug
the battery without following proper power
down procedures (page 92). Disconnecting the
battery may result in data corruption or panel
failure and a void of the manufacturer warranty.
Connect the wire to Power
Supply terminals.
Red- Positive
Black- Negative
IMPORTANT: Reversing
polarity on these wires may
cause damage to the panel.
DSC Confidential and Proprietary Page of 10 114
© Last updated 4/29/15 All rights reserved
IMPORTANT: To ensure proper
power at the panel, 18AWG wire, no
longer than 25 feet, should be used
between the Panel and the Power
Supply.
