The green header is labeled “System Ready – Disarmed” which indicates that all of the
sensors are closed and the system is ready to be armed.
The yellow header is labeled “System Not Ready – Disarmed” which indicates that one or
more of the sensors are tampered or open. Touch the bar to see a list of these sensors.
The red header is labeled “System Armed-Away Mode” which indicates that ALL non-
bypassed sensors are armed.

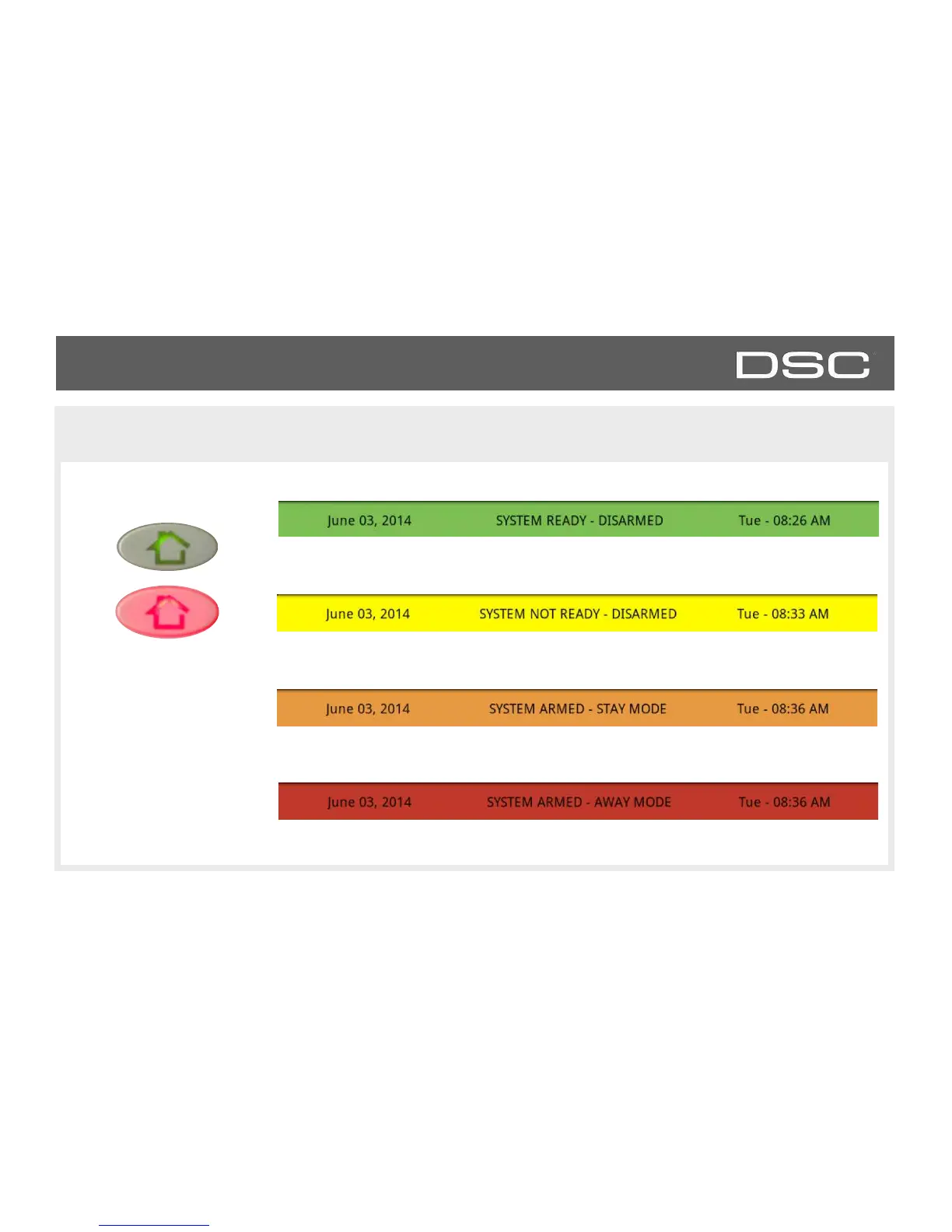

The header or “Status” bar shows the date, time and is color coded to show the current system status.
The panel’s “Panic” and
“Home” buttons also
illuminate to show panel
status. These LED lights will
NOT illuminate if the panel
is running on battery only
Green LED when disarmed
Red LED when armed
DSC Confidential and Proprietary Page of 14 114
© Last updated 4/29/15 All rights reserved
The orange header is labeled “System Armed-Stay Mode” which indicates that non-
bypassed doors and windows are armed.
