HARDWARE

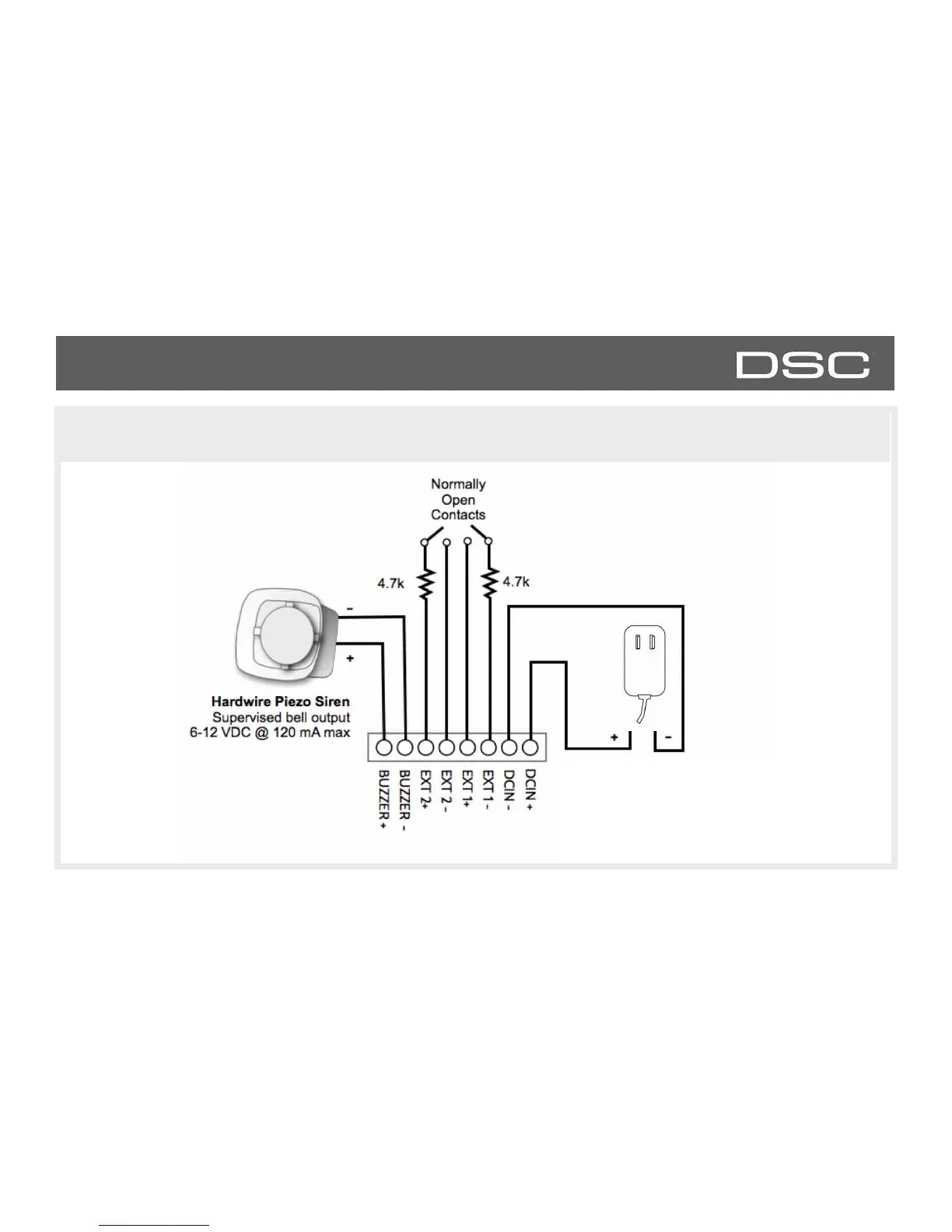

WIRING DIAGRAM

DSC Confidential and Proprietary Page of 8 114

Note:

Only DCIN-, DCIN+ terminals evaluated by

UL/cUL. Other terminal connections have

not been evaluated by UL/cUL.

Note: Do not connect the plug

in adapter to a switched outlet.

Note:

Use only Class 2 power limited power supply

Input rating: 100-240VAC, 50/60Hz, 1A

Output rating: 12.5VDC/1.2A

Model MU15-R125120-A1 (P/N MU15-R1125-A00S) for USA

Model MU15-R125120-A1 (P/N MU15-R1125-A01S) for Canada
