Fuses
Fuses serve as protections of the electrical
components and are located under the rider seat.
To access the fuses, remove the rider seat (Seat lock).
Fuses are arranged as follows:
1) fuse boxes (A) and (B), in front of the
2) main fuse (C), on the RH side;
3) fuses (D) on the solenoid RH side.
As for boxes (A) and (B), the fuses used can be
accessed by the protection lids bearing the
assembly order and amperage.
Refer to the table below to identify the circuits
protected by the various fuses and their ratings.

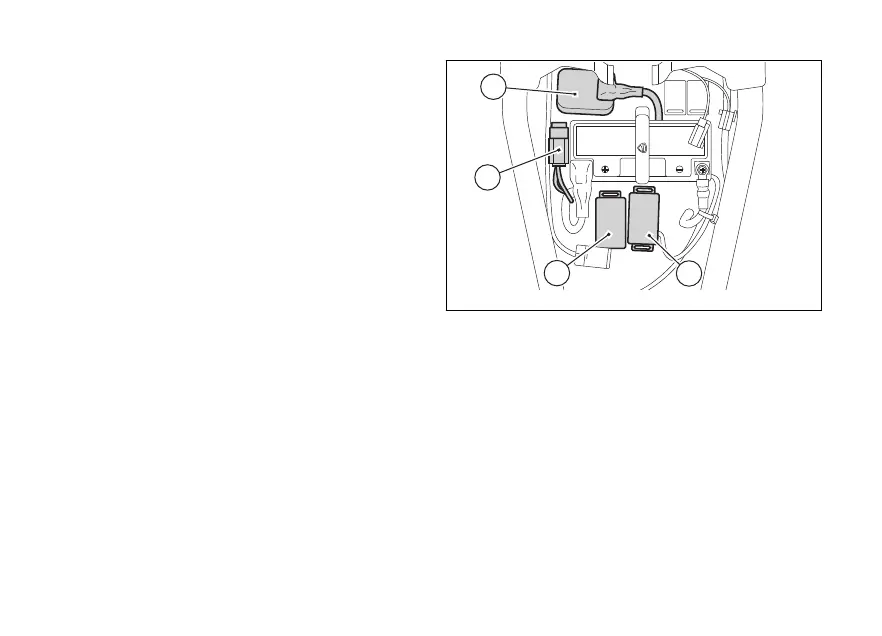

Fig 197
