Ducati DESERTX - Page 310

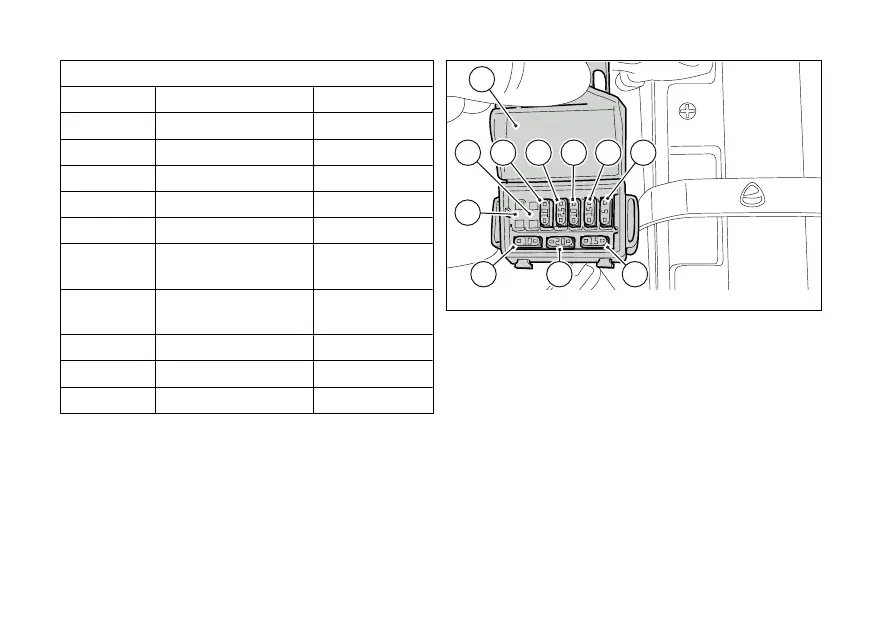

Fuse box (A) key
Pos. El. item Rat.
1 - -
2 - -
3 Fuel pump relay 10 A
4 Diagnostics 7.5 A
5 Key 3 (accessories) 10 A
6 Key 2 (Dashboard /
BBS)
15 A
7 Key 1 (ECU / ABS /
IMU
5 A
8 Spare 10 A
9 Spare 20 A
10 Spare 15 A
109
76
A
1
5432
8
Fig 198
309
