Warning displaying
The instrument panel manages a number of
warnings and alarms, aimed at giving useful
information to the rider during use.
Upon key-on, if there are any active warnings, the
instrument panel will display the messages for all
the present warnings of alarms: in a large size for the
first 5 seconds and then in a smaller size.
When several warnings or alarms are active, they are
displayed in a sequence, one every 3 seconds.

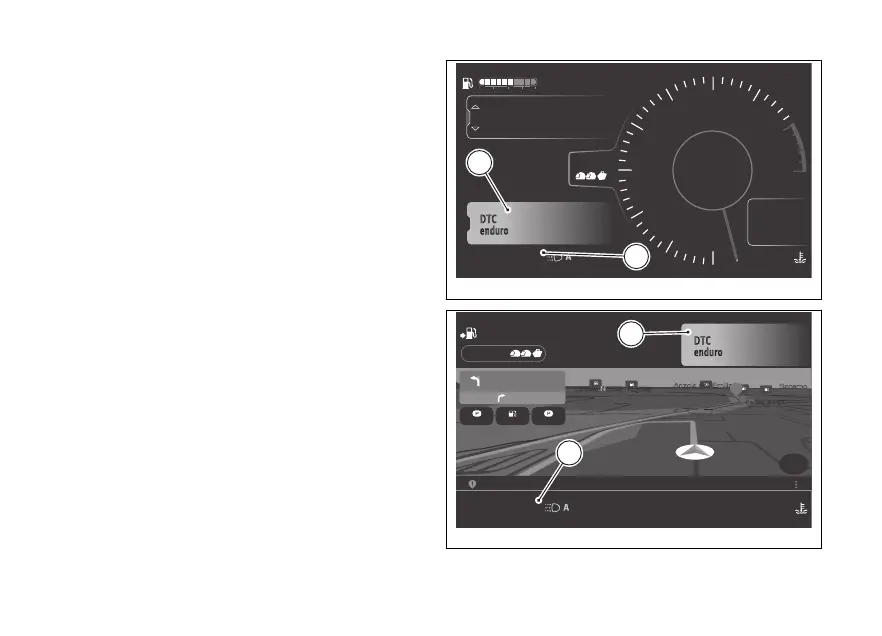

Active warnings or alarms are displayed in 2 modes:
big (A) and small (B). These figures indicate the
corresponding positions in the main page (Fig 266)
and in the Ducati Connect page (Fig 267). In the
following figures, the warnings are shown on the
in the large version and on the right in the small
version.
