Switch low beam on and cover the right low beam.
Adjust the uncovered low beam by
working the adjusting screw (1). To reach the screw (1)
more easily, it is advisable to turn the steering fully to
the right, turn screw 1 with your fingers or, if
necessary, with a coin positioned on the notch of the
screw (1) to facilitate adjustment if resistance is
found.
Turn screw (1) clockwise to move headlight down, or
counter clockwise to move beam up.
Once the low beam has been adjusted, cover it
and carry out the same procedure using the screw (2)
to adjust the right low beam.
Turn screw (2) clockwise to move headlight down, or
counter clockwise to move beam up.
Switch high beam on.
Have the light beam adjusted at a Ducati
Dealer or Authorised Service Centre.
The headlight lens might fog up if the vehicle is used
under the rain or washing. Switch headlight on
for a time to dry up any condensate.

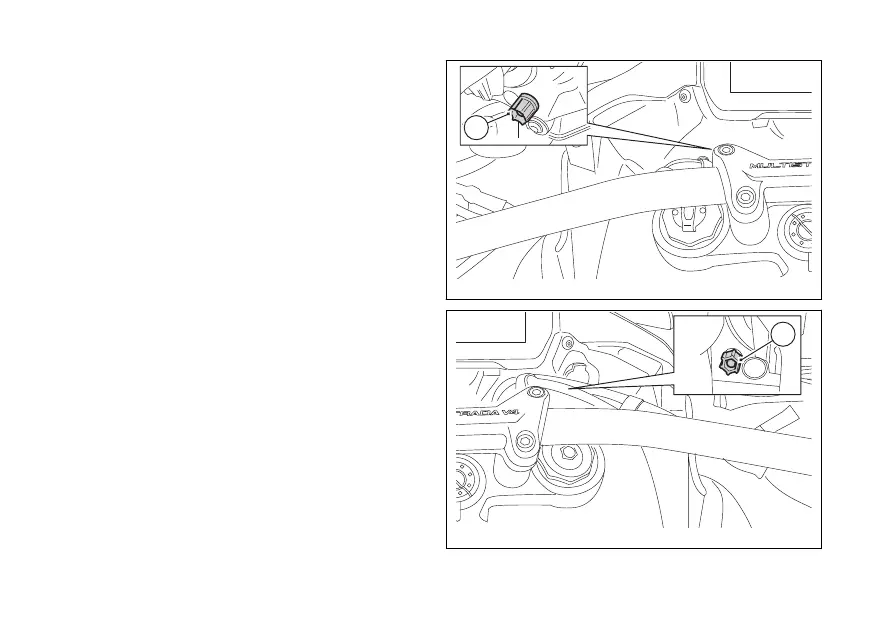

Fig 300
Fig 301
