Fuses
To protect the electrical components, there are
seventeen fuses:
- No. 3 primary fuses are positioned inside the fuse
box (A);
- No. 14 secondary and fuses are positioned
in the front (B) and rear (C) fuse boxes.

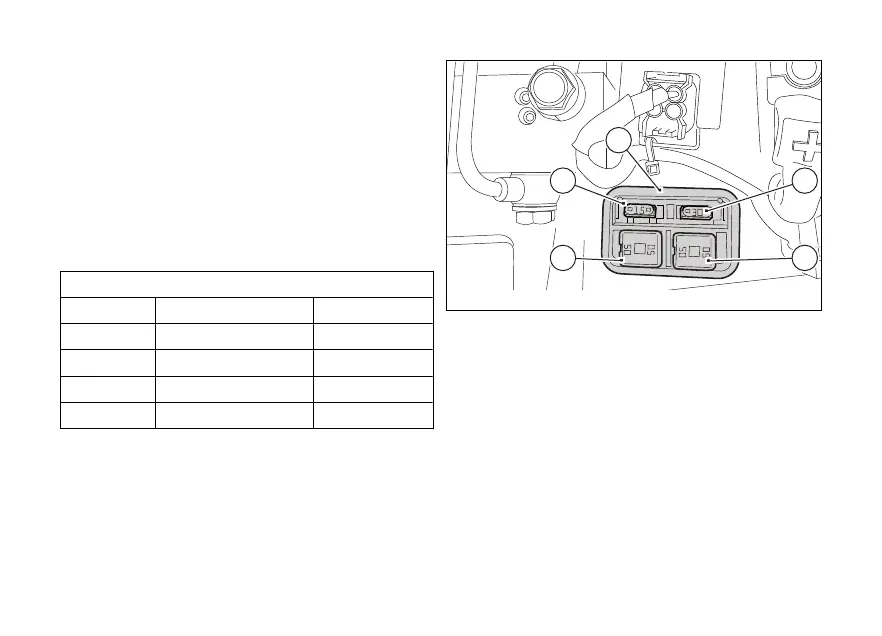

The primary fuse box (A) is located under the rider
seat. To access its fuses, it must be removed as
described in the "Seat lock" sub-section.
Fuse box (A) key
Pos El. item Rat.
1 (Master fuse) System 50 A
2 (Master fuse) Spare 50A
3 +ABS 1 30A
4 +ABS 2 15A
Fig 309
