Seat lock
Opening
the key (1) in the lock, turn clockwise while
pressing down at the latch to help release the pin.
Remove the seat (2) pulling it backwards until sliding
it out of the front retainers.
Closing
Make sure that all elements are correctly positioned
and fastened to the under the seat.
Slide the front end (A) of the seat
underneath the retainer (B) of the frame
Press on seat (2) rear end until locking latch snaps.
Make sure the seat is safely secured to the frame and
remove the key (1) from the lock.

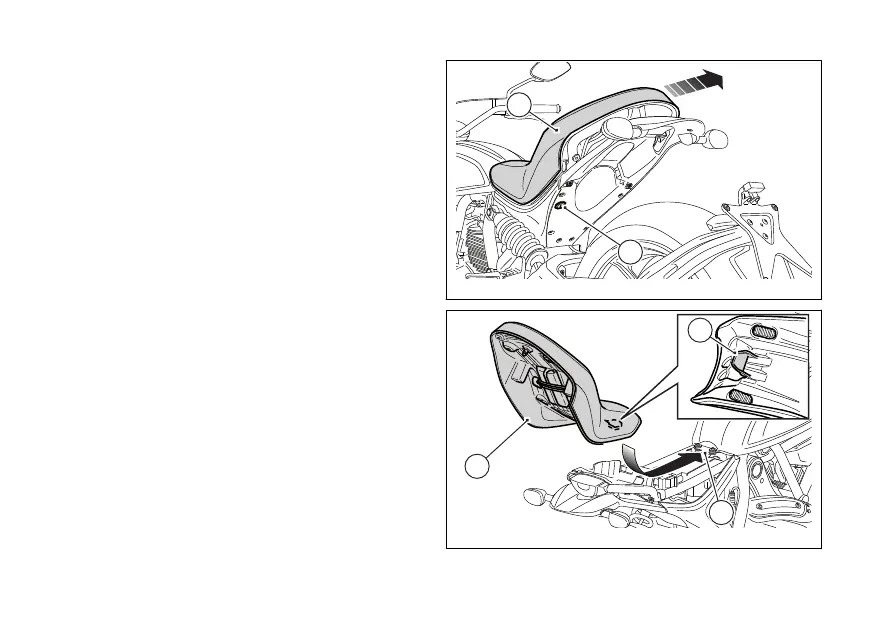

Fig 7
