Document feed direction

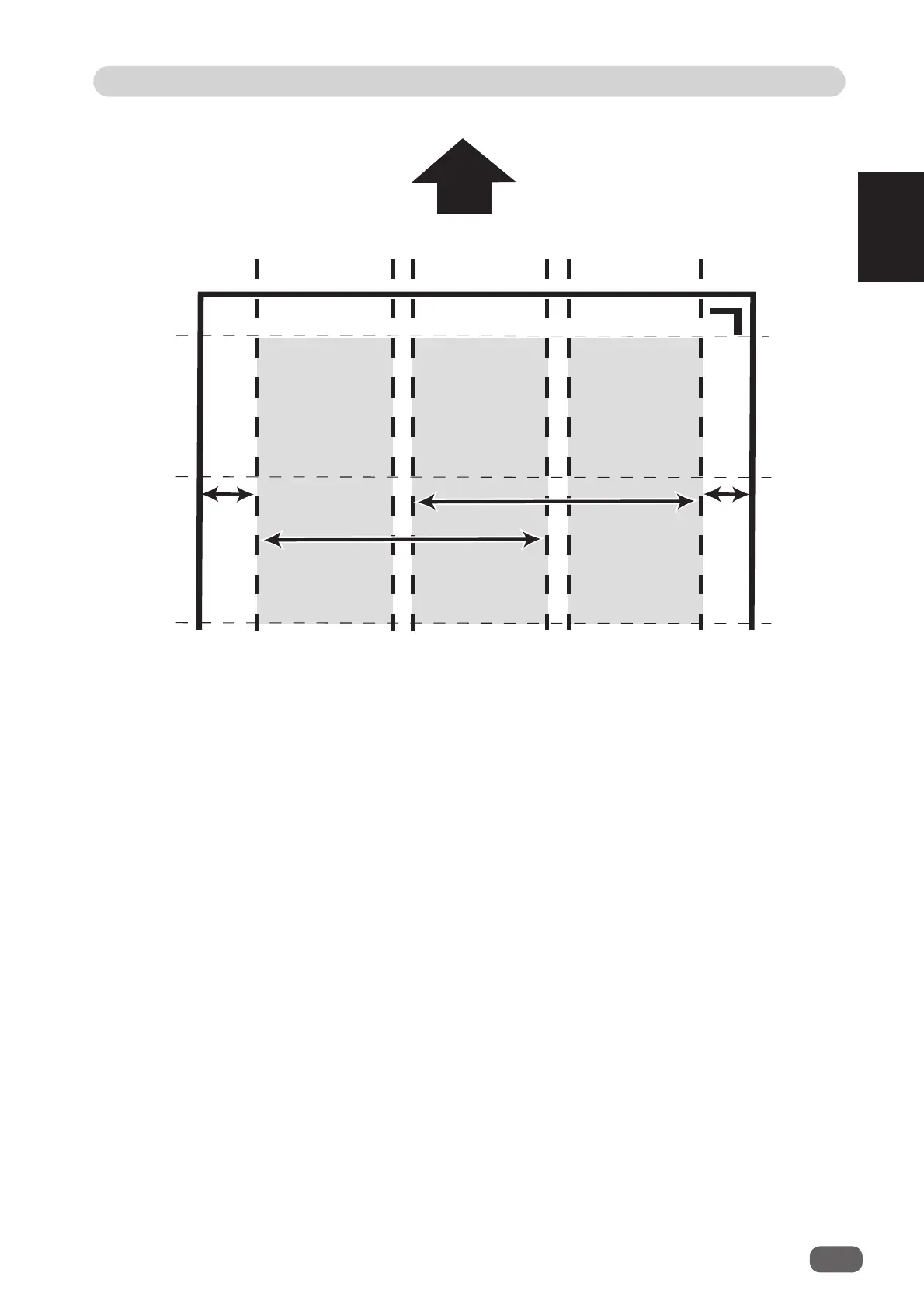

Slit 2 Slit 4 Slit 6 Slit 5 Slit 3 Slit 1
2
4.6
3.5 1
Moving range of the slitter
1. Moving range of the slitter 1
3.2 to 55.0 mm (The width stands at 0 when it is not set.)
2. Moving range of the slitter 2
Width of document-(3.2 to 55.0) mm (The width stands at 0 when it is not set.)
3. Moving range of the slitter 3
48.0 to (Width of document-48) mm (The width stands at 0 when it is not set.)
* However, a 48 mm or wider distance is required between input values of the Slitter 3 and
the Slitter 4.
4. Moving range of the slitter 4
48.0 to (Width of document-48.0) mm (The width stands at 0 when it is not set.)
* However, a 48 mm or wider distance is required between input values of the Slitter 3 and
the Slitter 4.
5. Moving range of the slitter 5
48.0 to (Width of document-48.0) mm (The width stands at 0 when it is not set.)
* However, a 48 mm or wider distance is required between input values of the Slitter 5 and
the Slitter 6.
* However, a 5 mm or more difference is required between input values of the slitter 3 and
slitter 5.
6. Moving range of the slitter 6
48.0 to (Width of document-48.0) mm (The width stands at 0 when it is not set.)
* However, a 48 mm or wider distance is required between input values of the Slitter 5 and
the Slitter 6.
* However, a 5 mm or more difference is required between input values of the slitter 4 and
slitter 6.
* Limitation of the range for each slitter varies by the other slitter’s input values.
* The gutter defl ector may not be able to drop the margins when the input value of each slitter
is 55.0–60.0 mm.
