14. PAGE ORDER AND DIRECTION OF PAPER ON THE PAPER FEED TRAY
14-1. Paper Stacked on Paper Feed Tray A
(1) When saddle-stapling/folding or center-folding paper in the downstream processing unit

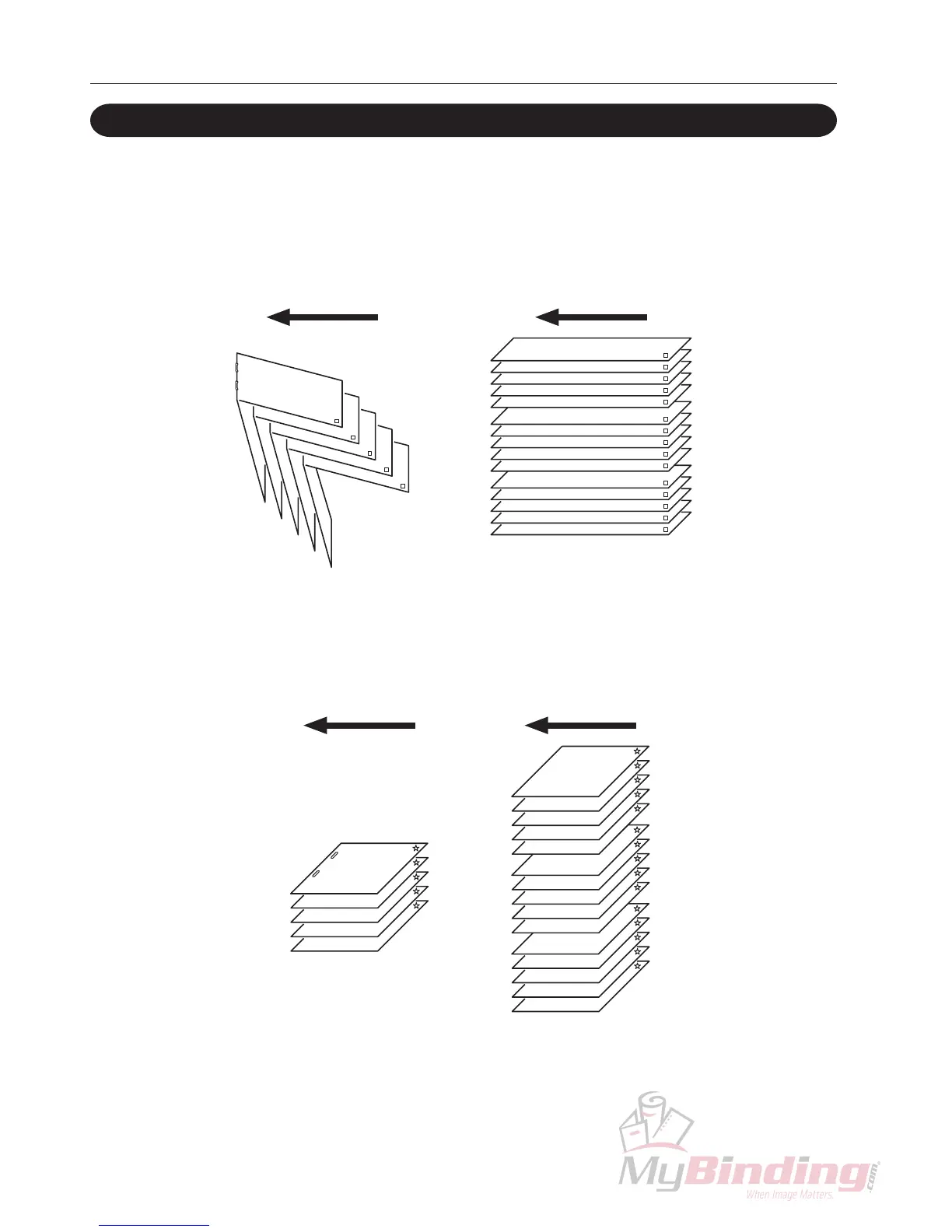

Stack paper which has been collated in order on the paper feed tray A. Stack the paper in the order
and direction shown in the figure.
Proceeding direction in
downstream processing unit
Order and direction of paper
stacked on paper feed tray A
Paper feed direction
(2) When side-stapling or corner-stapling in the downstream processing unit
Proceeding direction in
downstream processing unit
Order and direction of paper
stacked on paper feed tray A
Paper feed direction
