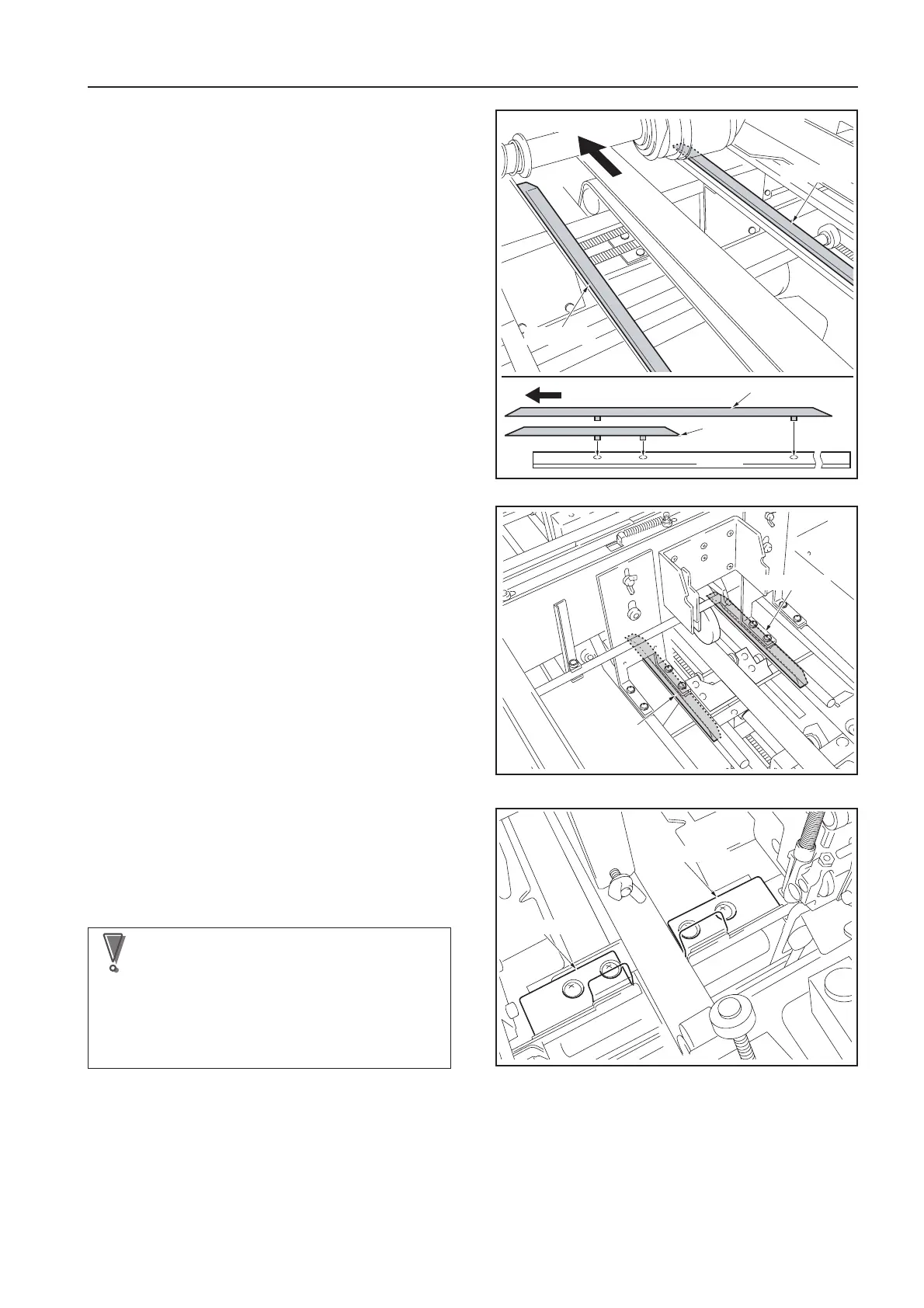

8. NO-STITCHING FOLDING PROCEDURE
Belt guide L
Paper direction
Paper direction
Belt guide L
Belt guide L
Belt guide S
Attach the belt guide L or S.
If the paper length is more than 170 mm and less
than 297 mm, use belt guide S. If more than 297
mm to 500 mm, use belt guide L.
Belt guide M
Belt guide M
Filmed guide R
Filmed guide L
Attach belt guide M.
Attach filmed guides R and L.
NoteNote
Belt guides L, S, and M can be used for paper
width above 190 mm. They cannot be used for
paper less than 190 mm.
After use, remove the belt guide kit and return
it to its original state.
Do not use it for side-stitching and corner-
stitching.
