9. VARIOUS SETTINGS

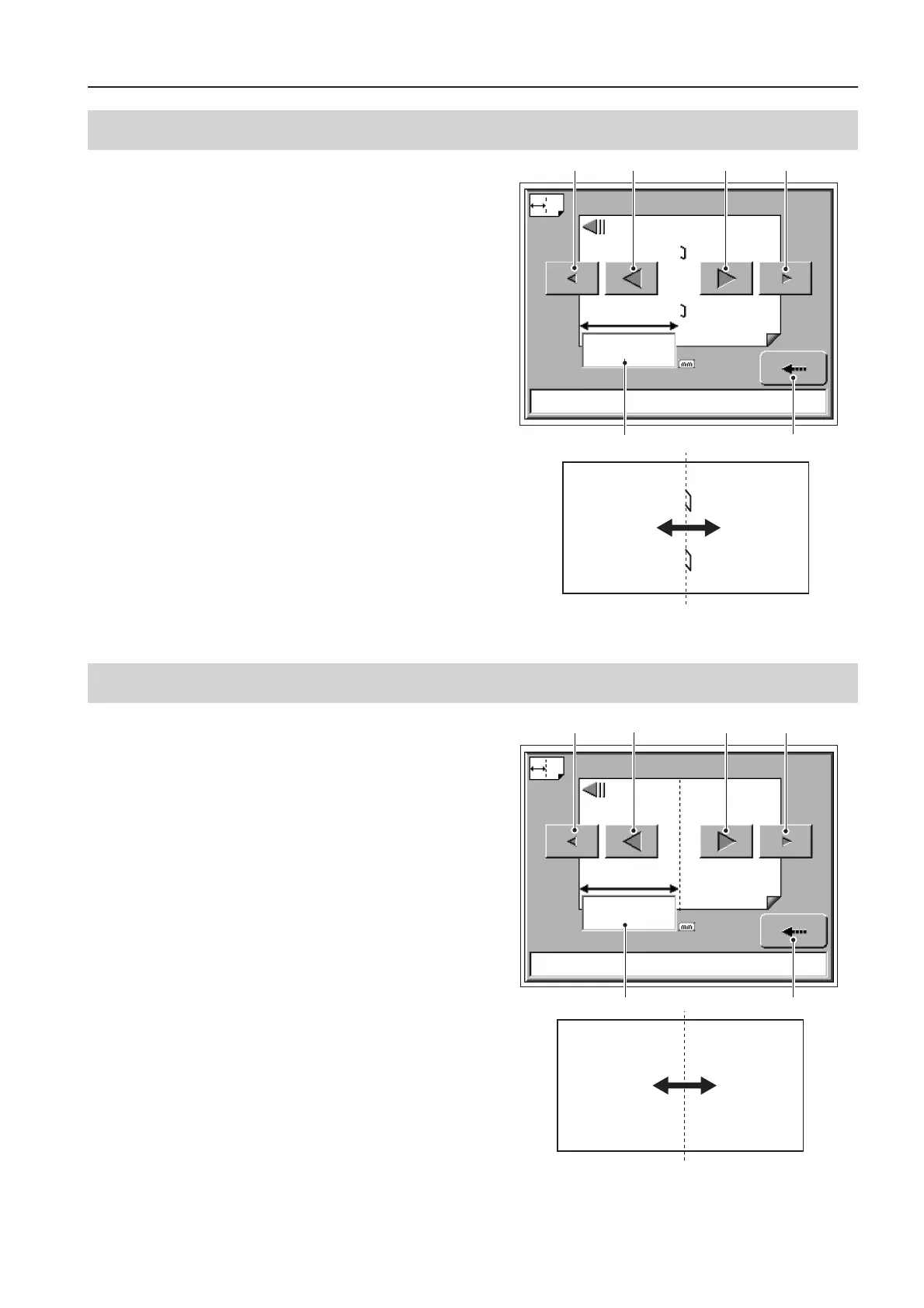

❊ Stitching position fine adjustment screen
210. 0
1
5
2
3
4
Back key
Leading edge
Front
Back
Stitching position
❊ Folding position fine adjustment screen
Press the [Fold position fine adjustment key].
The folding stopper and folding back guide are moved to
finely adjust the folding position.
They can be moved within ±5 mm/±0.20 inch from the
position set at the memory number.
To move outside this range, change the setting of the
stitching position of the memory number, and perform the
size change procedure.
1
Length from paper leading edge to folding position.
(A3/LGR example)
2
Folding position moves forward by about 0.1 mm/0.004
inch.
3
Folding position moves forward by about 1 mm/0.04
inch.
4
Folding position moves backward by about 1 mm/0.04
inch.
5
Folding position moves backward by about 0.1 mm/
0.004 inch.
Pressing the [Back key] returns to the fine adjustment
menu.
210. 0
1
5
2
3
4
Back key
Folding position
Leading edge
Front
Back
Press the [Stitch position fine adjustment key].
The saddle stitching stopper and back jogger are moved
to finely adjust the stitching position.
They can be moved within ±5 mm/±0.20 inch from the
position set at the memory number.
To move outside this range, change the setting of the
stitching position of the memory number, and perform the
size change procedure.
1
Length from paper leading edge to stitching position.
(A3/LGR example)
2
Stitching position moves forward by about 0.1 mm/
0.004 inch.
3
Stitching position moves forward by about 1 mm/0.04
inch.
4
Stitching position moves backward by about 1 mm/
0.04 inch.
5
Stitching position moves backward by about 0.1 mm/
0.004 inch.
Pressing the [Back key] returns to the fine adjustment
menu.
