9. VARIOUS SETTINGS

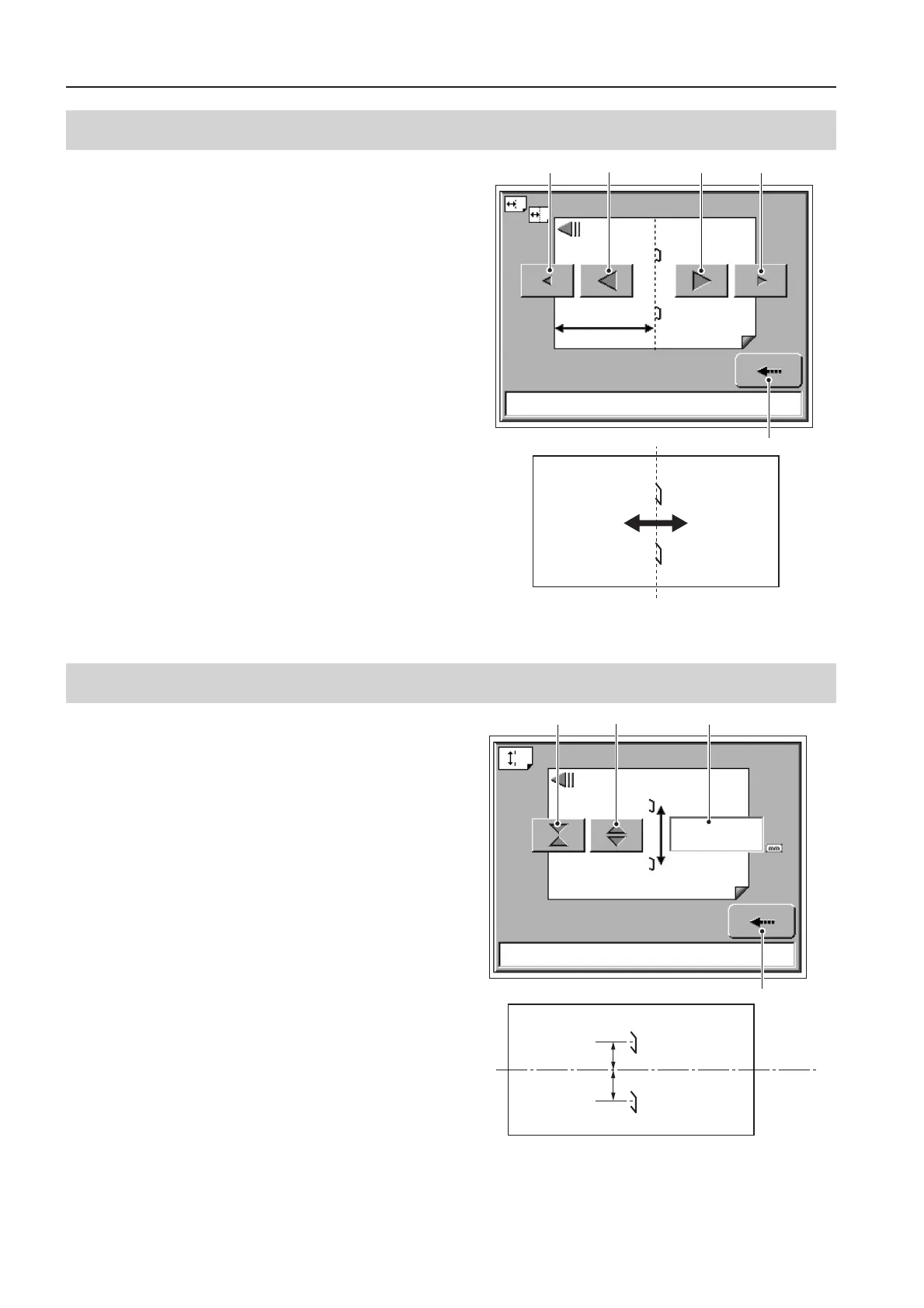

❊ Stitching/folding fine adjustment screen
Press the [Stitch Fold position fine adjustment key].
The saddle stitching stopper, back jogger, folding stopper,
and folding back guide are moved all together at the same
time to finely adjust the stitching/folding position.
They can be moved within ±5 mm/±0.20 inch from the
position set at the memory number.
To move outside this range, change the setting of the
stitching position of the memory number, and perform the
size change procedure.
1
Stitching/folding position moves forward by about 0.1
mm/0.004 inch together.
2
Stitching/folding position moves forward by about 1
mm/0.04 inch together.
3
Stitching/folding position moves backward by about 1
mm (0.04 inch).
4
Stitching/folding position moves backward by about 0.1
mm (0.004 inch).
Pressing the [Back key] returns to the fine adjustment
menu.
4
1
2
3
Back key
Stitching/folding position
Leading edge
Front
Back
Press the [Stitching Width fine adjustment key].
Move the position of the stitcher to finely adjust the
stitching width.
Stitching width is the length between the centers of two
stitches. The stitching positions are symmetrical with the
paper width as the center.
The stitcher can be moved within ±5 mm/±0.20 inch from
the position set at the memory number.
To move outside this range, change the setting of the
stitching position of the memory number, and perform the
size change procedure.
1
Stitching width length (A3/LGR example)
2
Stitching width is about 1 mm/0.04inch narrower.
3
Stitching width is about 1 mm/0.04inch wider.
Pressing the [Back key] returns to the fine adjustment
menu.
❊ Stitching width fine adjustment screen
148. 5
2
3
1
Back key
Center of
paper
AB
A=B
