D-LX 201/721
5.6 Conformity
The flame monitor has been developed, manufactured, tested and documented in
conformity with the applicable safety standards. Therefore, when the handling regula-
tions and safety-related instructions described for configuration, installation, desig-
nated operation and maintenance are observed, the device does not normally present
any risks of material damage or to human health.
The flame monitor also offers a high level of security and availability due to the use of
two microprocessors running in parallel, with the corresponding software and hard-
ware. The device hardware is designed in accordance with the EC Directive on elec-
tromagnetic compatibility (EMC).
5.7 Name of the product
D-22453 Hamburg
www.durag.de
D-LX 201 UA-C1/P2/0000/MP3
S/N: 1234567 IP65 Dat.: 13.10.15
U: 24Vdc/5W
-40...+85°C
Made in Germany
P/N: 111222
4-20 mA
Fuse F1: MST 250, 500 mA slow
Prod-ID-No: CE-0085BU0114
FFDT: (A) 1s, (B) 1s
0085
1 2
5
6
7
8
9
10
11
12
13
15
16
14
3
4
1
Manufacturer
9
IP code
2
Manufacturer address
10
CE mark, examining body (no.)
3
2D code (for internal purposes)
11
Product ID number (certificate no.)
4
Item number (order no.)
12
Flame relay fuse
5
Year of production (manufacture
date)
13
Current FFDT setting (Flame Fail-
ure Detection Time)
6
Current analogue output setting
14
Necessary device voltage/output
7
Ambient temperature
15
Device type serial number
8
Before starting any work, read the
operating manual!

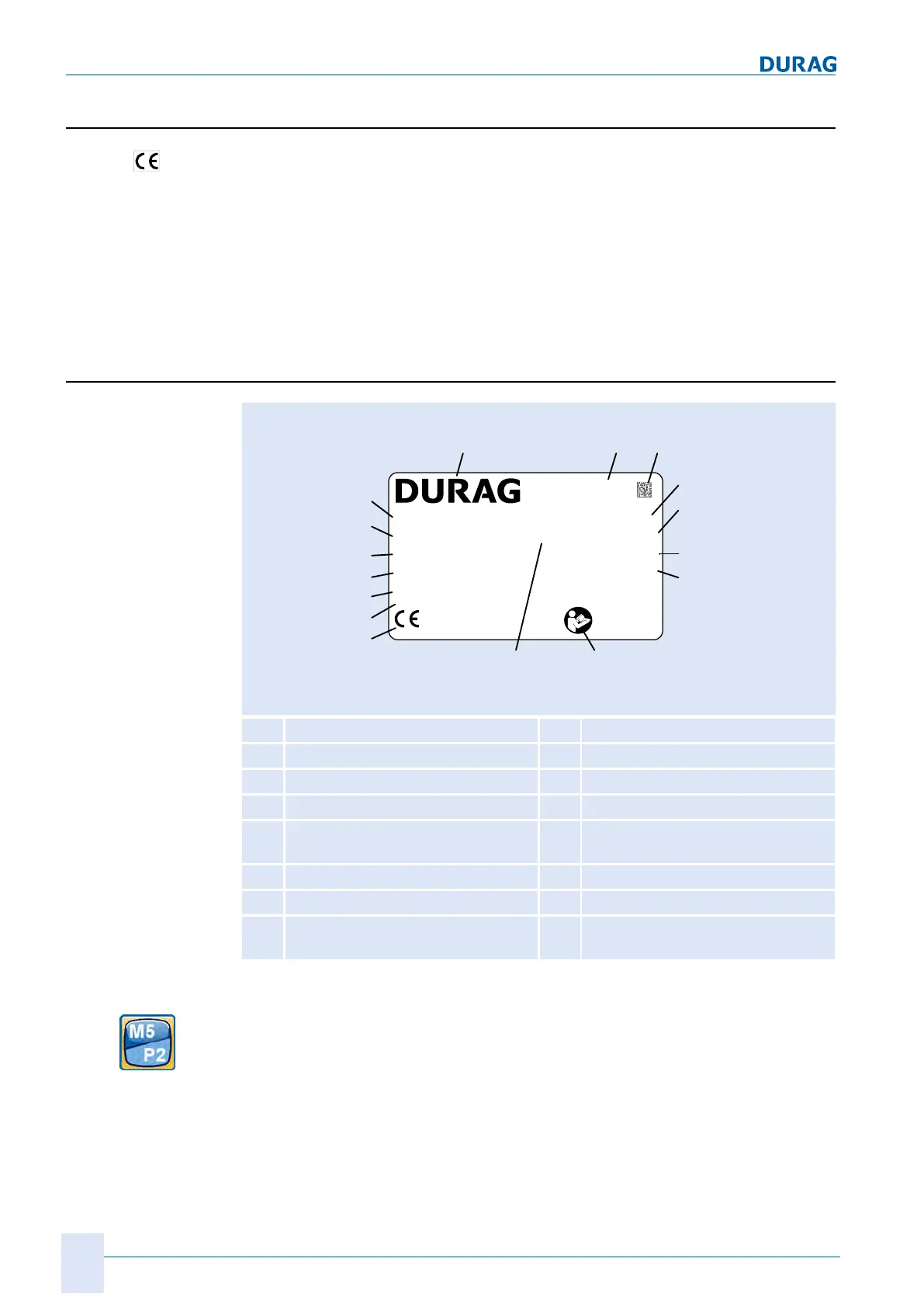

Fig.5.1: Type label (example)
The type label is located on the bottom of the housing:
