5 | Product description
D-LX 201/721
33

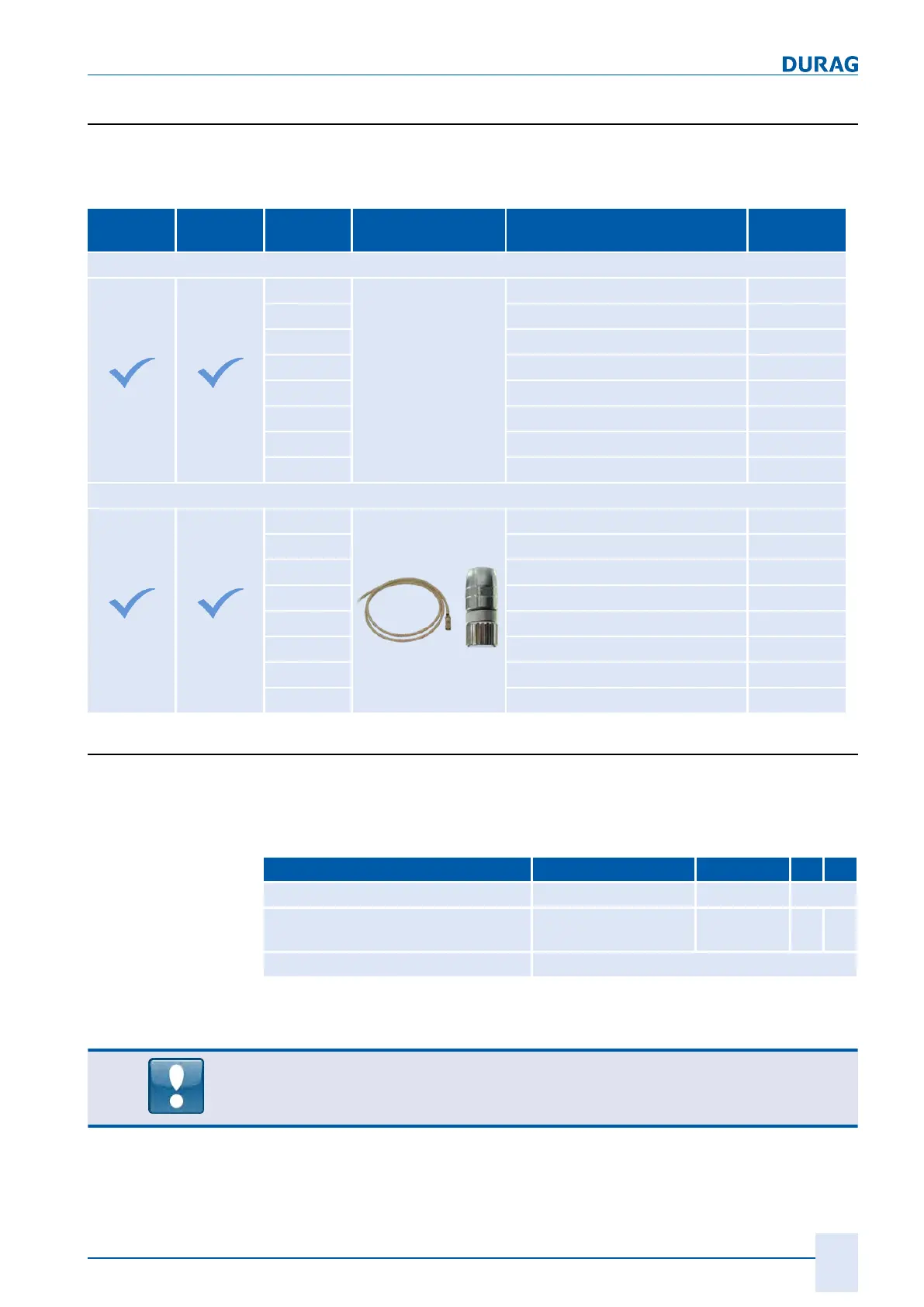

5.2.1 Connecting cable
Devices with /MP3 at the end of the product name require a connecting cable with a
plug connector. All other devices are supplied pre-wired, with connecting cable and
cable gland. Different cable lengths are offered for the two different connection types:
D-LX 200
D-LX 201
D-LX 720
D-LX 721
Item no. Figure Order code Length in m
Connecting cable (PVC, screened, with cable gland)
1 114 180
./.
D-LX 200 CBL-V1C-PCG-00 2
1 115 730 D-LX 200 CBL-V1C-PCG-03 3
1 115 064 D-LX 200 CBL-V1C-PCG-05 5
1 114 746 D-LX 200 CBL-V1C-PCG-10 10
1 115 436 D-LX 200 CBL-V1C-PCG-15 15
1 116 771 D-LX 200 CBL-V1C-PCG-20 20
1 115 437 D-LX 200 CBL-V1C-PCG-25 25
1 115 944 D-LX 200 CBL-V1C-PCG-30 30
Connecting cable for /MP3 variants (PVC, screened, with metal plug connector)
1 117 680 D-LX 200 CBL-V1C-MP3-00 2
1 117 703 D-LX 200 CBL-V1C-MP3-03 3
1 117 704 D-LX 200 CBL-V1C-MP3-05 5
1 117 705 D-LX 200 CBL-V1C-MP3-10 10
1 117 706 D-LX 200 CBL-V1C-MP3-15 15
1 117 707 D-LX 200 CBL-V1C-MP3-20 20
1 117 708 D-LX 200 CBL-V1C-MP3-25 25
1 117 709 D-LX 200 CBL-V1C-MP3-30 30
5.2.2 Factory settings
The compact flame monitor can be supplied with the settings specified in the following
table. If no particular specifications are entered with the order, the flame monitor will
be supplied with the factory settings. These settings must only be modified in the fact-
ory, and must be specified on the type label.
Factory settings
Analogue output "flame intensity" 4-20 mA 0-20 mA
Flame Failure Detection Time (FFDT
[}115] ) in s
1 2 3 5
Possible adjustment values
Table5.1: Factory settings
With the FM-approved versions D-LX *** ***-H*and D-LX *** ***-I*, the maximum
permissible Flame Failure Detection Time (FFDT) is 3 secs, i.e. the 5-sec setting must
not be used. The FM regulations stipulate a maximum FFDT of 4 secs.
