6 | Configuration and function
46
D-LX 201/721
6.2.1
D-LX 201 with housing M5/P2
1
Middle part
2
Seal
3
Screw M4 x 130
5
Connecting nut M72x3
6
Front part thread G 1¼", optional: (→) NPT 1¼“ female
7
M4 locking screw (screws in from the inside)
8
Cover
9
Purge air connection thread G ½", optional: (→) NPT ½" female
10
Cable gland for connecting cable
12
(optional) for /MP3 plug connector device variants
13
Plug-in cover
14
Screw M3 x 10

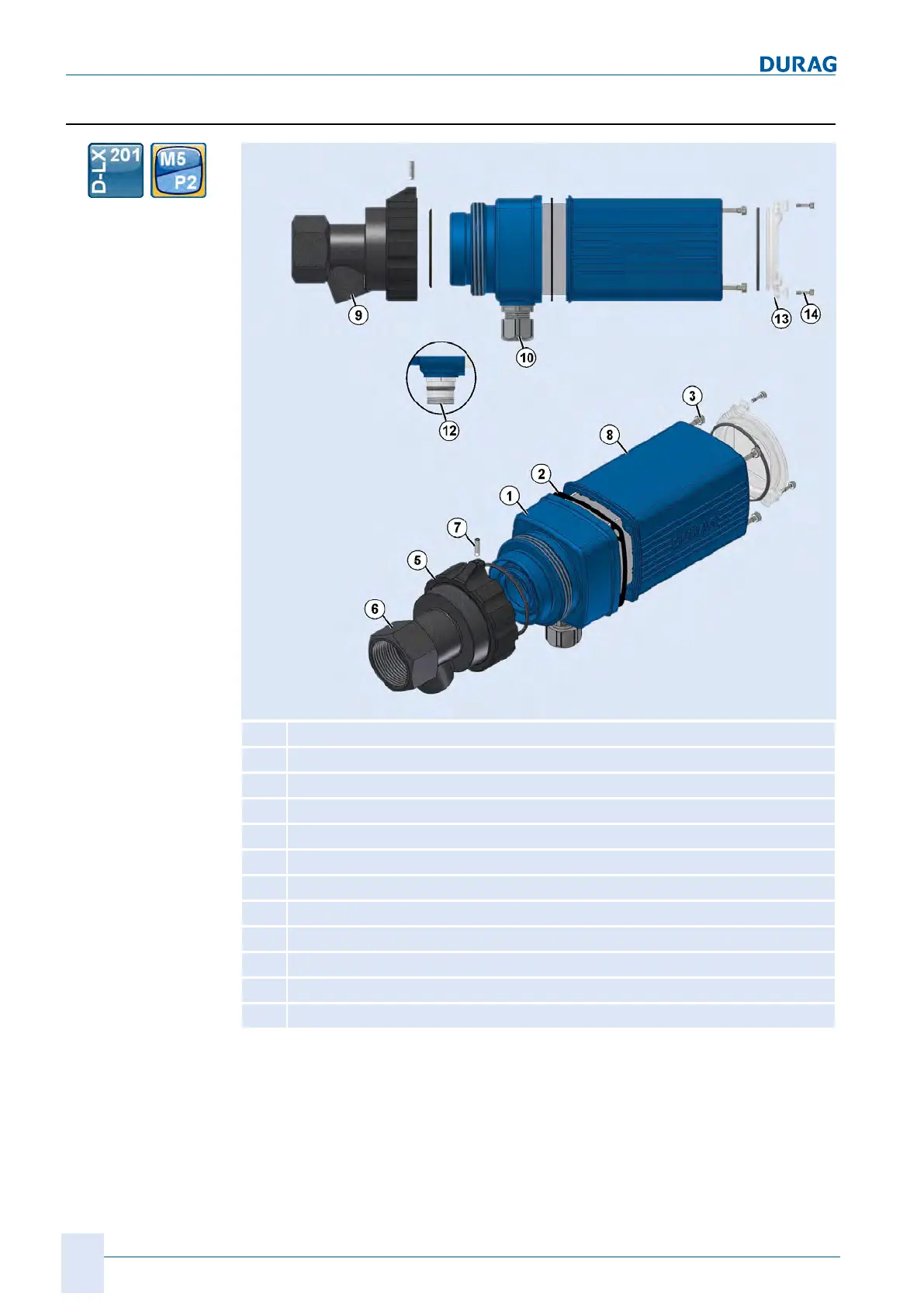

Fig.6.4: Exploded view (figure shows housing P2)
