7.3.3 Assembling winder and tray (745-35-10 A only)

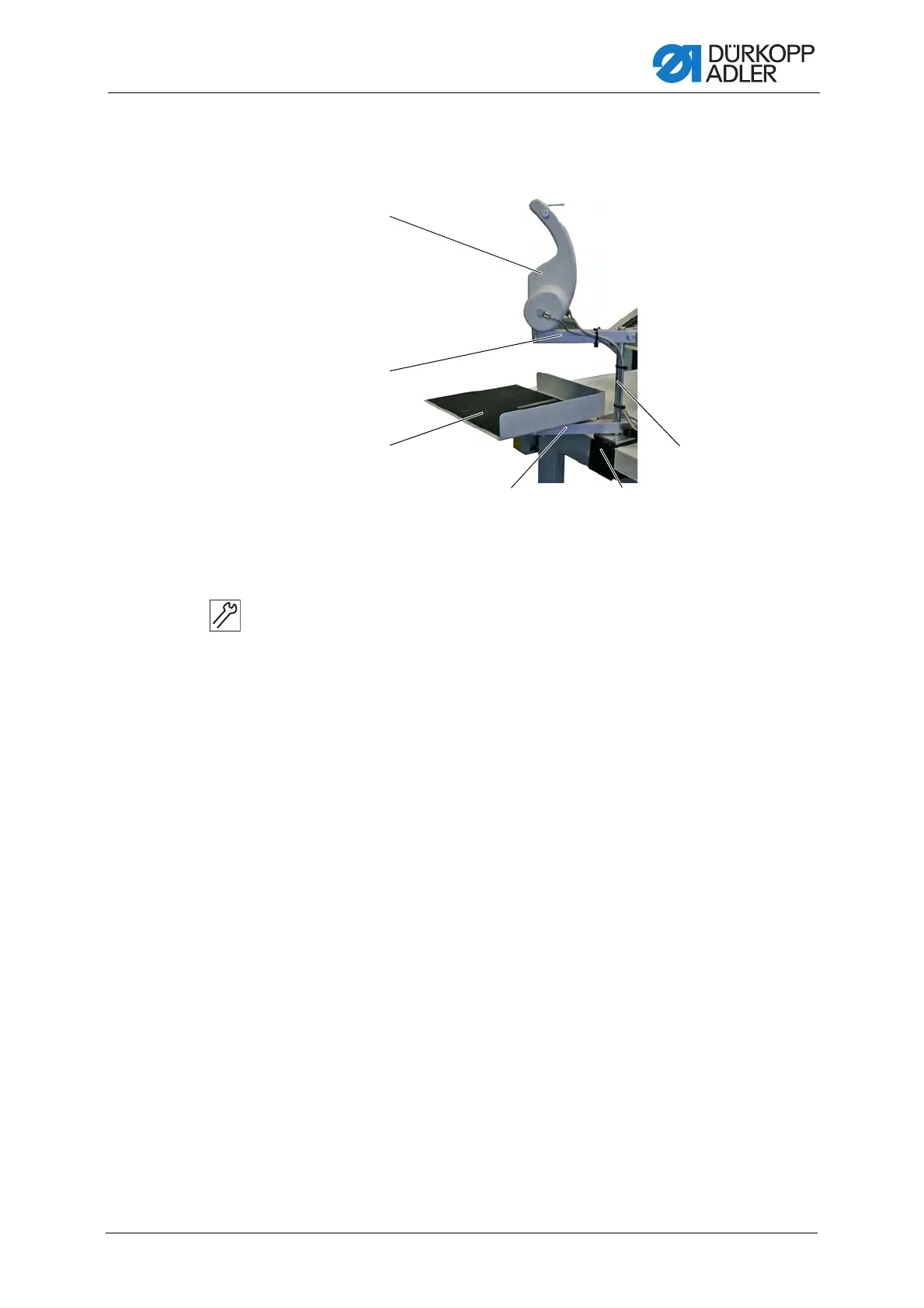

Fig. 187: Assembling winder and tray
To assemble winder and tray:
1. Slide the holder (6) on the bracket (5) onto the tabletop.
2. Assemble the bracket (5) in place on the tabletop.
3. Align arms (2) and (4).
4. Assemble the tray (3) to the arm (4).
5. Assemble the winder (1) to the arm (2).
(1) - Winder
(2) - Arm
(3) - Tray
(4) - Arm
(5) - Bracket
(6) - Holder
