DURKOPP ADLER 745-35-10 S - Connection to the In-House Vacuum System

Setup
Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017 225

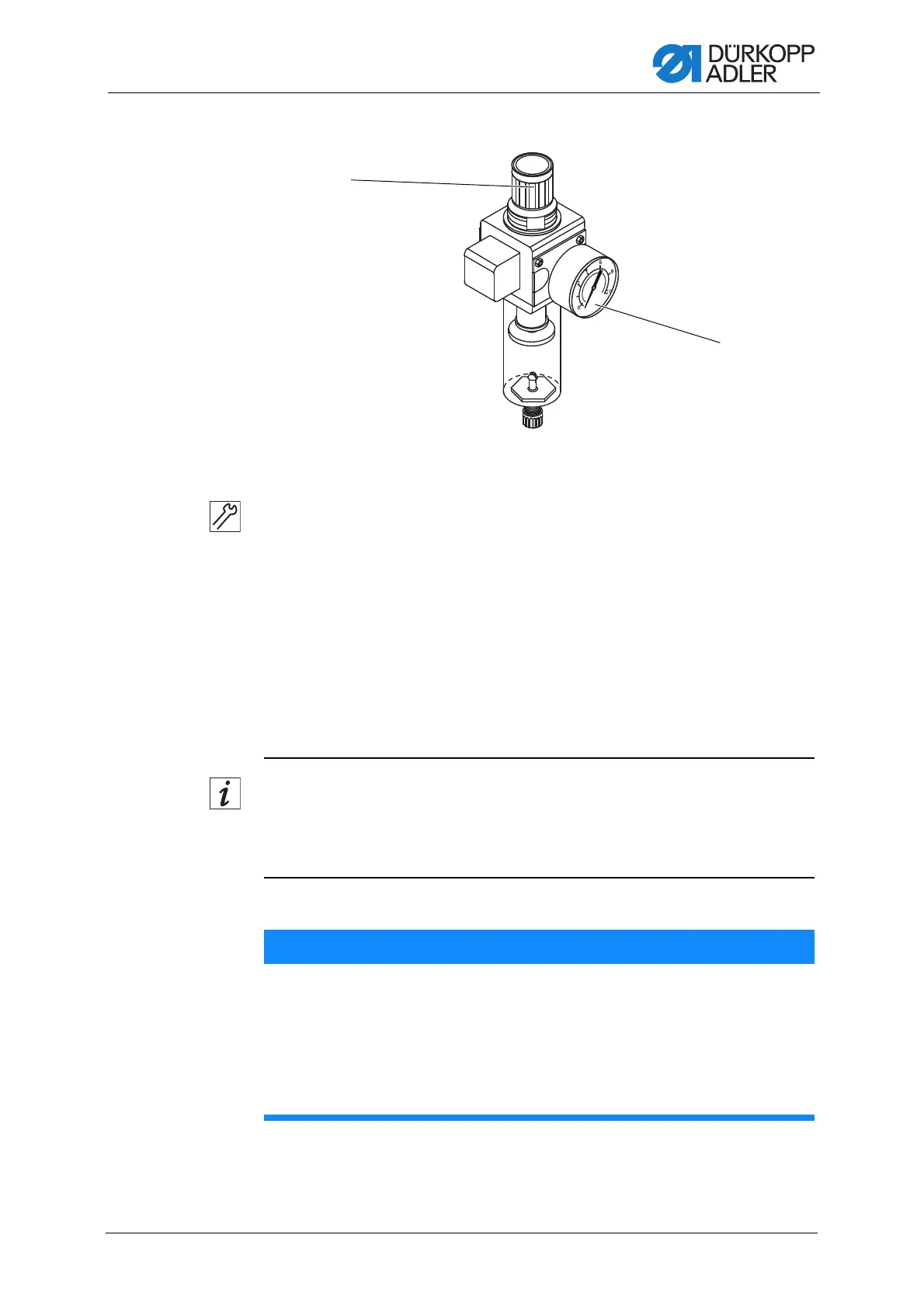

Abb. 194: Setting the operating pressure
To set the operating pressure:
1. Pull the pressure controller (1) up.
2. Turn the pressure controller until the pressure gage (2) indicates the
proper setting.
• Increase pressure = turn clockwise
• Reduce pressure = turn counterclockwise
3. Push the pressure controller (1) down.
7.6 Connection to the in-house vacuum system
Information
If no in-house vacuum system is available, you will have to order the vac-
uum device in addition. Refer to the  Additional Instructions for informa-
tion on how to connect this device.
(1) - Pressure controller (2) - Pressure gage
①
②
NOTICE
Property damage may occur!
The blower overheats.
The motor winding becomes damaged.
When mounting the vacuum device (side-channel blower), you
MUST replace the sealing ring (2) (black) with a filter ring (white).
The filter ring is included in the accessory pack.
