Operation
Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017 35
4.14 Stacker control

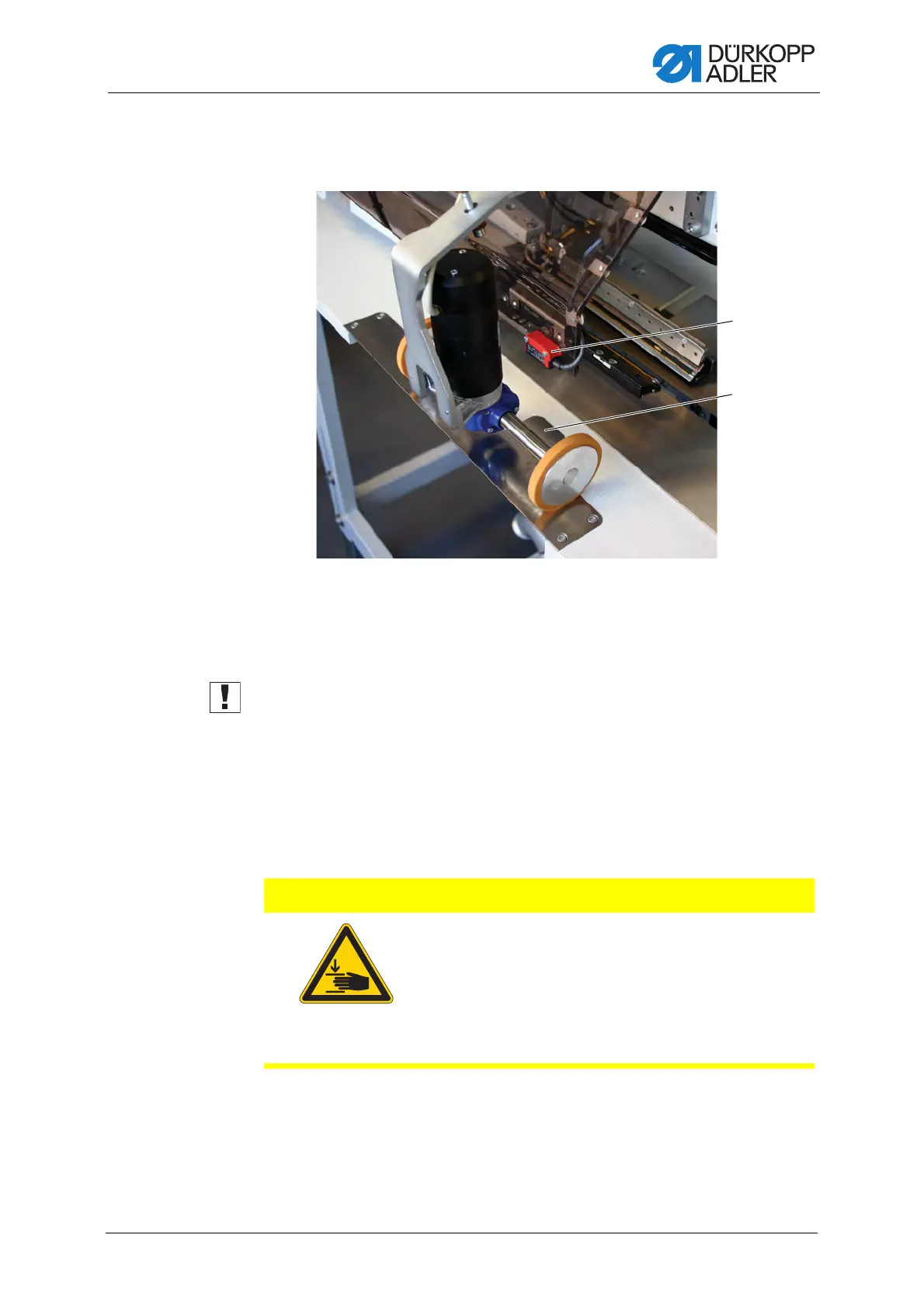

Fig. 25: Stacker control
The reflected light barrier (2) monitors how the sewn pieces are stacked
and blown out. The transport carriage is not returned until the workpiece
has been moved out correctly.
Important
For a secure function of the stacking control clean the lens of the reflected
light barrier with a soft cloth once a day.
Workpiece is not conveyed out correctly
If the workpiece is not moved out correctly, the light beam between the
reflected light barrier (2) and the reflecting sheet (1) remains interrupted.
Renewed starting is not possible.
(1) - Reflecting sheet (2) - Reflected light barrier
CAUTION
Risk of injury from moving parts!
Crushing.
Do not reach into the movement area of the
transport carriage when removing the workpiece.
Do not clean the lenses of the light barriers unless
the sewing unit is switched off.
