Operation
Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017 45
4.19.3 Roll-off device (745-35-10 A only)
The roll-off device is often used in combination with the throw-over stacker.

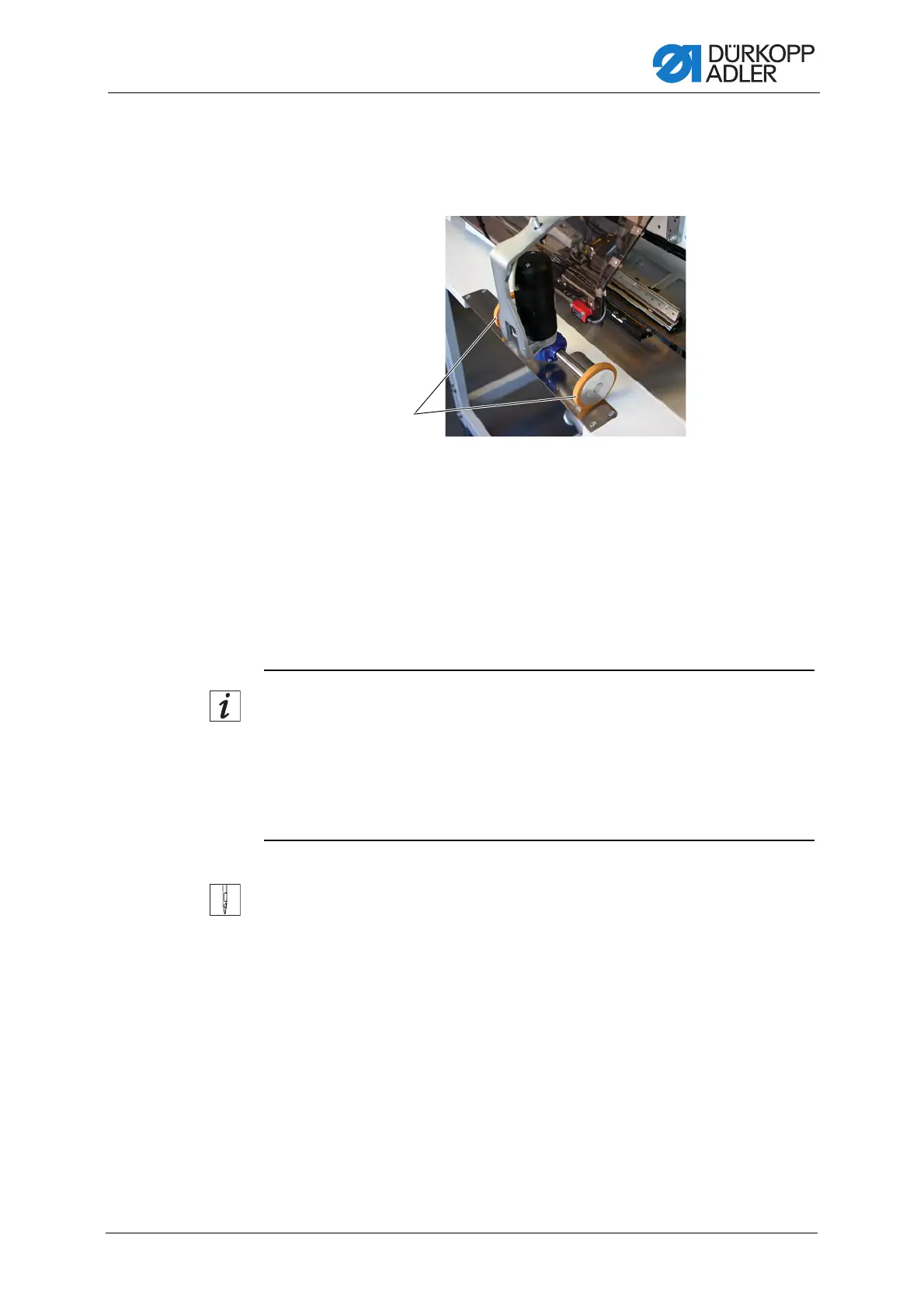

Fig. 35: Roll-off device
The transport rollers (1) convey the workpiece into the stacker opening.
• This is necessary for workpieces positioned in transverse direction
• It is also necessary for workpieces which are too short to be seized
by the throw-over stacker
• Minimum distance: 200 mm from the middle of the pocket opening
to the edge of the workpiece
Roller speed and duty cycle are set using control panel OP7000.
Information
The roll-off device serves a dual function:
• Stacker switched on: Roll-off device as stacker extension during the
production of jackets
• Roll-off device as ejector in combination with the bundle clamp during
the production of trousers
To activate the roll-off device:
1. Activate the roll-off on the control panel in menu item Machine param-
eters, ( p. 134).
The parameter signals to the control that the sewing unit is equipped
with an roll-off device.
(1) - Transport rollers
