Operation
64 Operating Instructions 745-35-10 S/745-35-10 A - 03.0 - 04/2017
Stops for manual flap feeding

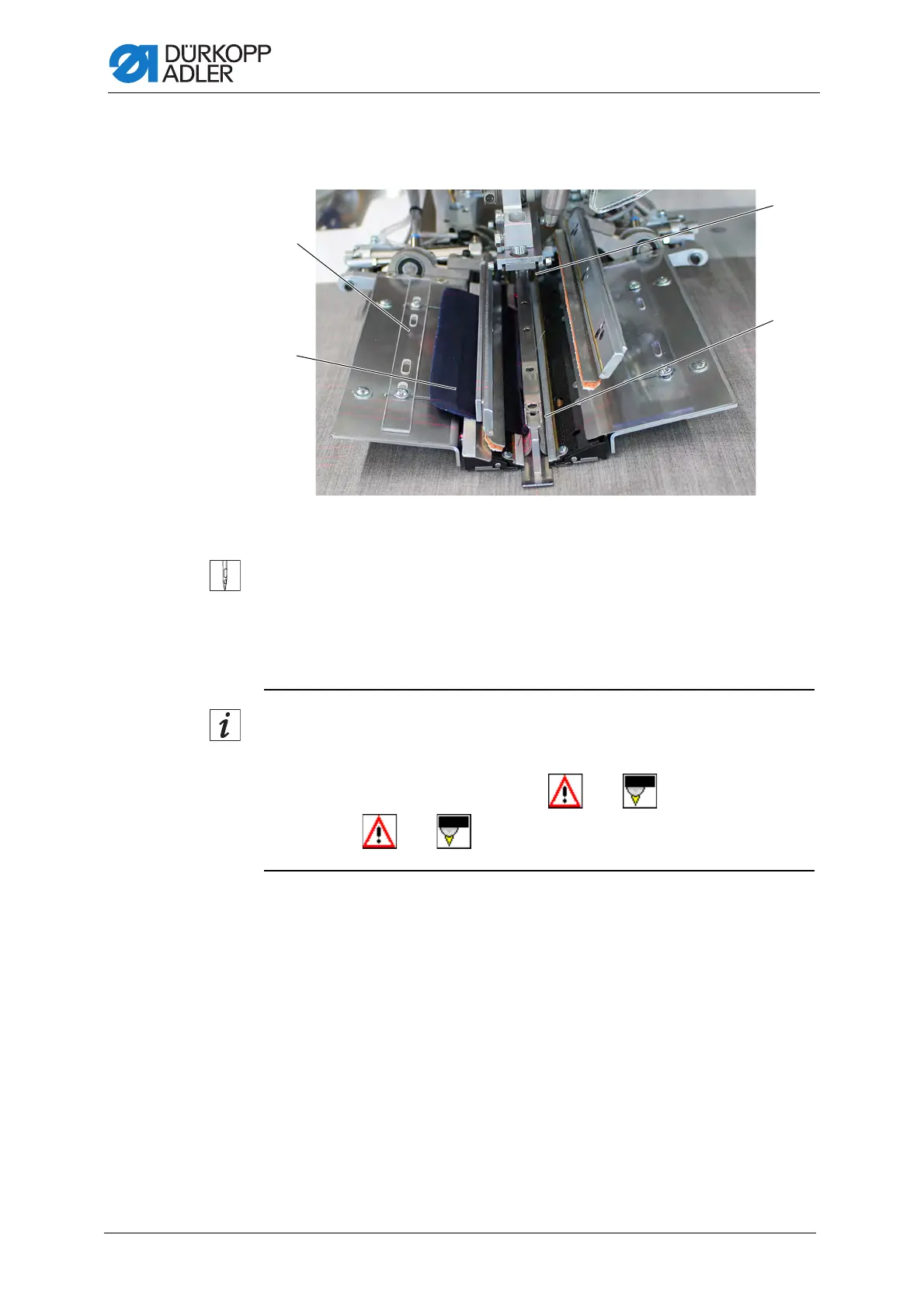

Fig. 56: Stops for manual flap feeding
To set the stop for feeding the flap manually:
1. Adjust the stops (7) and (5) on the folder according to the light spots (8)
and (3).
2. Set the sewing depth of the flap (10) by inserting the stop (9) in the
corresponding pair of slotted holes.
Information
If the flap (10) is positioned outside the dotted lines (outside of the sewing
area), the function sequence will be interrupted. The display shows the fol-
lowing error messages: Info 9721 OR
Info 9722 .
(5) - Stop
(7) - Stop
(9) - Stop
(10) - Flap
