DYNACO Slimline Series User Manual

DYNACO USA 6 ● DYNALOGIX II (DY 4000)
Slimline Series RevB.doc THE SAFEST CHOICE 29
2. Connect the grounding wire (ground wires and shield wire) to the ground terminals. See Figure 6-
3.
Ground
M2-00101 06/13/05
T1 T2 1 1 1 1 1 1A X2 X2 2
2
3 4 33 34 41 42 43 44GGG
T3

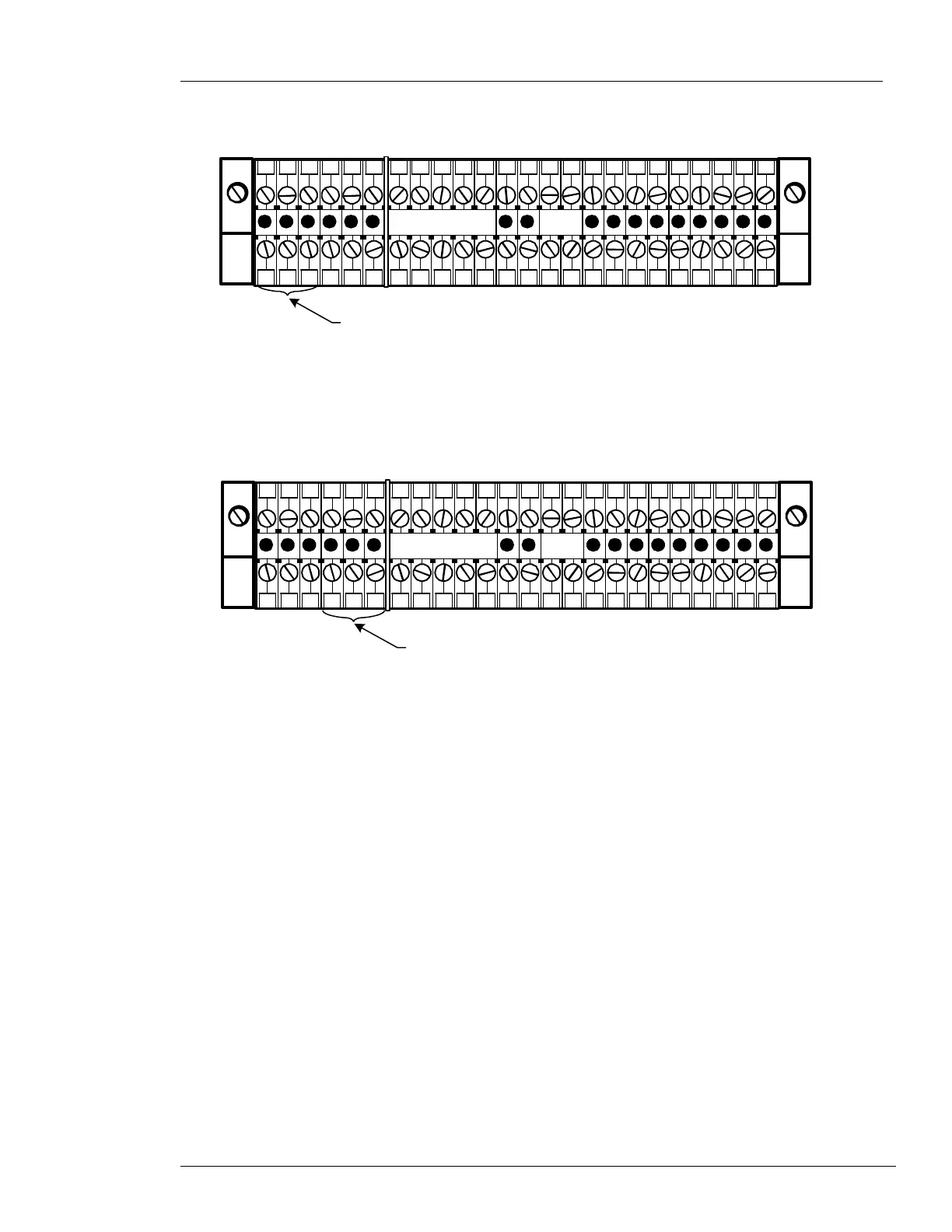

Figure 6-3: Ground Connection on Terminal Block
3. Connect the motor wires (black) to terminals T1, T2, and T3. See Figure 6-4.
Warning: Use only the motor cable provided. Do not splice the cable. Doing so will void the
warranty.
Motor Wires
M2-00102
06/13/05
T1 T2 1 1 1 1 1 1A X2 X2 2
2
3 4 33 34 41 42 43 44GGG
T3
Figure 6-4: Motor Wire Connections on Terminal Block
