Dynalink DL-WRX36 User Manual

5. SPECIFY ROUTER SETTINGS VIA WEB BROWSER
101

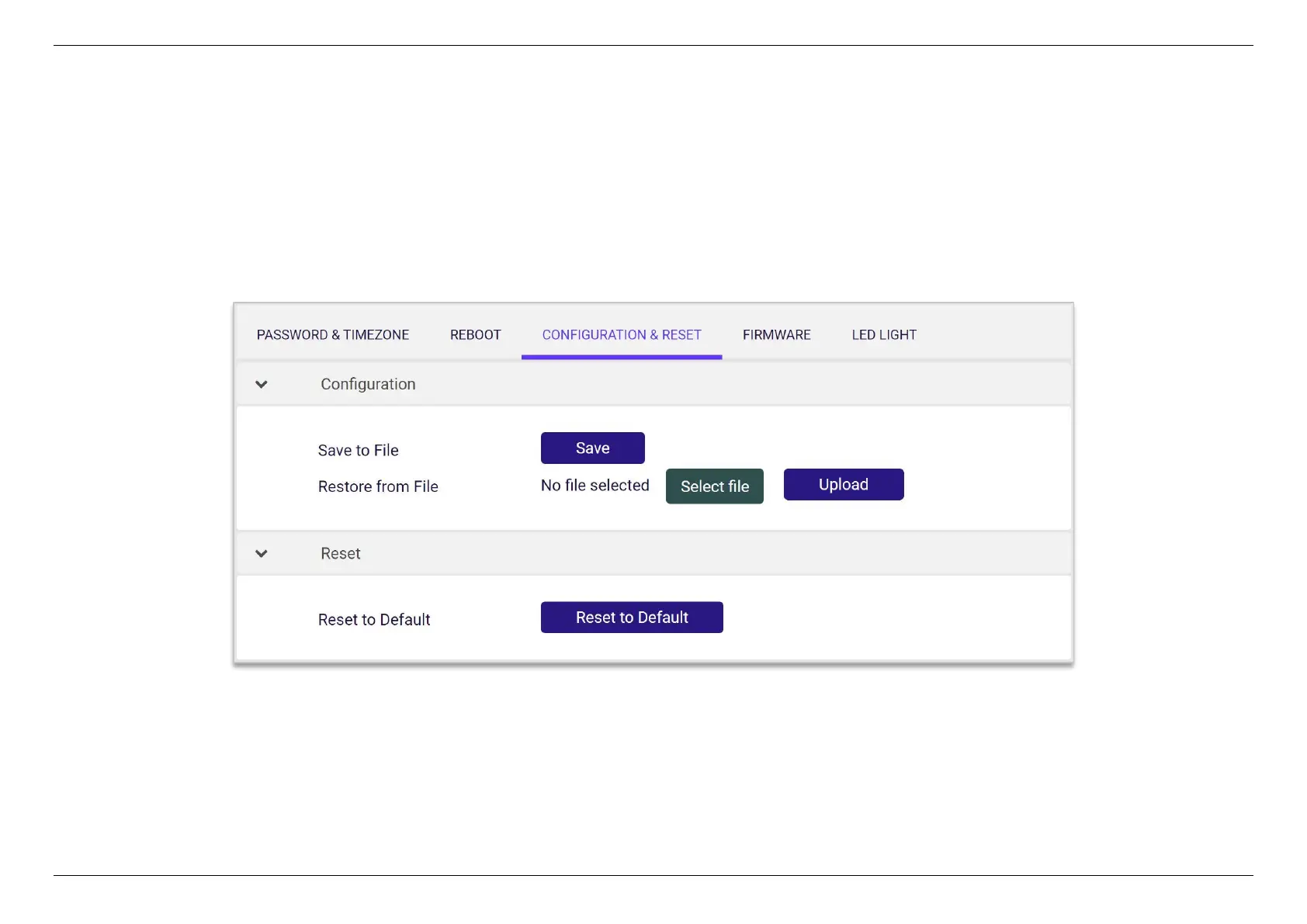

5.9.3 Configuration & Reset
The Configuration & Reset page enables you to save/upload the router’s current settings as a file to your local computer, or upload your router to
previously saved settings by loading a backed up file. You can also reset the router back to factory default settings. If the router malfunctions or is
not responding, then it is recommended that you first reboot the device (press the reset button for 1 second), and if still experiencing problems
reset the device back to its factory default settings. You can reset the router back to its default settings using the Reset button on the back of the
router (press and hold for 7+ seconds).

Dynalink DL-WRX36 Specifications

System Memory

flash memory	256 MB
RAM	1 GB DDR4

Ports & Interfaces

wireless interface	2.4GHz and 5GHz Dual-Band Concurrent
LAN ports	4 Gigabit LAN Port
WAN port	One 2.5 Gigabit WAN Port

Wireless Specifications

wireless standard	IEEE802.11a/b/g/n/ac/ax
frequency range 2.4 GHz	2.412 GHz ~ 2.4835 GHz
frequency range 5 GHz	5.15 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.85 GHz

Antenna

antenna for 2.4 GHz	4-internal
antenna for 5 GHz	4-internal
maximum output power 2.4 GHz	29 dBm
maximum output power 5 GHz	29 dBm

Power

operating voltage	12V/2.5A DC adaptor (100V~240V, 50 Hz ~ 60 Hz)
maximum power consumption	26.8 Watts

Operating Environment

operating temperature	0°C ~ 40°C
storage temperature	-40°C ~ 85°C
operating humidity	5% ~ 90% RH
storage humidity	5% ~ 95% RH

Weight and Dimensions

width	100 mm
height	230.25 mm
depth	150 mm
