Dynalink DL-WRX36 User Manual

5. SPECIFY ROUTER SETTINGS VIA WEB BROWSER
75
5.6 Security
Use the Security menu to configure various security functions if needed, including IPv4 Firewall and IPv6 Firewall.
5.6.1 Firewall IPv4

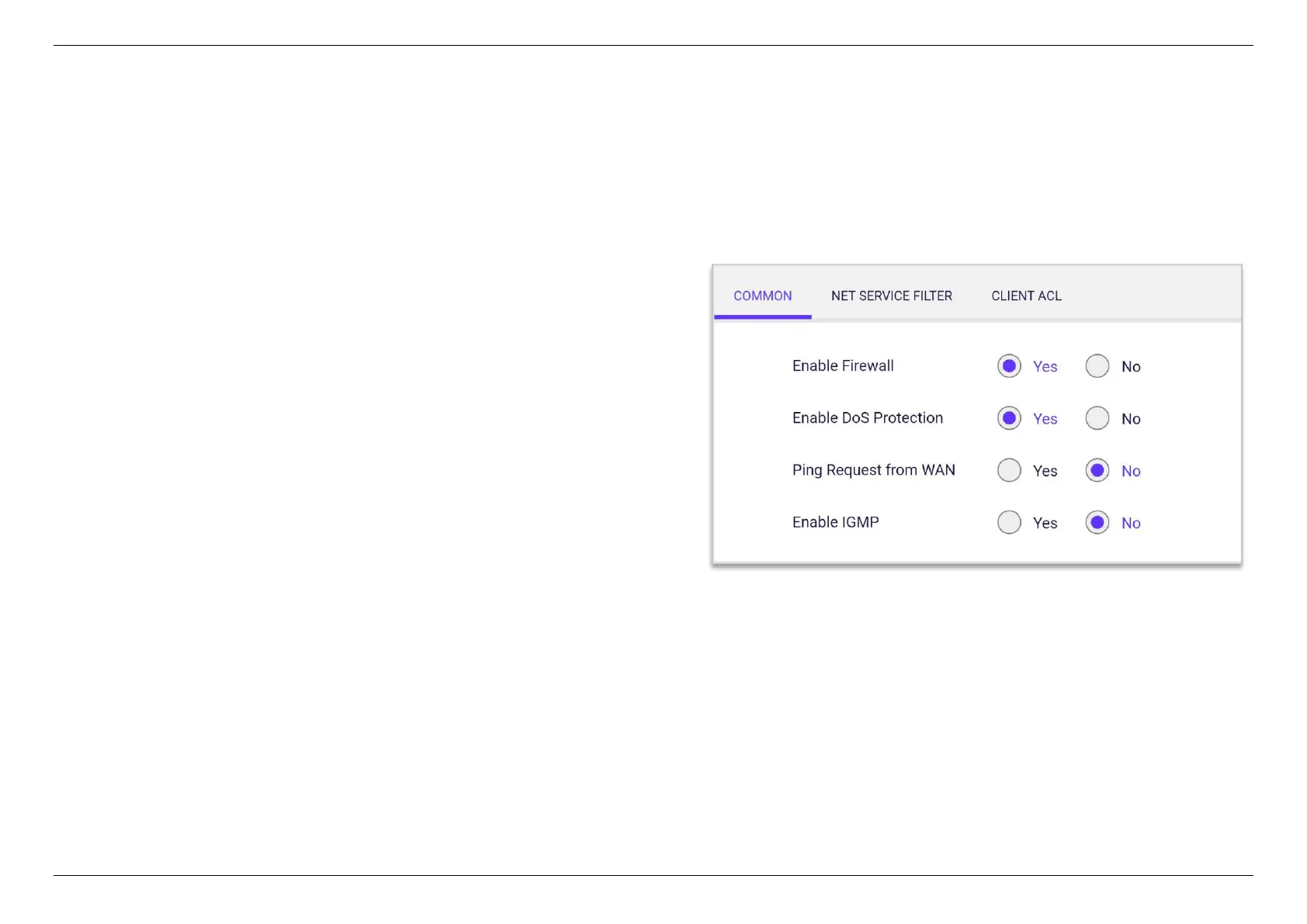

5.6.1.1 Common
 Enable Firewall- Display the status of firewall function.
 Enable DoS Protection Denial-of-Service (DoS) is a common form
of malicious attack against a network. The router’s firewall can protect
against such attacks by filtering unreasonable packets that could flood
and disable network with large amounts of traffic.
 Ping Request from WAN When inactive the feature the router will not
answer IPv4 ping requests from the Internet. This can increase
security as ping is a common method used by hackers to test
networks.
 Enable IGMP- When disable IGMP, IGMP function is disabled.

Dynalink DL-WRX36 Specifications

System Memory

flash memory	256 MB
RAM	1 GB DDR4

Ports & Interfaces

wireless interface	2.4GHz and 5GHz Dual-Band Concurrent
LAN ports	4 Gigabit LAN Port
WAN port	One 2.5 Gigabit WAN Port

Wireless Specifications

wireless standard	IEEE802.11a/b/g/n/ac/ax
frequency range 2.4 GHz	2.412 GHz ~ 2.4835 GHz
frequency range 5 GHz	5.15 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.85 GHz

Antenna

antenna for 2.4 GHz	4-internal
antenna for 5 GHz	4-internal
maximum output power 2.4 GHz	29 dBm
maximum output power 5 GHz	29 dBm

Power

operating voltage	12V/2.5A DC adaptor (100V~240V, 50 Hz ~ 60 Hz)
maximum power consumption	26.8 Watts

Operating Environment

operating temperature	0°C ~ 40°C
storage temperature	-40°C ~ 85°C
operating humidity	5% ~ 90% RH
storage humidity	5% ~ 95% RH

Weight and Dimensions

width	100 mm
height	230.25 mm
depth	150 mm
