Dynalink DL-WRX36 User Manual

5. SPECIFY ROUTER SETTINGS VIA WEB BROWSER
37

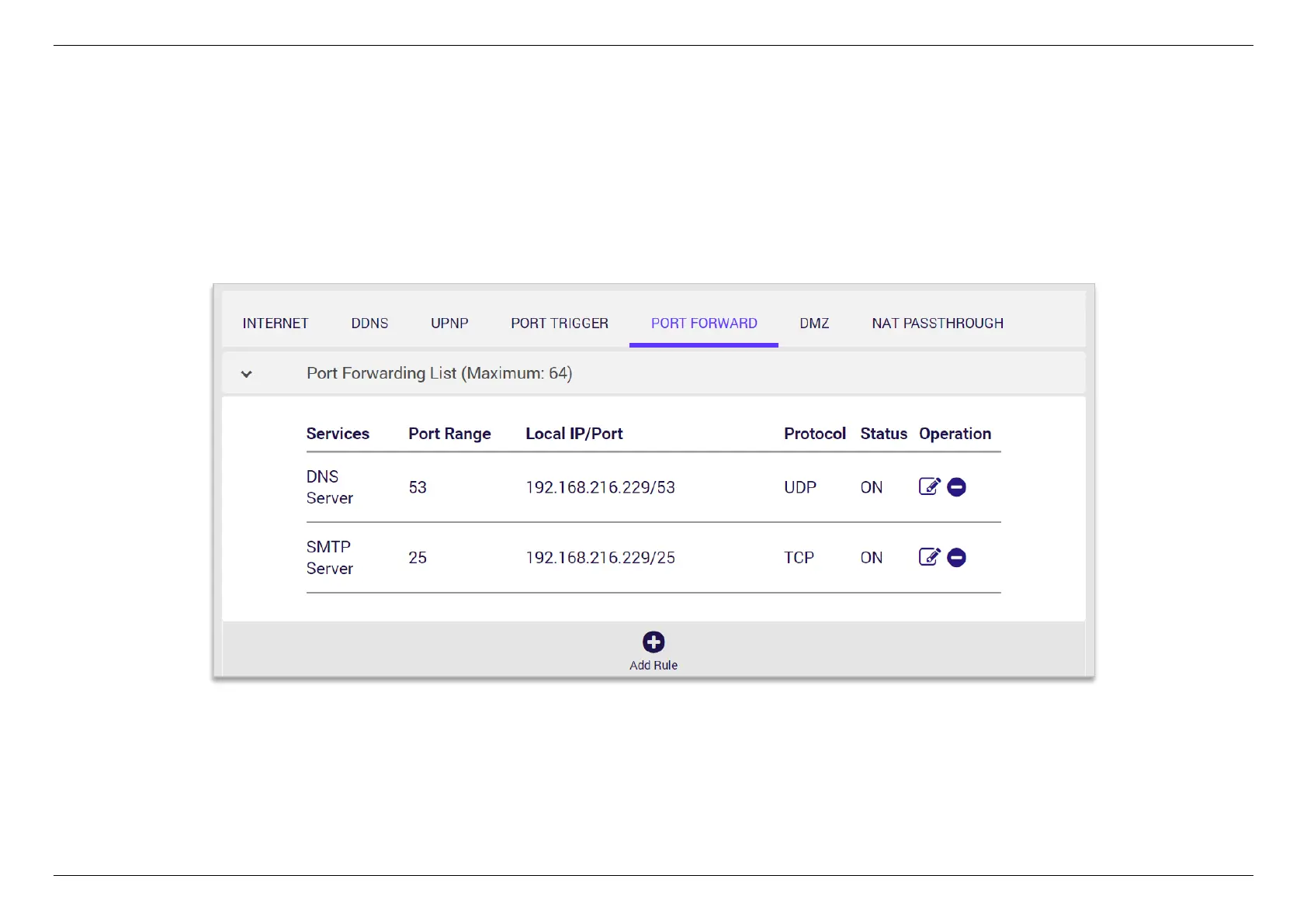

5.3.2.5 Port Forward
Port forward allows you to set up an Internet service on a local computer, without exposing the local computer to the Internet. Internet traffic directed
to a specific port or range of ports on this router is redirect to a device or devices on your local network. You can also build various sets of port
redirection, to provide various Internet services on different local computers via a single Internet IP address. It also allows PCs outside the network
to access services provided by a computer in the local network.

Dynalink DL-WRX36 Specifications

System Memory

flash memory	256 MB
RAM	1 GB DDR4

Ports & Interfaces

wireless interface	2.4GHz and 5GHz Dual-Band Concurrent
LAN ports	4 Gigabit LAN Port
WAN port	One 2.5 Gigabit WAN Port

Wireless Specifications

wireless standard	IEEE802.11a/b/g/n/ac/ax
frequency range 2.4 GHz	2.412 GHz ~ 2.4835 GHz
frequency range 5 GHz	5.15 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.85 GHz

Antenna

antenna for 2.4 GHz	4-internal
antenna for 5 GHz	4-internal
maximum output power 2.4 GHz	29 dBm
maximum output power 5 GHz	29 dBm

Power

operating voltage	12V/2.5A DC adaptor (100V~240V, 50 Hz ~ 60 Hz)
maximum power consumption	26.8 Watts

Operating Environment

operating temperature	0°C ~ 40°C
storage temperature	-40°C ~ 85°C
operating humidity	5% ~ 90% RH
storage humidity	5% ~ 95% RH

Weight and Dimensions

width	100 mm
height	230.25 mm
depth	150 mm
